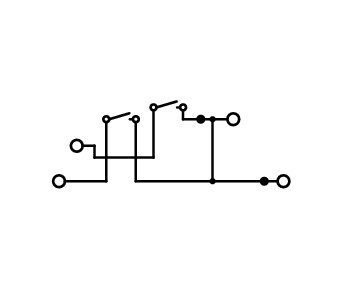

Double-deck, double-disconnect terminal block with 2 pivoting knife disconnects lower and upper decks internally commoned on right side blue
Wago

Double-deck, double-disconnect terminal block with 2 pivoting knife disconnects lower and upper decks internally commoned on right side blue

Double-deck, double-disconnect terminal block; with 2 pivoting knife disconnects; lower and upper decks internally commoned on right side; suitable for Ex i applications; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; blue

Product identifiers

SKU: 2002-2959
EAN: 4055143875653
GTIN: 4055143875653
MPN: 2002-2959

V+ Loyalty points:

1052

Price range: £ 10.23 - £ 10.43 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 42
Width 5.2
Colour Blue
Height 108
EFNA0008 V0
Rated voltage 400
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 2
Type of slitting None
Closing plate required yes
Internally connected stages no
With integrated test socket no
Type of electrical connection 2 Spring clamp connection
Connectable conductor cross section solid-core 0.75 - 4
Connectable conductor cross section fine-strand with cable end sleeve 0.75 - 2.5
