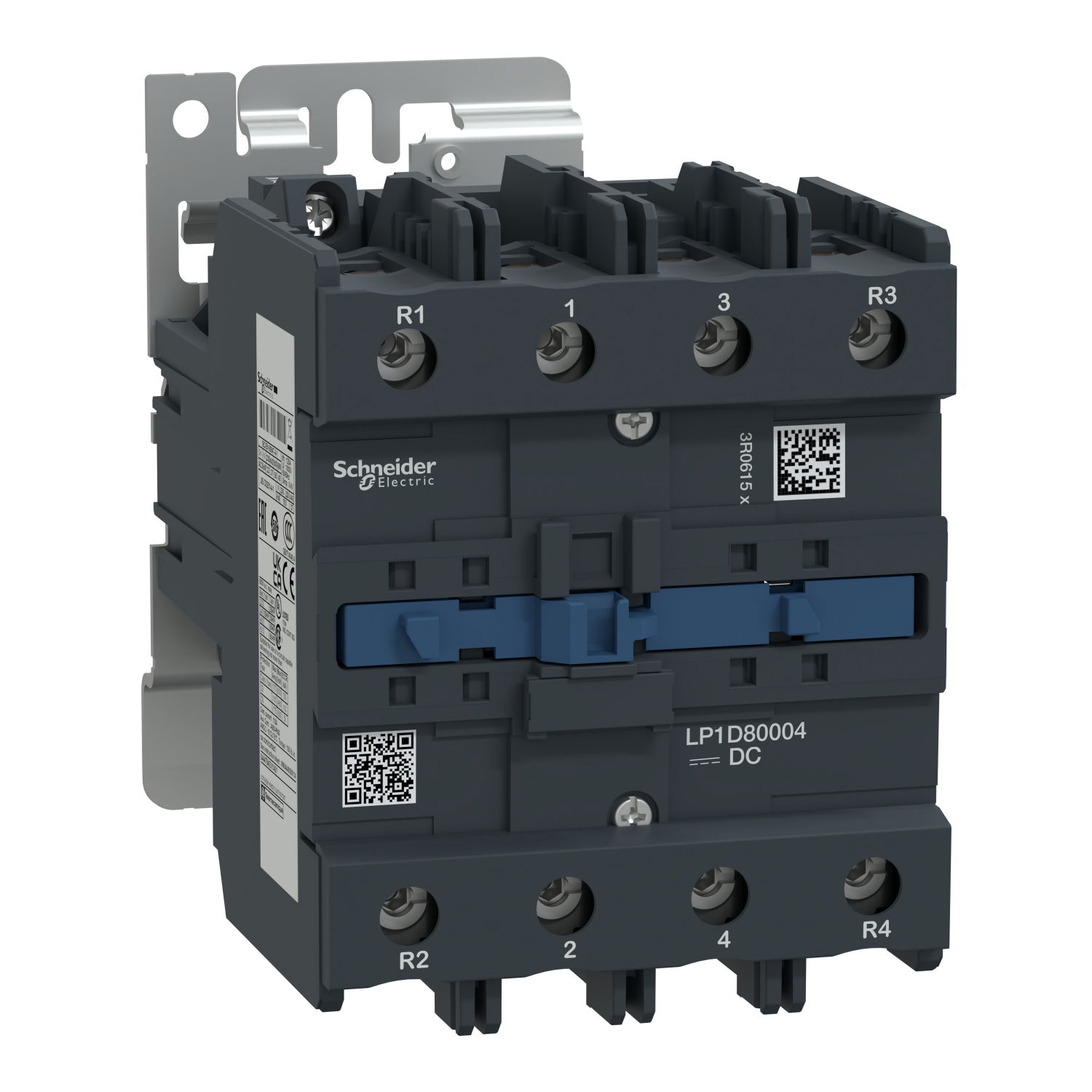

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 48 V DC coil

"TeSys Deca contactor, 4P(4NO) for category AC-1 applications up to 125A @440V." "It provides with 48V DC standard coil, with no auxiliary contacts, power and control connections by screw clamp terminals." "It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability." "It provides IP20 protection on front face conforming to IEC 60529." "It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude." "Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C." "The dimension is 127mm x 96mm x 181mm (H x W x D), mounting on rail or plate." "Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL)
