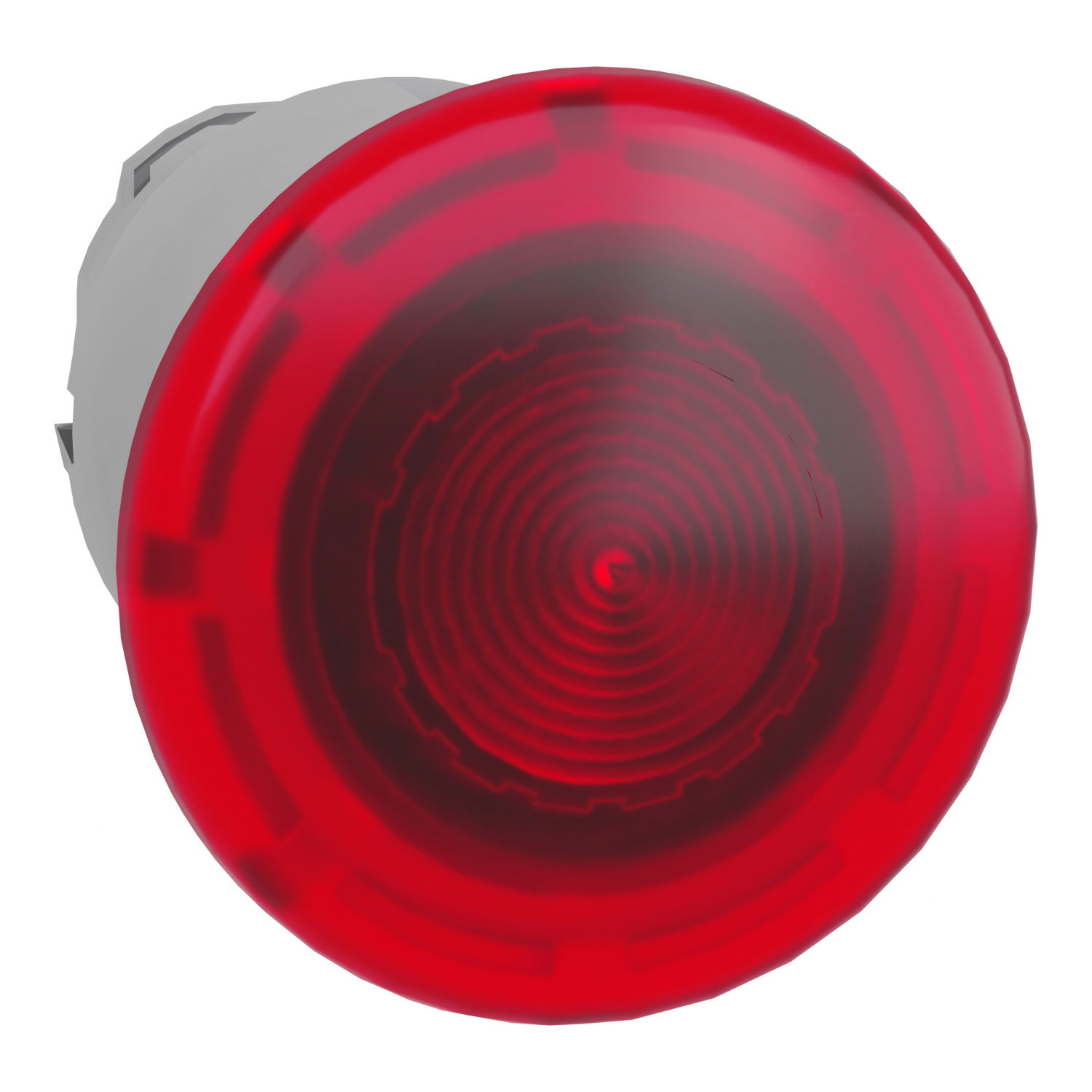

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull

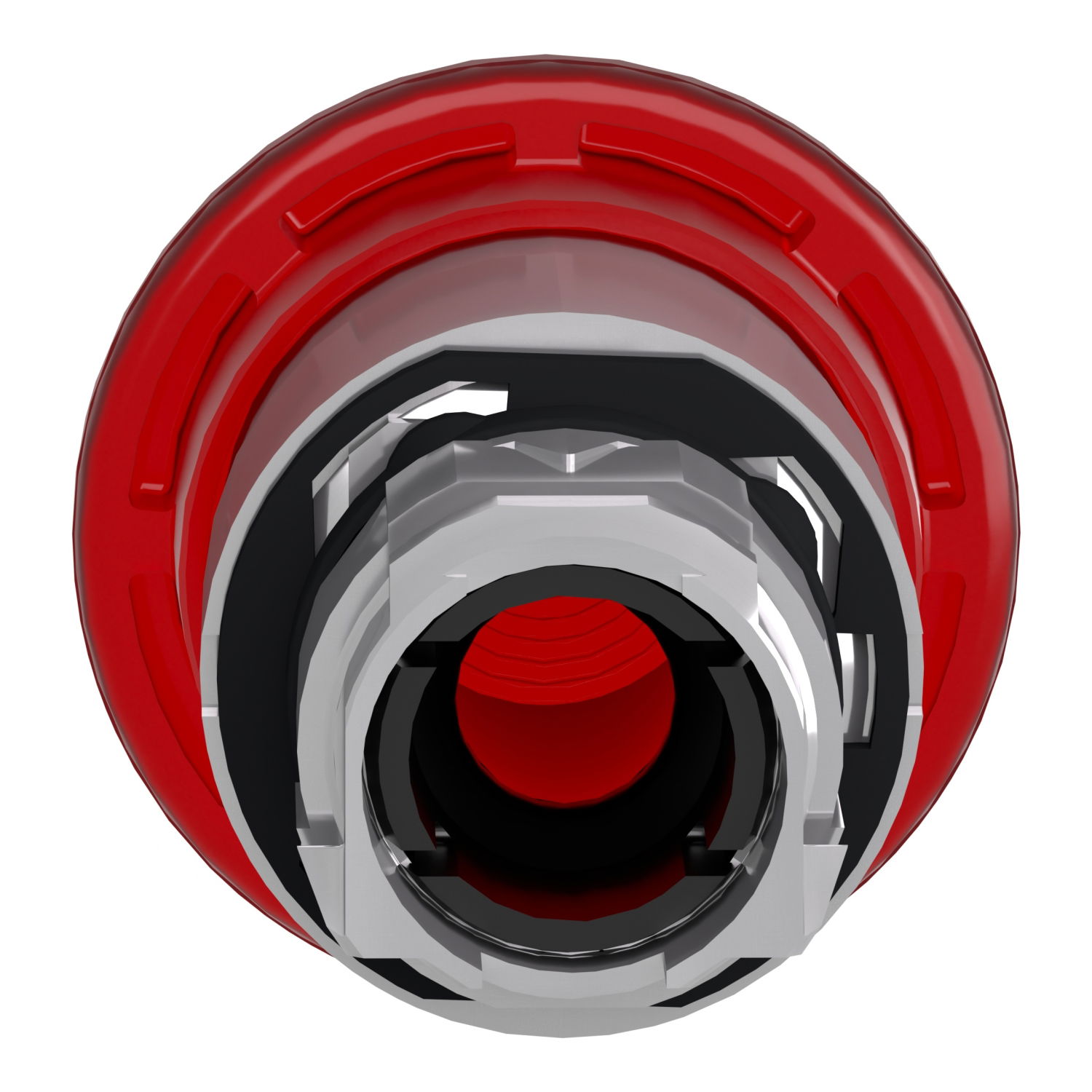

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 2 of 13

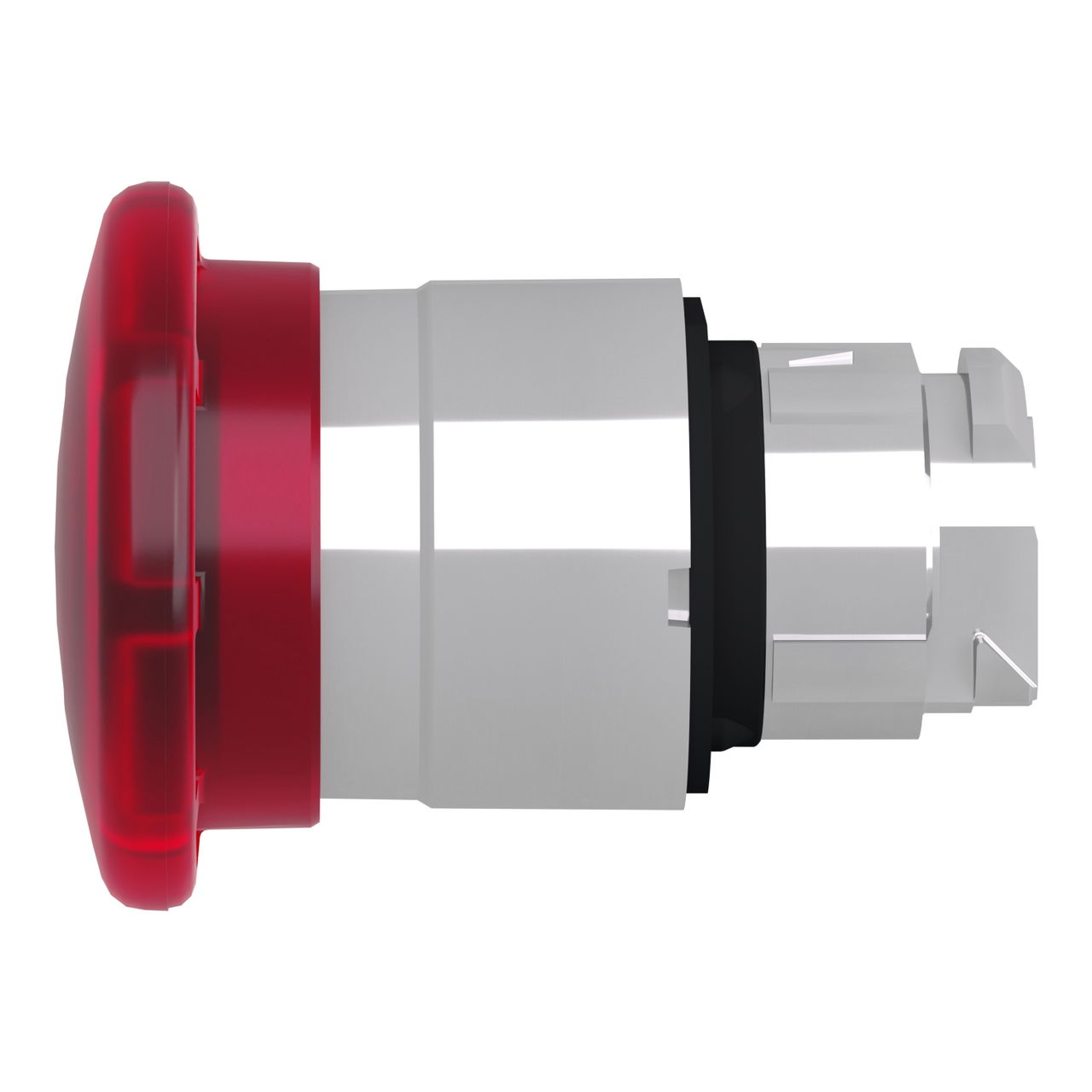

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 3 of 13

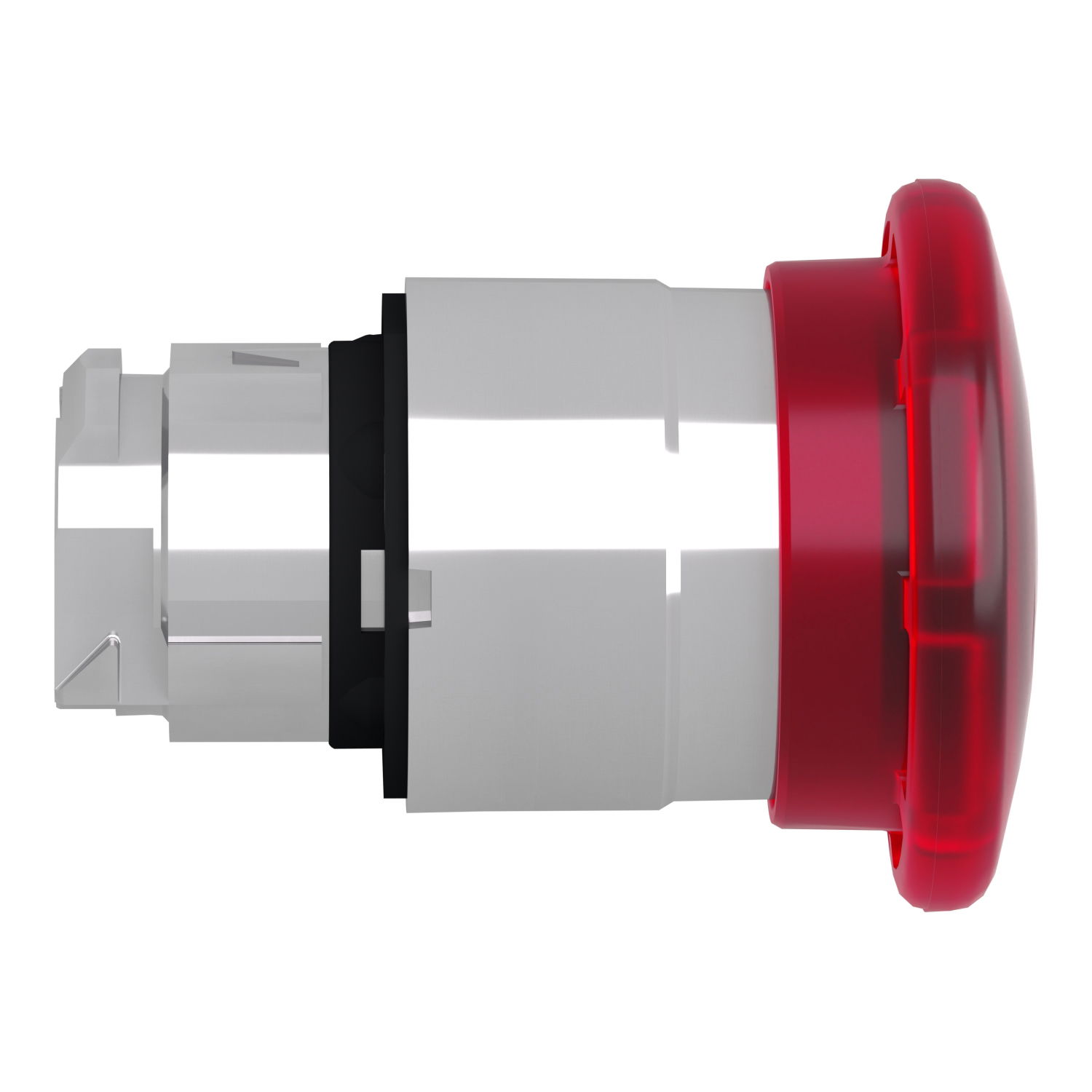

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 4 of 13

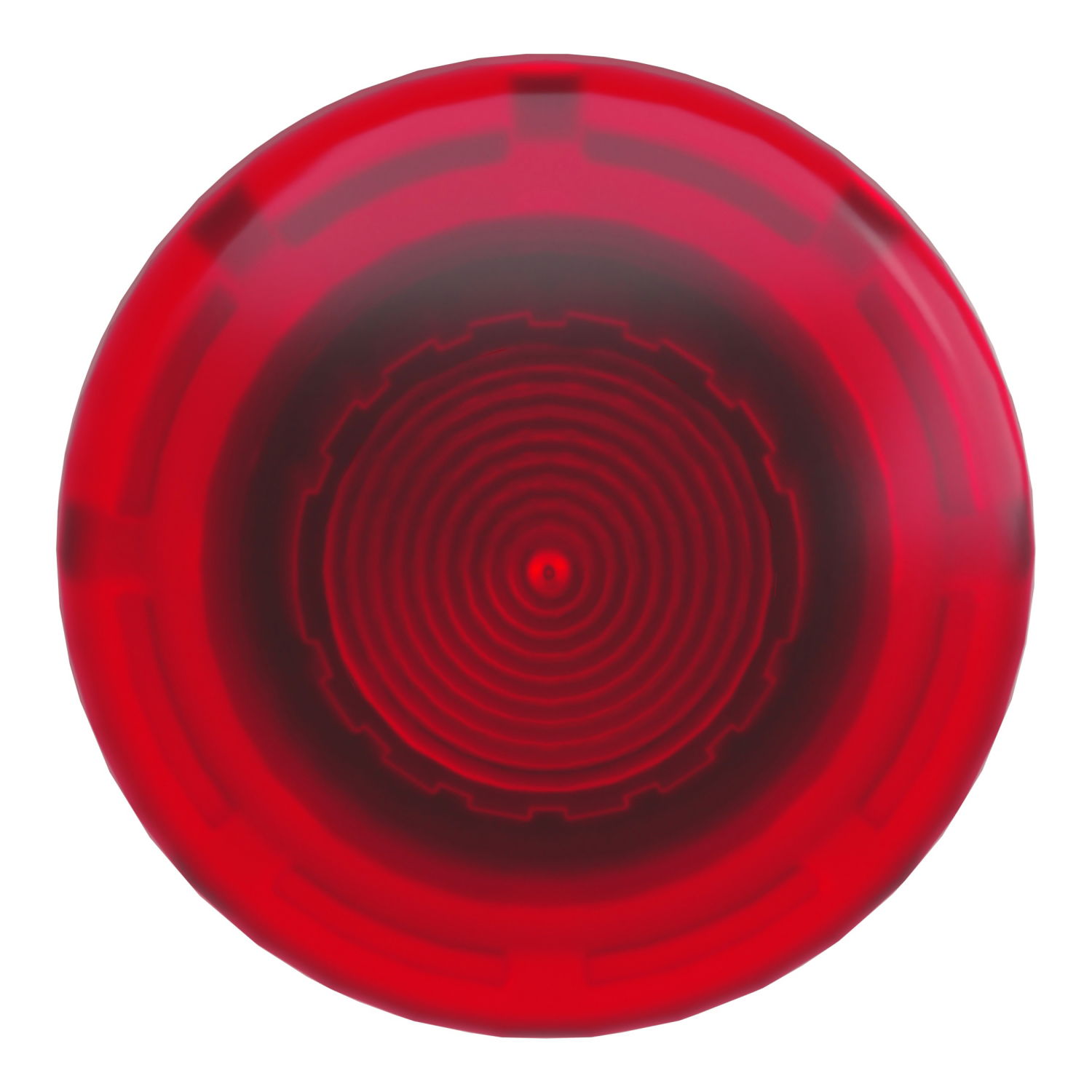

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 5 of 13

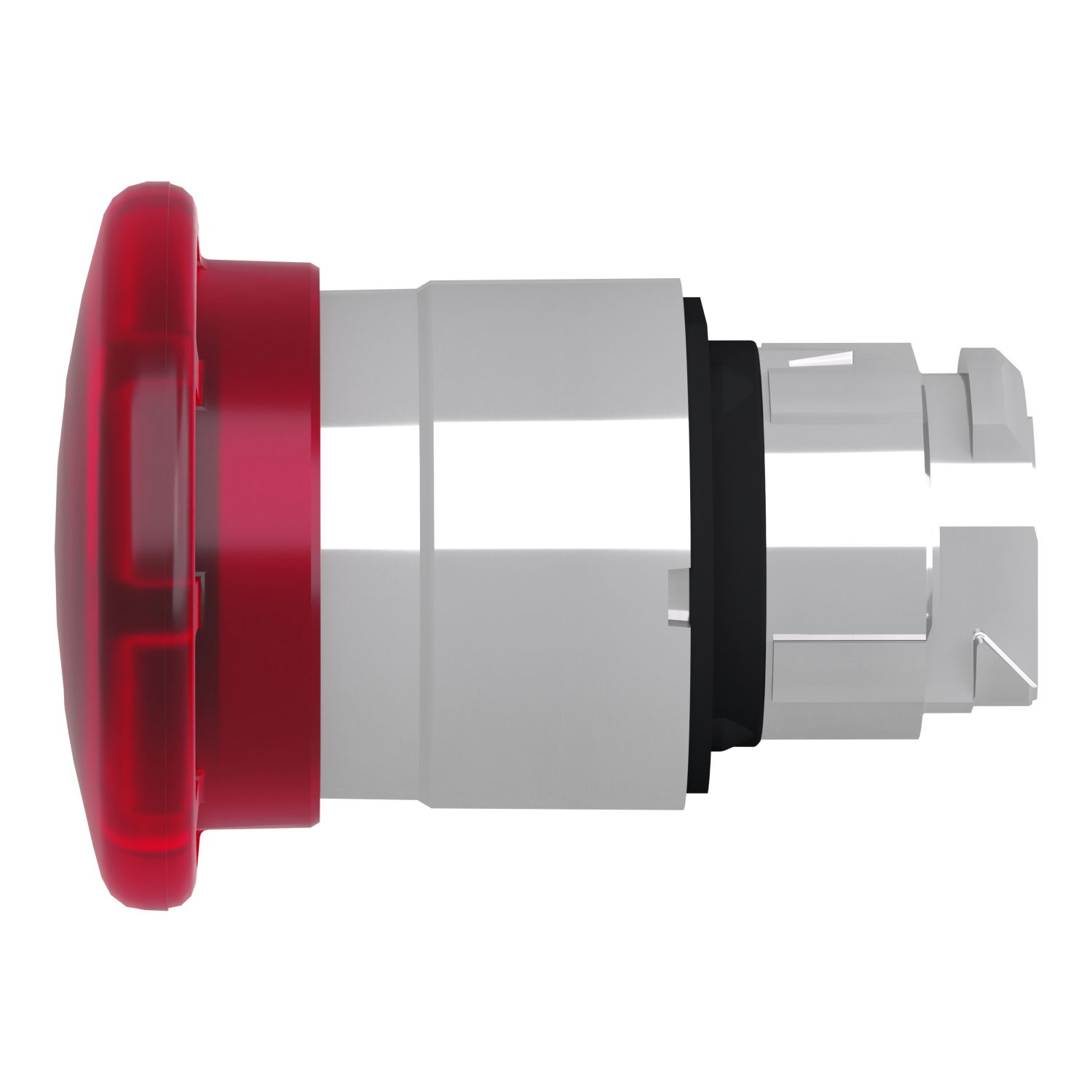

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 6 of 13

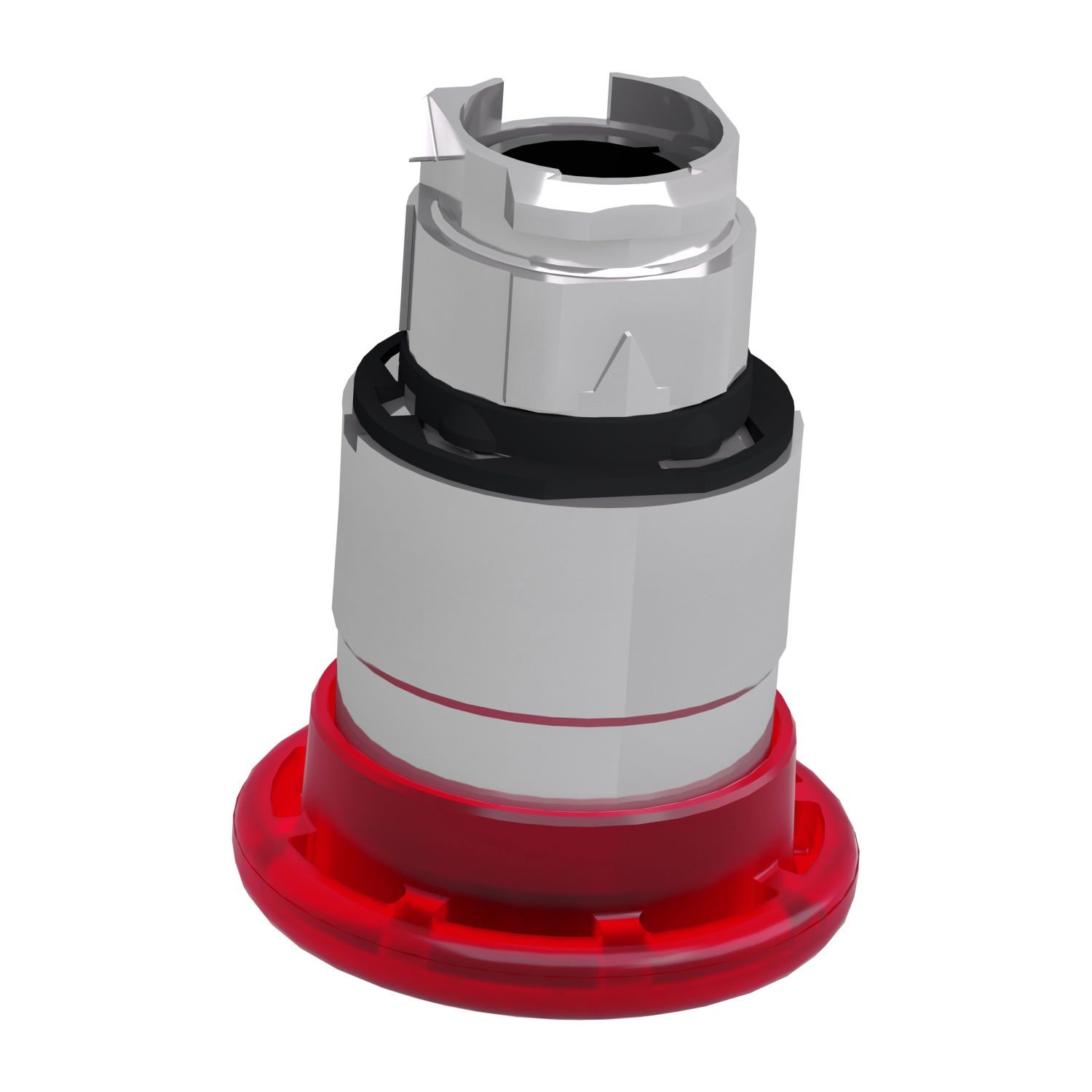

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 7 of 13

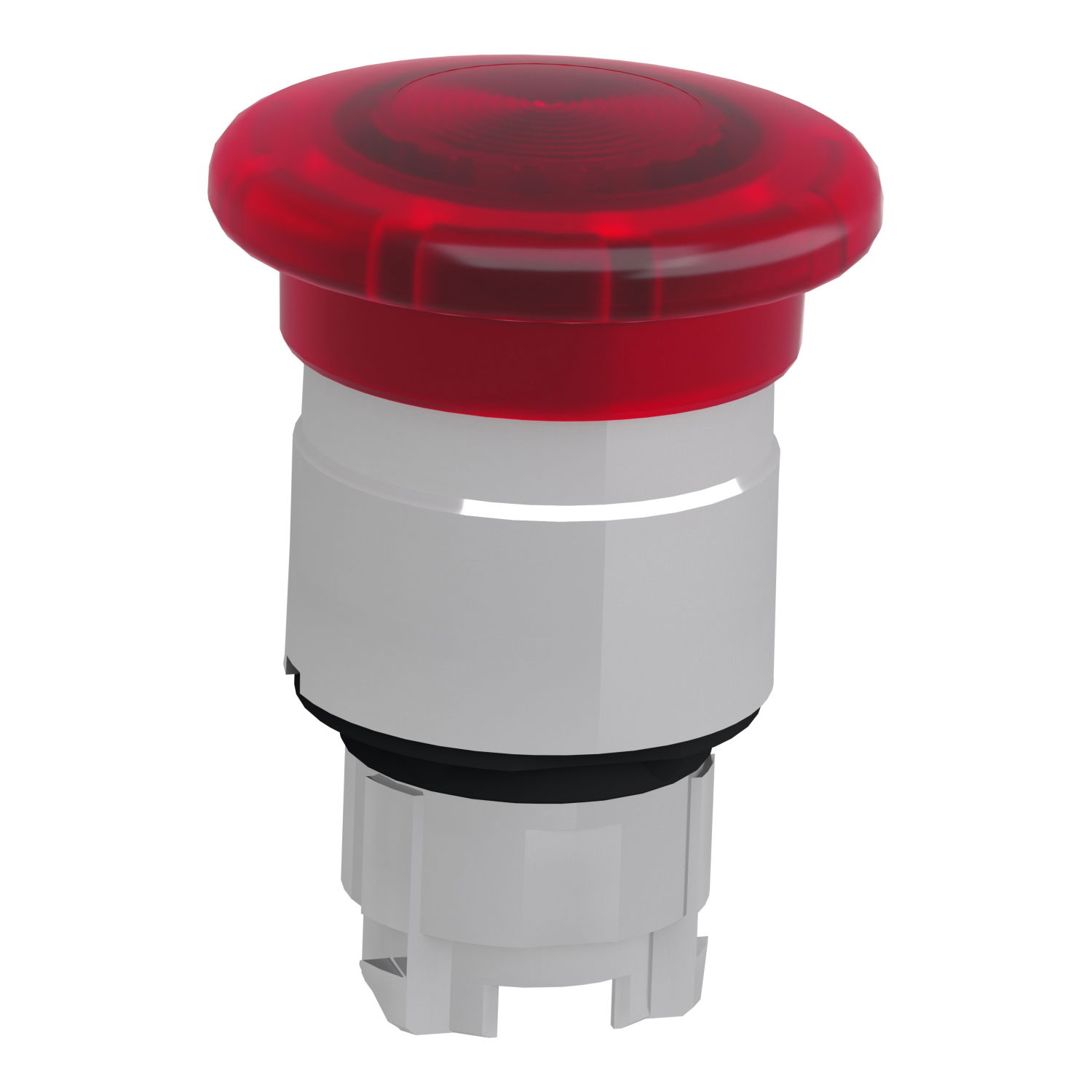

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 8 of 13

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 9 of 13

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 10 of 13

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 11 of 13

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 12 of 13

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull – Image 13 of 13

1 / 13

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull

Link copied

SKU
EAN
GTIN
MPN

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at all of them. Trade prices range from £22.13 to £35.52 excl. VAT. Voltimum+ members earn 4 points per unit.

This illuminated 40mm mushroom shape push button head for universal LED is part of of the range diameter 22mm, Harmony XB4. It is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Loyalty points: 4

Price range: £ 22.13 - £ 35.52 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Diameter cap	40 mm
Colour button	Red/green
Hole diameter	22.5 mm
Spring-return	no
Width opening	-
With lighting	yes
Height opening	-
Type of button	High
With front ring	yes
Unlocking method	Pull-release
Colour front ring	Chrome
Material front ring	Metal
Supply voltage lamp	-
Suitable for lighting	yes
Construction type lens	Round
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Suitable for emergency stop	no
Switching function latching	yes
