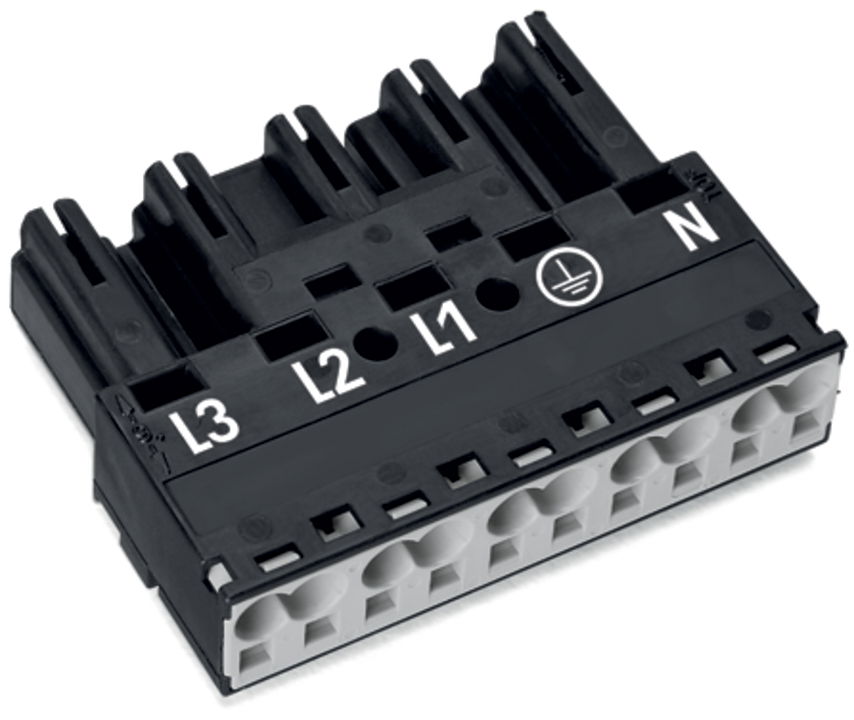

Plug 5-pole Cod. A black

Name: Plug 5-pole Cod. A black
Brand: Wago
SKU: 770-215
Availability: InStock

Plug; 5-pole; Cod. A; 4,00 mm²; black

Product identifiers

SKU: 770-215

EAN: 4044918254557

GTIN: 4044918254557

MPN: 770-215

Loyalty points: 3 (x50)

Price: £ 3.54 Excl. VAT

Pluggable building installation systems

Specifications

Model	Plug
Width	50
Height	12.9
Length	37.5
Fire load	0.08889
Halogen free	yes
Rated current	25
Rated voltage	400
Cable diameter
Connection type	Spring clamp connection
Number of poles	5
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	Other
With strain relief	no
Rated surge voltage	6
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Number of connections per pole	2
RAL-number coding/contact insert	9004
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
