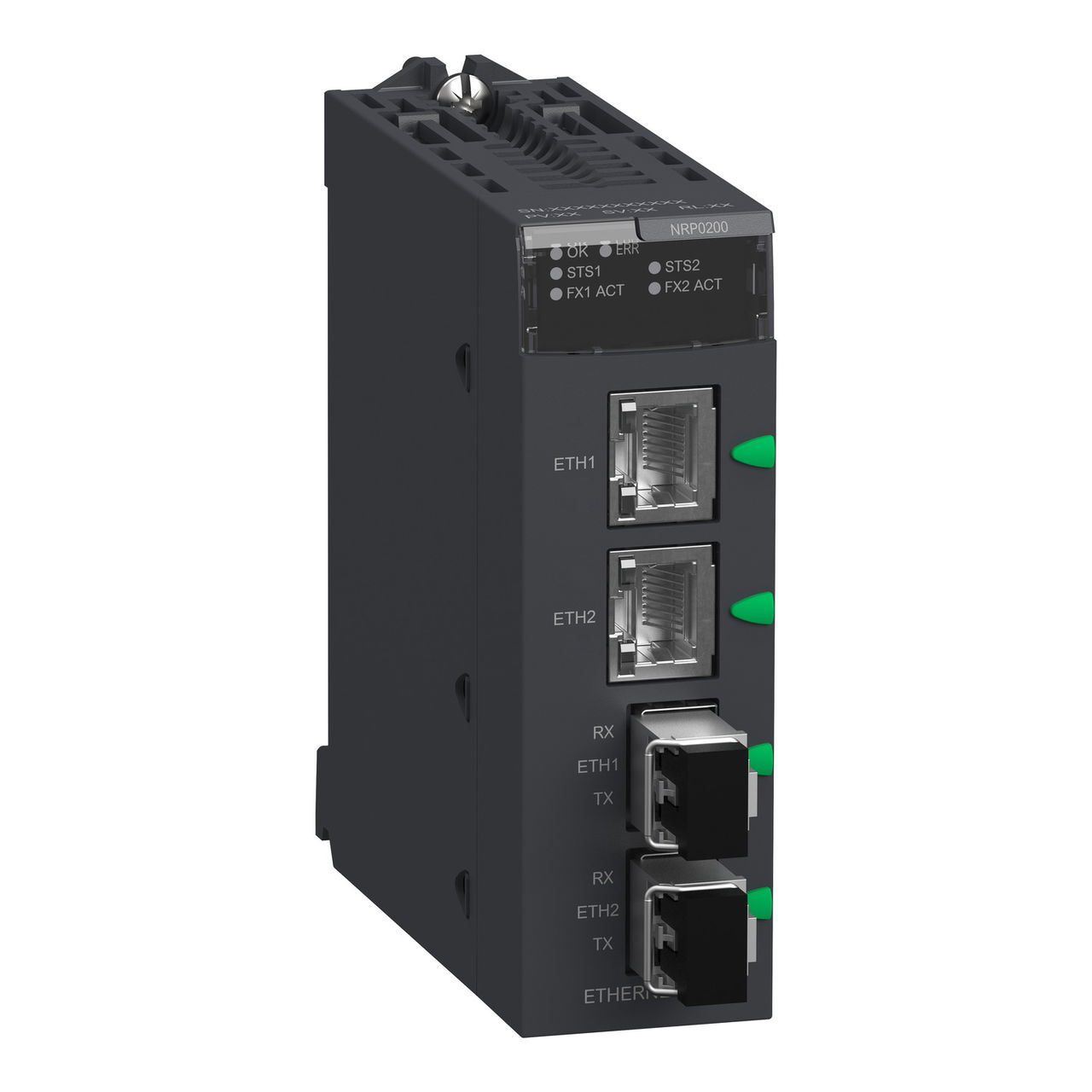

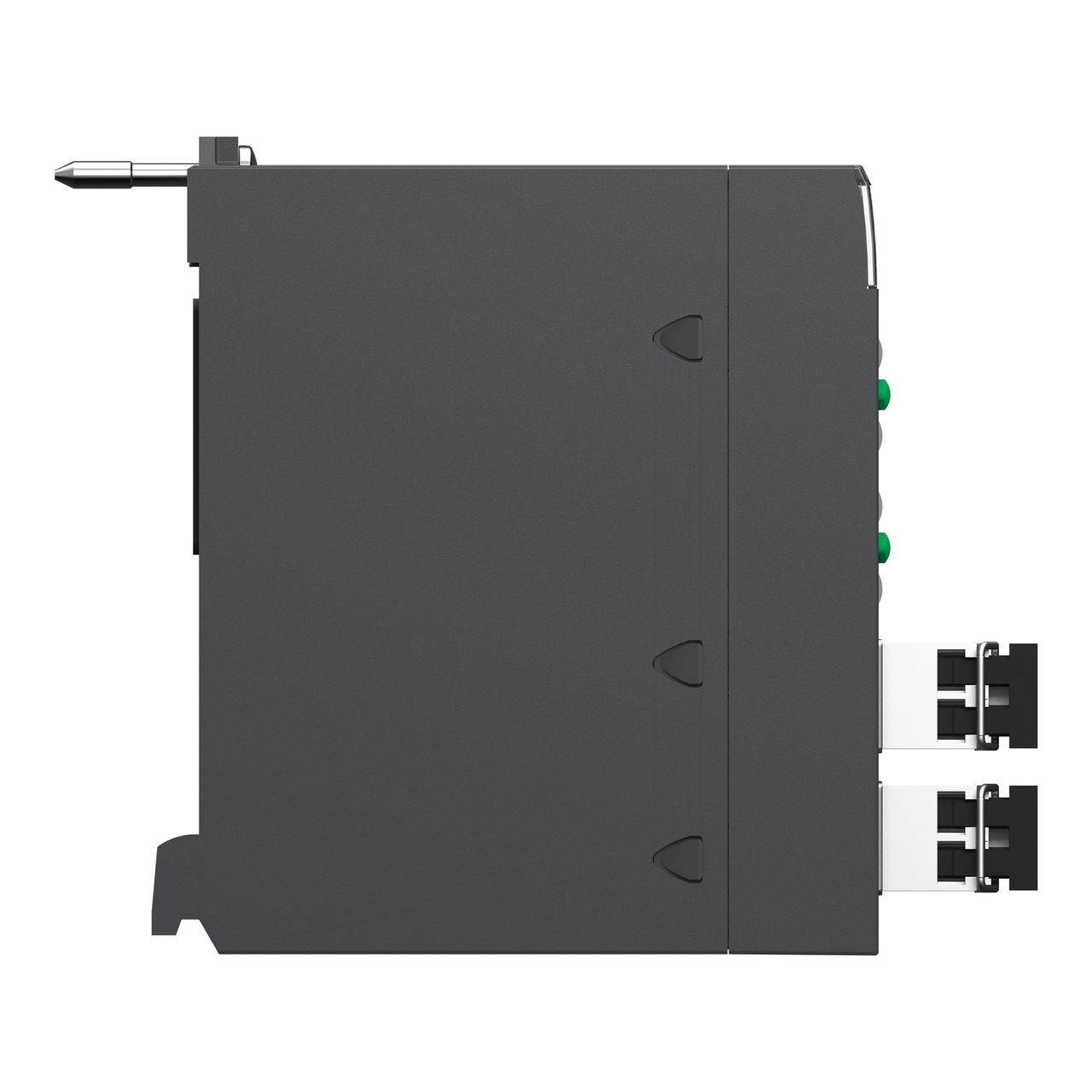

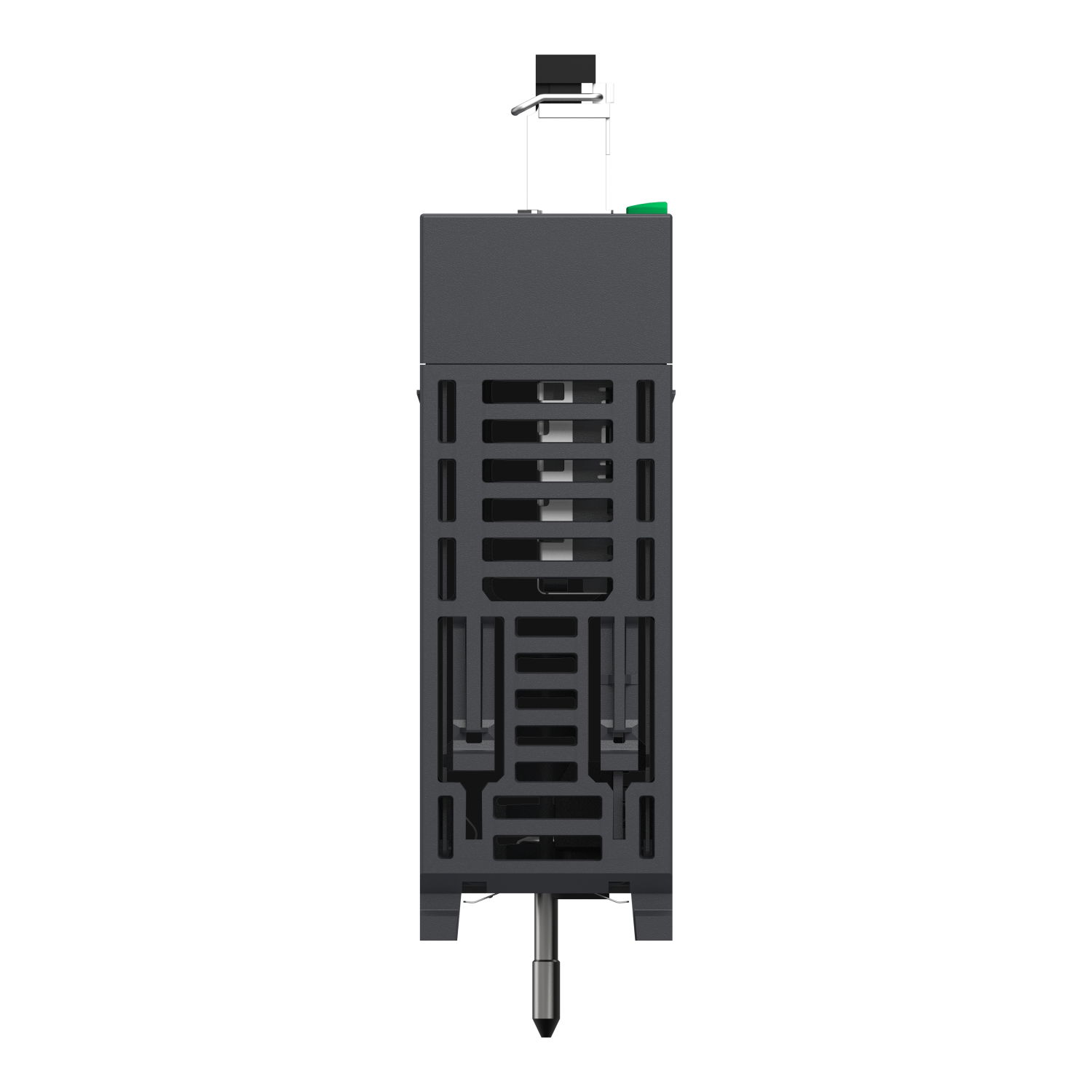

Fiber Converter MM/LC 2CH 100Mb

Link copied
SKU
EAN
GTIN
MPN

Fiber Converter MM/LC 2CH 100Mb by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £545.91 excl. VAT. Voltimum+ members earn 64 points per unit.

This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports multimode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 2000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Voltimum+ Loyalty Programme Loyalty points: 64

Price: £ 545.91 Excl. VAT

Specifications

Depth 86 mm
Width 32 mm
Height 100 mm
Redundancy no
IO link master no
Power consumption 1.1 W
Transmission rate 100000 kBit/s
Radio standard GSM no
Radio standard UMTS no
Radio standard Bluetooth no
With potential separation yes
SIL according to IEC 61508 None
Number of HW-interfaces USB 0
Supporting protocol for CAN no
Supporting protocol for LON no
Number of interfaces PROFINET 0
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-485 0
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces wireless 0
Supporting protocol for INTERBUS no
Appendant operation agent (Ex ia) no
Explosion safety category for gas None
Supporting protocol for PROFIsafe no
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO no
Supporting protocol for Data-Highway no
Supporting protocol for INTERBUS-Safety no
Supporting protocol for other bus systems yes
Number of HW-interfaces industrial Ethernet 2
Certified for UL hazardous location class II no
Performance level according to EN ISO 13849-1 None
Certified for UL hazardous location division 2 no
Certified for UL hazardous location group D (propane) no
Certified for UL hazardous location group C (ethylene) no
Certified for UL hazardous location group E (metal dusts) no
Certified for UL hazardous location group G (non-conductive dusts) no
