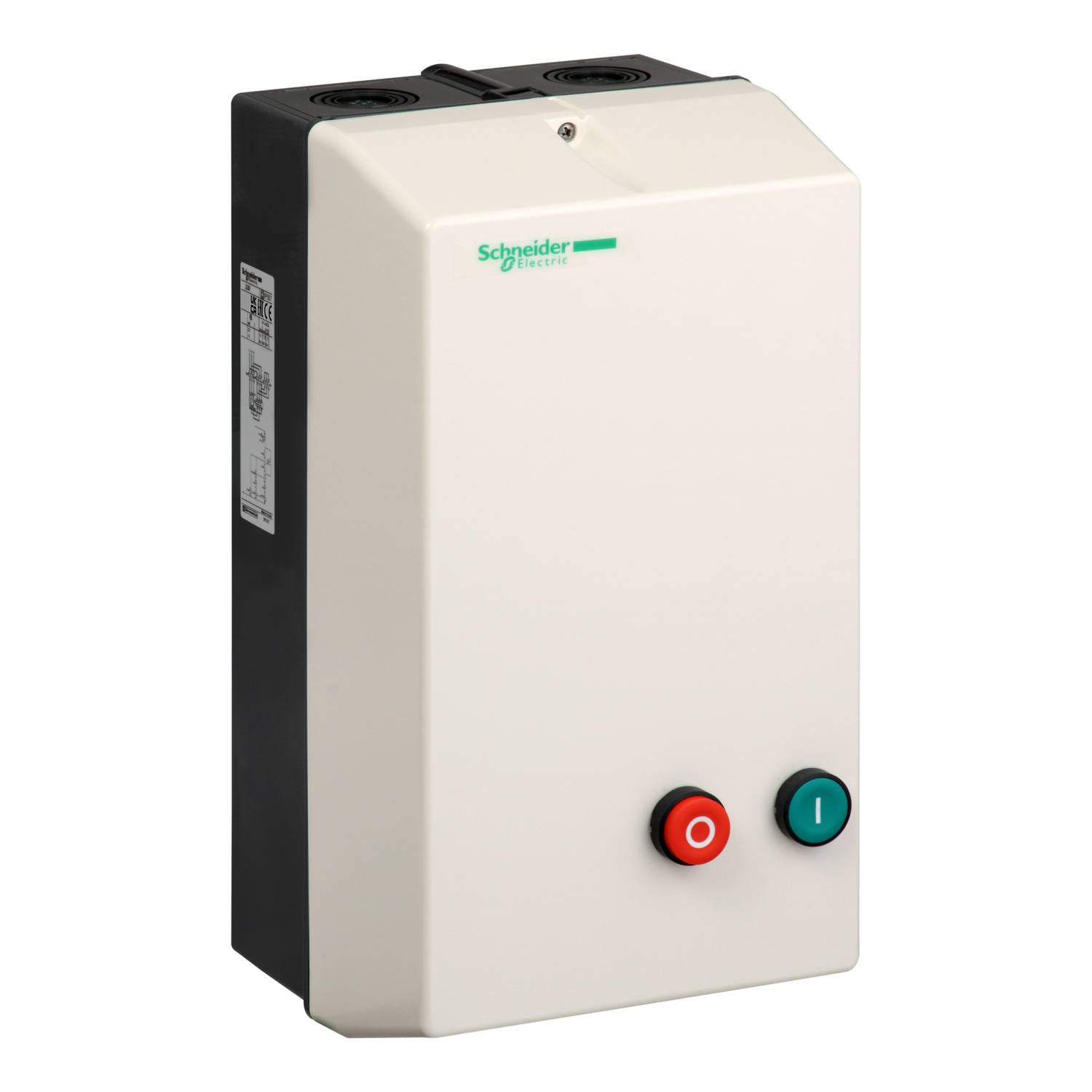

TeSys LE - enclosed star-delta starter - 12 A - 400 V AC coil
"TeSys Control enclosed starter with contactor for 3P motors Star-delta control up to 11kW@400V AC-3." "To be completed with Deca overload relay for motor protection against overload." "Star-delta starting of 3-phase motor: ON by green pushbutton, OFF by red pushbutton. Options: no pushbutton, “Reset” pushbutton only" "Self-extinguishing ABS material enclosure, IP65 protection." "It includes 3 pre-wired contactor LC1D with control circuit 400V 50/60Hz." "It conforms to IEC 60947-4-1
Product identifiers
SKU: LE3D12V7
EAN: 3389110627480
GTIN: 3389110627480
MPN: LE3D12V7
Loyalty points:
196
Price: £ 510.38 Excl. VAT
Categories
Features
|
Depth
|
175.5 mm
|
|
Width
|
186 mm
|
|
Height
|
348 mm
|
|
Function
|
Star-delta contactor
|
|
Operating voltage DC
|
|
|
Degree of protection (IP)
|
IP65
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Rated operation power NEMA
|
-
|
|
Suitable for rail mounting
|
FALSE
|
|
Voltage type for actuating
|
AC
|
|
Degree of protection (NEMA)
|
Other
|
|
Rated control supply voltage DC
|
|
|
Voltage type (operating voltage)
|
AC
|
|
Rated operation power at AC-3, 400 V
|
11 kW
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Rated operation current Ie at AC-1, 400 V
|
-
|
|
Rated operation current Ie at AC-3, 400 V
|
12 A
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Number of normally open contacts as main contact
|
3
|
|
Number of normally closed contacts as main contact
|
0
|
|
Number of auxiliary contacts as change-over contact
|
0
|
|
Number of auxiliary contacts as normally open contact
|
1
|
|
Number of auxiliary contacts as normally closed contact
|
1
|
|
Type of electrical connection for auxiliary- and control current circuit
|
Screw connection
|
