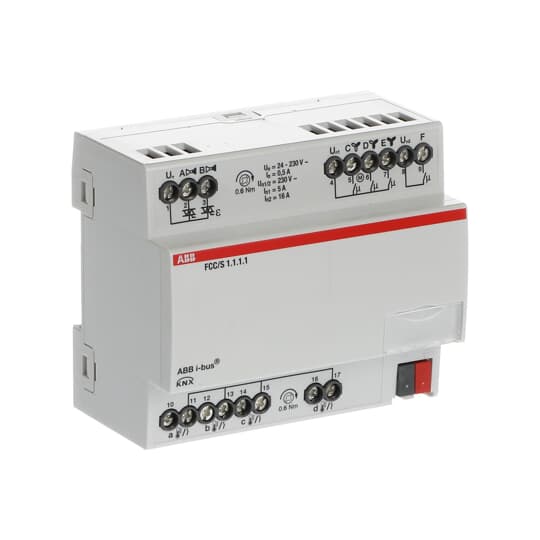

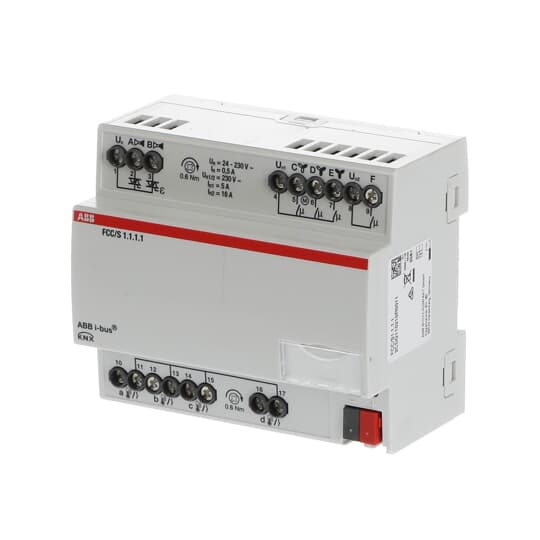

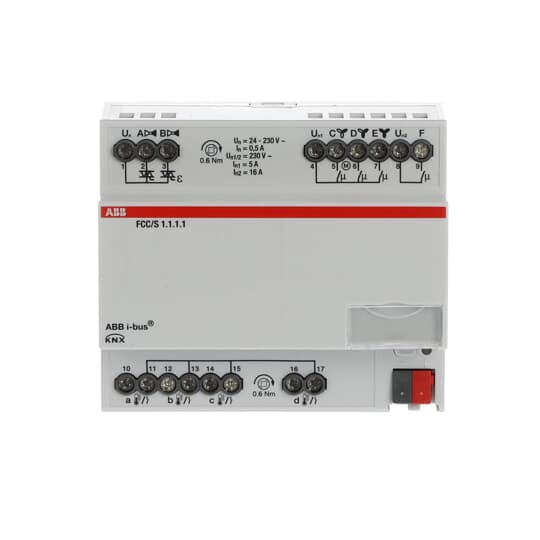

FCC/S1.1.1.1 Fan Coil Controller, 2 x PWM, 3-stage, MDRC

Link copied
SKU
EAN
GTIN
MPN
For the control of fan coil units. Via two electronic outputs, two thermoelectric or one motor-driven valve drive can be controlled for heating and cooling. For the fan control the devices features three relay outputs. A relay output switches an additional load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.

Voltimum+ Loyalty Programme Loyalty points: 132

Price: £ 270.89 Excl. VAT

Specifications

Manual switch yes
Bus system KNX yes
Bus system LON no
Mounting method Other
Number of outputs 5
Other bus systems None
Switching voltage
Bus system Powernet no
With bus connection yes
Number of digital inputs 4
Valve protection function yes
Correcting variable switching yes
Correcting variable consistent yes
Width in number of modular spacings 6
Min. depth of built-in installation box -

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

6_TE_MB_XX_V1-0_2CDC072026F0017_Rev_A.pdf

Open

Instructions for use

FCCS 1.X.X.1_MBA_XX_V1-0_2CDG941188P0002.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

FCCS_1111_CE-ROHS_xx_V1-0_2CDK508221D2701.pdf

Open
