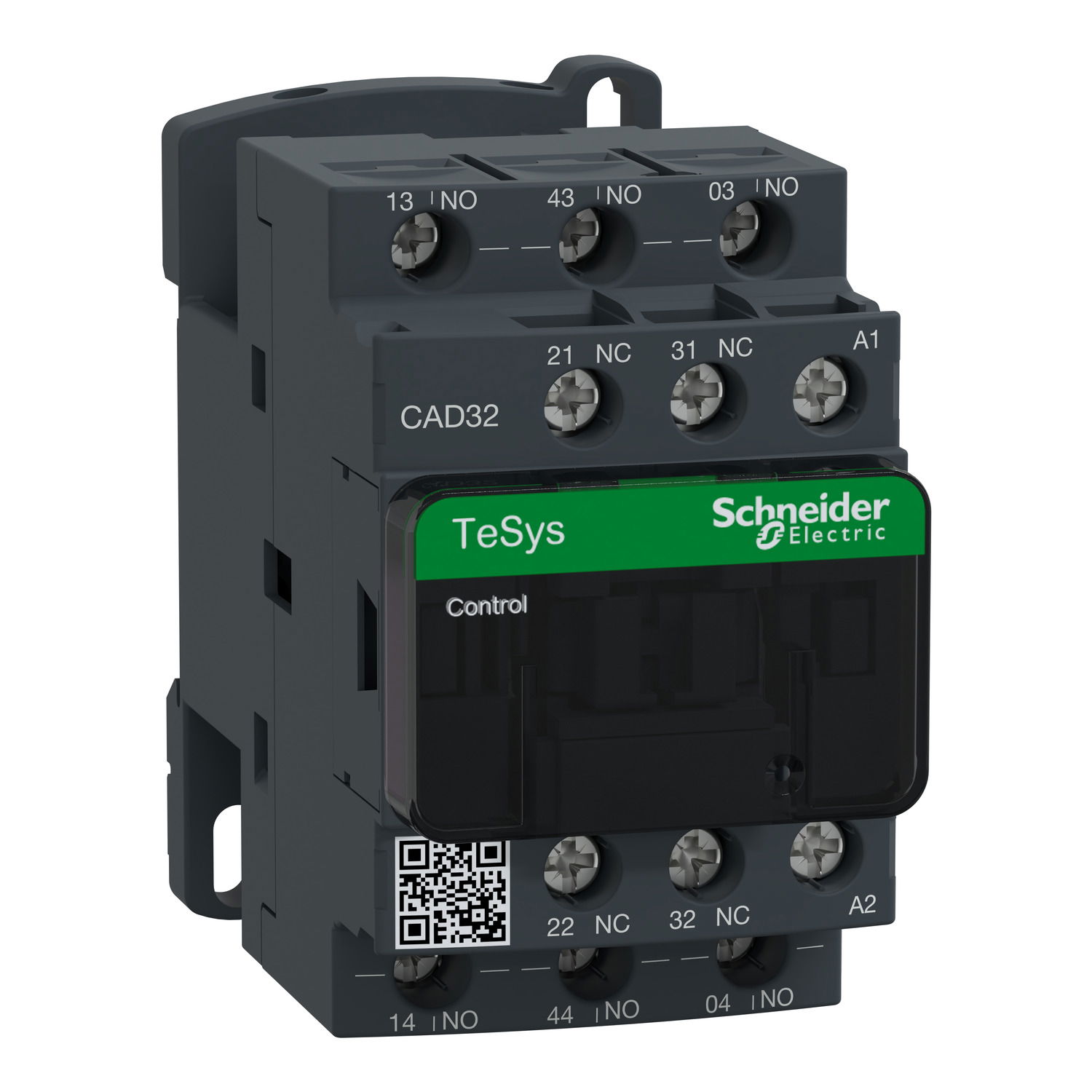

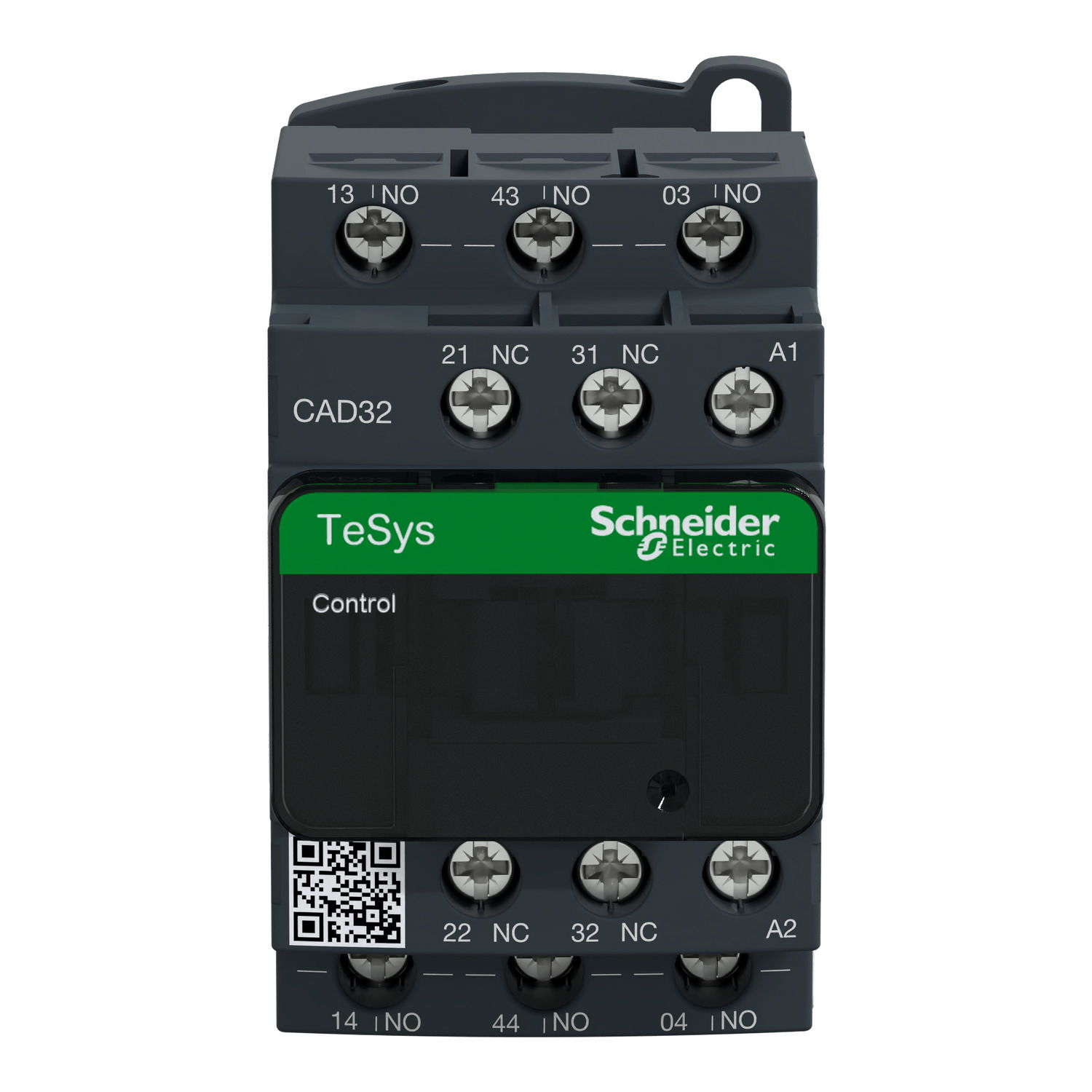

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V AC standard coil
1 / 6
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales and basket transfers.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V AC standard coil
TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V AC standard coil by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 5 of them. Trade prices range from £26.71 to £43.48 excl. VAT. Voltimum+ members earn 6 points per unit.
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: CAD32F7
EAN: 3389110534276
GTIN: 3389110534276
MPN: CAD32F7
Loyalty points:
6
Price range: £ 26.71 - £ 43.48 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 84 mm |
| Width | 45 mm |
| Height | 77 mm |
| Interface | no |
| Mounting method | DIN-rail/screw |
| With LED indication | no |
| Operating voltage DC | |
| Rated switch current | 0.005 A |
