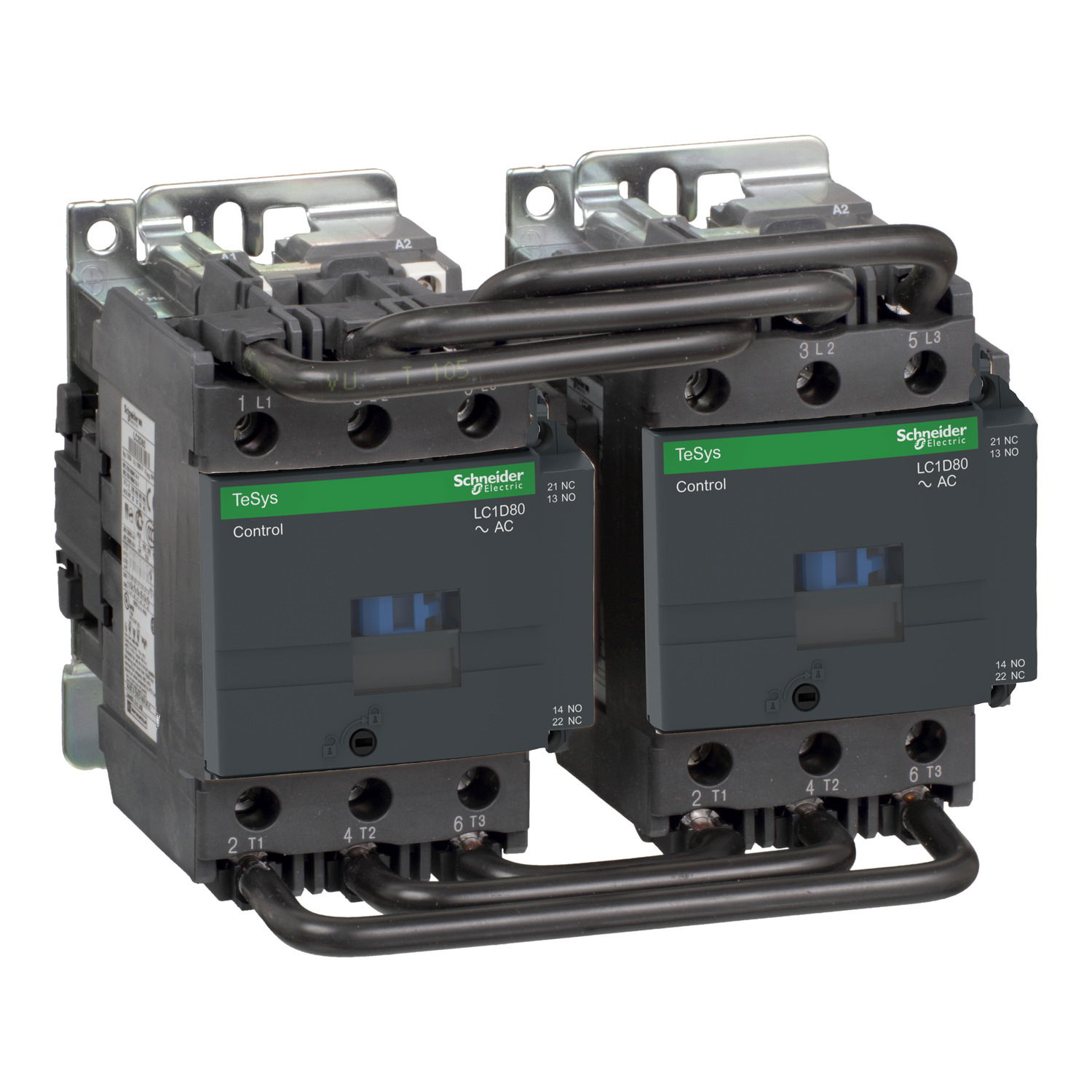

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 48 V AC coil

1 / 2

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 48 V AC coil

Name: TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 48 V AC coil
Brand: Schneider Electric
SKU: LC2D80E7
Availability: InStock

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 48 V AC coil by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £852.03 excl. VAT. Voltimum+ members earn 115 points per unit.

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides 48V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (182mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),

Product identifiers

SKU: LC2D80E7

EAN: 3389110463019

GTIN: 3389110463019

MPN: LC2D80E7

Loyalty points: 115

Price: £ 852.03 Excl. VAT

Specifications

Depth	158 mm
Width	182 mm
Height	127 mm
Function	Reversing contactor
Operating voltage DC
Degree of protection (IP)	IP20
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	44.8 kW
Suitable for rail mounting	no
Voltage type for actuating	AC
Degree of protection (NEMA)	Other
Rated control supply voltage DC
Voltage type (operating voltage)	AC
Rated operation power at AC-3, 400 V	37 kW
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	-
Rated operation current Ie at AC-3, 400 V	80 A
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as change-over contact	-
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Type of electrical connection for auxiliary- and control current circuit	Screw connection
