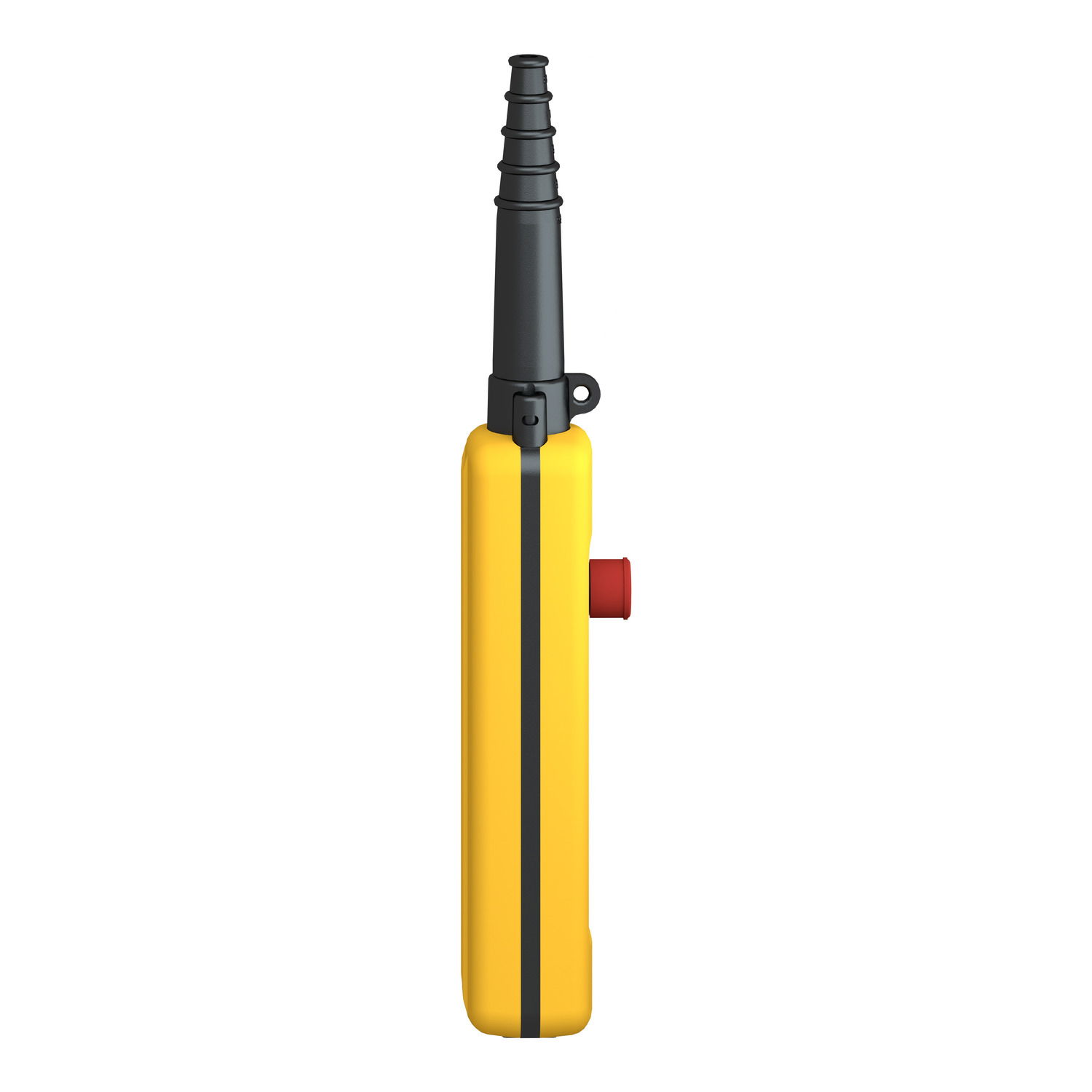

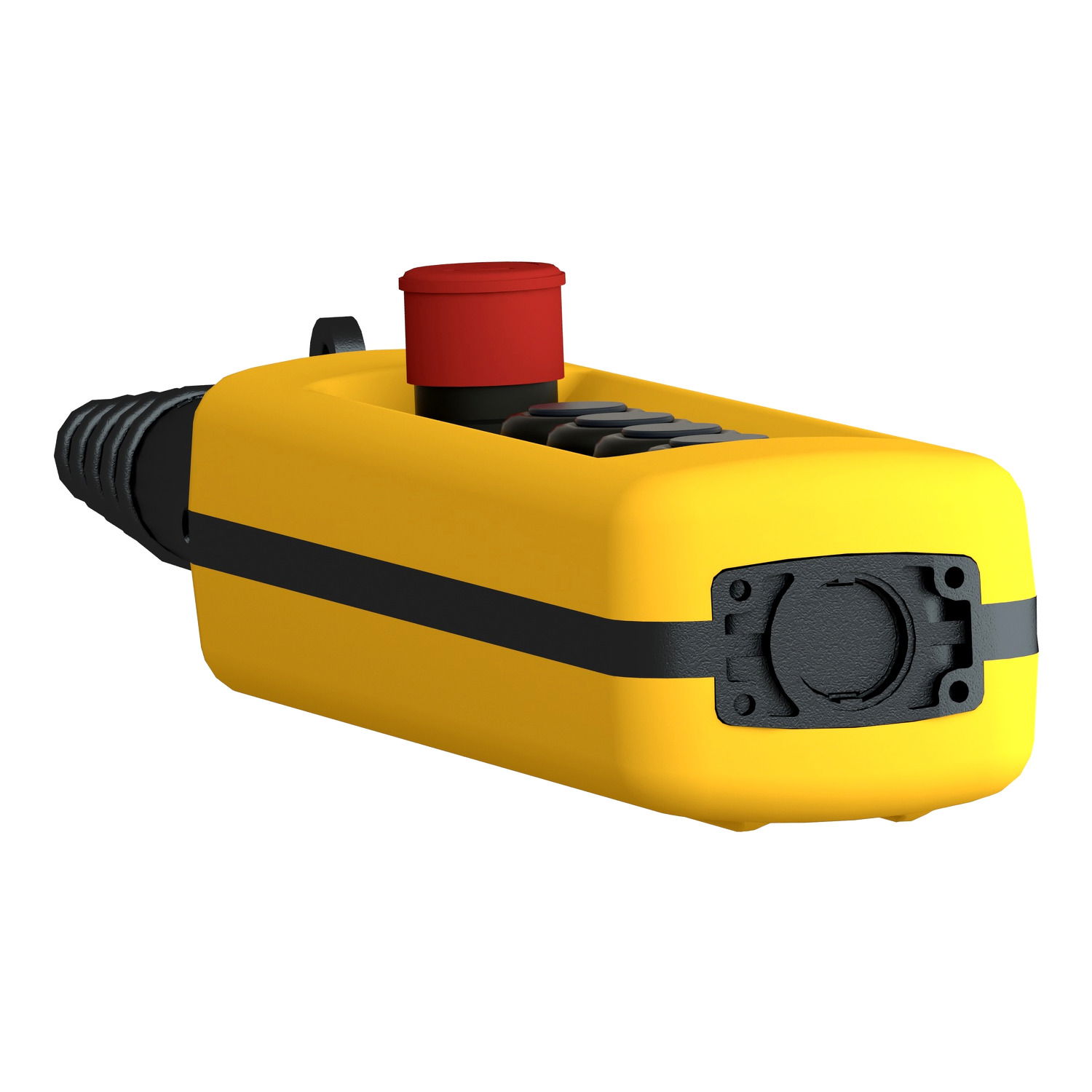

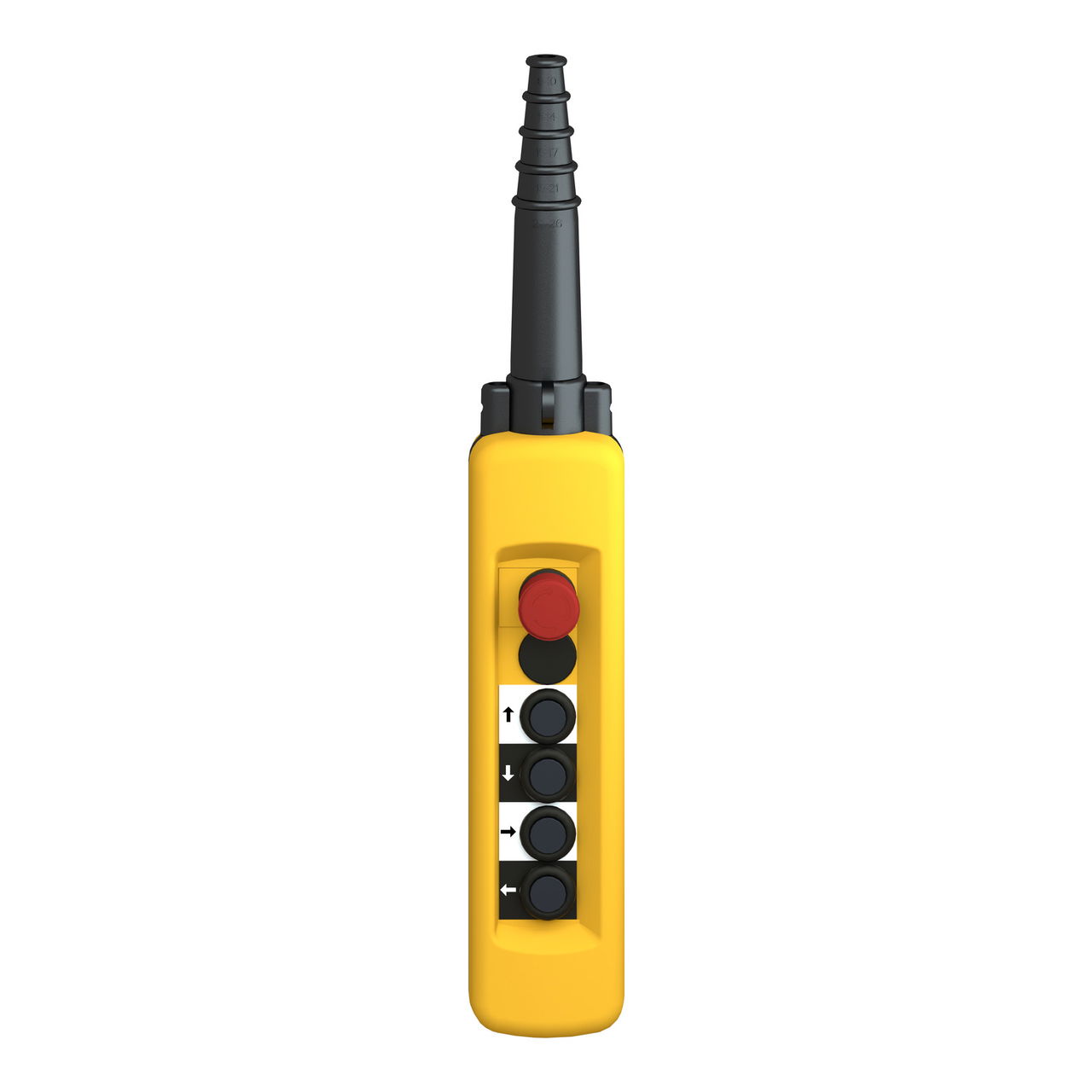

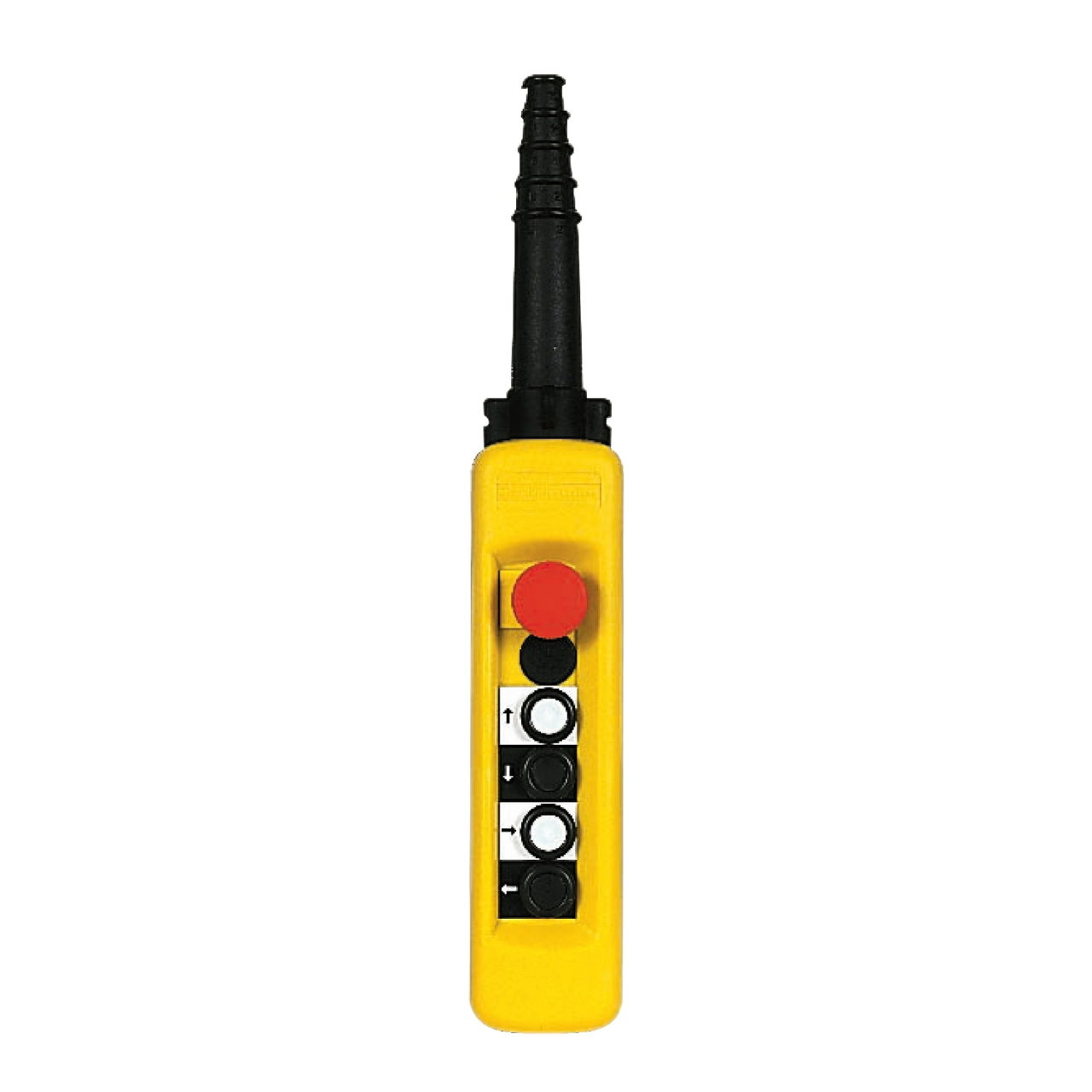

Pendant control station XAC-A - 4 pushbuttons 1 Emergency stop

Link copied
SKU
EAN
GTIN
MPN

Pendant control station XAC-A - 4 pushbuttons 1 Emergency stop by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 3 of them. Trade prices range from £100.51 to £161.33 excl. VAT. Voltimum+ members earn 21 points per unit.

This Harmony XAC, yellow pendant station for hoist motor has single speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 4 push buttons and 1 emergency stop with "raise", "lower", "left", "right" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Voltimum+ Loyalty Programme Loyalty points: 21

Price range: £ 100.51 - £ 161.33 Excl. VAT

Specifications

Depth 107 mm
Width 80 mm
Height 250 mm
Housing material Plastic
Number of speeds 1
Colour housing cover Yellow
Housing material quality Other
Degree of protection (IP) IP65
Degree of protection (NEMA) 13
Suitable for emergency stop yes

Documents

Declaration of Conformity (Sustainability)

XACA4713 REACh Regulation

Open

Instruction sheet

XAC A... Pendant control stations, Instruction Sheet (EN)

Open

Product data sheet

Open

Catalog

Discover the Harmony XAC Pendant control stations catalog

Open

Declaration of Conformity (Sustainability)

XACA4713 EU RoHS Directive

Open

Declaration of conformity

XACA Pendant control station 2 to 12 buttons

Open

Environmental Disclosure

XACA empty pendant control station enclosures, Product Environmental Profile

Open
