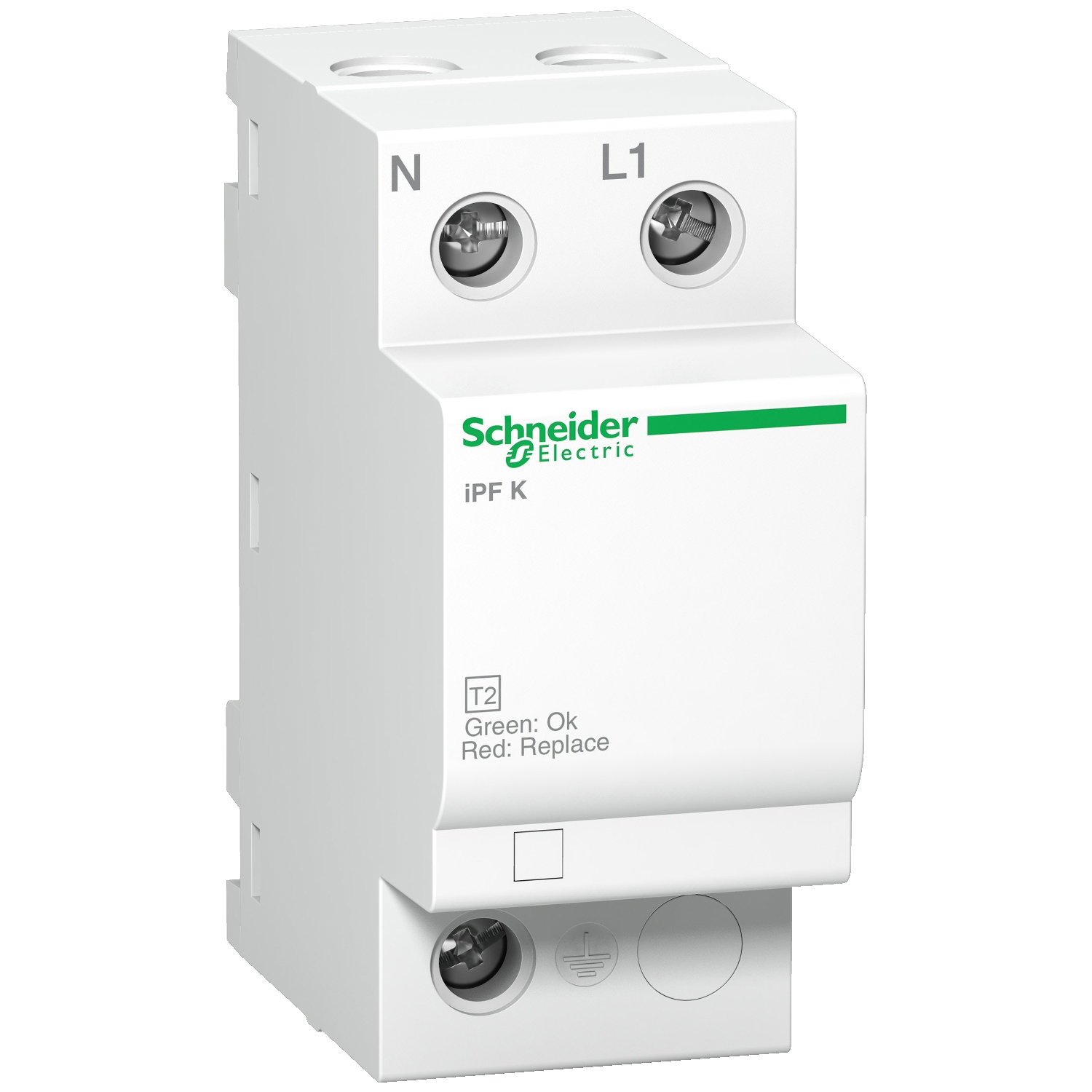

IPF K 40 modular surge arrester - 1 pole + N - 340V

IPF K 40 modular surge arrester - 1 pole + N - 340V by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £368.39 excl. VAT. Voltimum+ members earn 43 points per unit.

This Acti9 iPF K 40 product is a modular surge arrester. It protects 3P installations. The Imax maximum discharge current is 40kA .The In nominal discharge current is 15kA. The multi-pole single-piece surge arrester range is adapted for TT, TN-S, TN-C earthing systems. This type 2 incoming protection surge arrester is recommended for a high risk level. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 260VAC. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 340VAC. The Up Voltage protection level is 1.5kV in common mode (between neutral and earth) and in differential mode (between phase and neutral). The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 81mm x (D) 69mm. The weight is 210g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with IEC 61643-11 and EN 61643-11 standards.

Product identifiers

SKU: A9L15687
EAN: 3606480089831
GTIN: 3606480089831
MPN: A9L15687

Voltimum+ Loyalty Programme Loyalty points: 43

Price: £ 368.39 Excl. VAT

Categories

Low Voltage Switchgear Switchgear Switchgear & Circuit Protection

ETIM group

Earthing, lightning and surge protection

Specifications

Category type 2 yes
Max. PV-voltage -
Mounting method DIN rail (top hat rail) 35 mm
Construction size 2 modular spacing
Nominal voltage AC 230 V
Nominal voltage DC -
Leakage-current free no
Integrated backup fuse no
System configuration IT no
System configuration TT yes
Voltage protection level 1.5 kV
System configuration TN-C no
Max. continuous voltage AC 340 V
System configuration other no
Voltage protection level L-N 1.5 kV
With remote signalling contact no
Max. discharge surge current (8/20) 40 kA
Number of conductors (without earthing) 1
Max. conductor cross section flexible (fine-strand) 16 mm²
Integrated short-circuit protection selective to fuse gG -
Max. overcurrent protection device, parallel connection (fuse) 40 A
