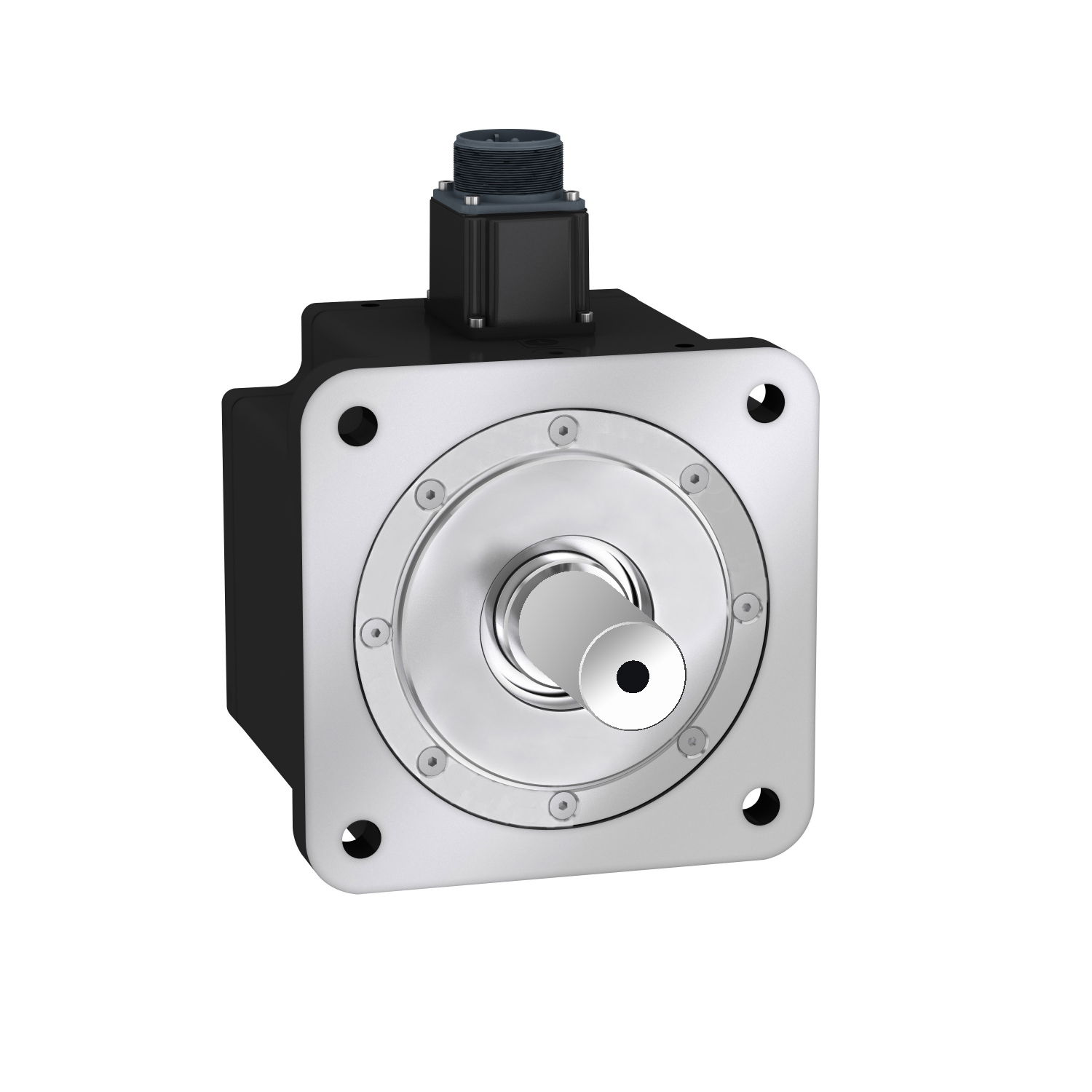

BCH2 motor 180mm 3500W with oil seal wo key 20-bit MT enc. straight con.

Name: BCH2 motor 180mm 3500W with oil seal wo key 20-bit MT enc. straight con.
Brand: Schneider Electric
SKU: BCH2MR3522MA6C
Price: 1194.00 GBP
Availability: OutOfStock

Product identifiers

SKU: BCH2MR3522MA6C

EAN: 3606485463506

GTIN: 3606485463506

MPN: BCH2MR3522MA6C

Loyalty points: 199

Price: £ 1,194.00 Excl. VAT

ETIM Group

Gate operators, pumps and ventilators

Specifications

Model	Rotary current synchronous motor
Bearing	Ball bearing
Duty cycle	Other
Power factor	-
Voltage type	AC/DC
Rated current	22.9 A
Rated voltage	220 V
Cooling method	Other
Nominal torque	16.7 Nm
Shaft end type	Other
Number of poles	0
Rated frequency
Housing material	Other
Number of phases	3
Construction type	IM 3001 (B5)
Overload capability	yes
Full-load efficiency	-
Intrinsic safety (IS)	None
Operating temperature
Starting torque ratio	0
Breakdown torque ratio	0
Motor efficiency class	Other
Starting current ratio	0
With anti-condensation	no
Degree of protection (IP)	IP65
Degree of protection (NEMA)	-
Frame size according to IEC	180 mm
Suitable for frequency control	no
Voltage anti-condensation heater	-
Insulation class according to IEC	F
Vacuum pressure impregnation (VPI)	Other
Rated performance at rated frequency	3.5 kW
Output power anti-condensation heater	-
Rated rotational speed at rated frequency	2000 1/min
With resistance temperature detector (RTD)	no
With positive temperature coefficient resistor (PTC)	no

Documents

Deeplink product page
Environmental compliance declaration
Product data sheet
Catalogue
Environmental compliance declaration
Declaration of conformity
Environmental disclosure
Circularity Profile
