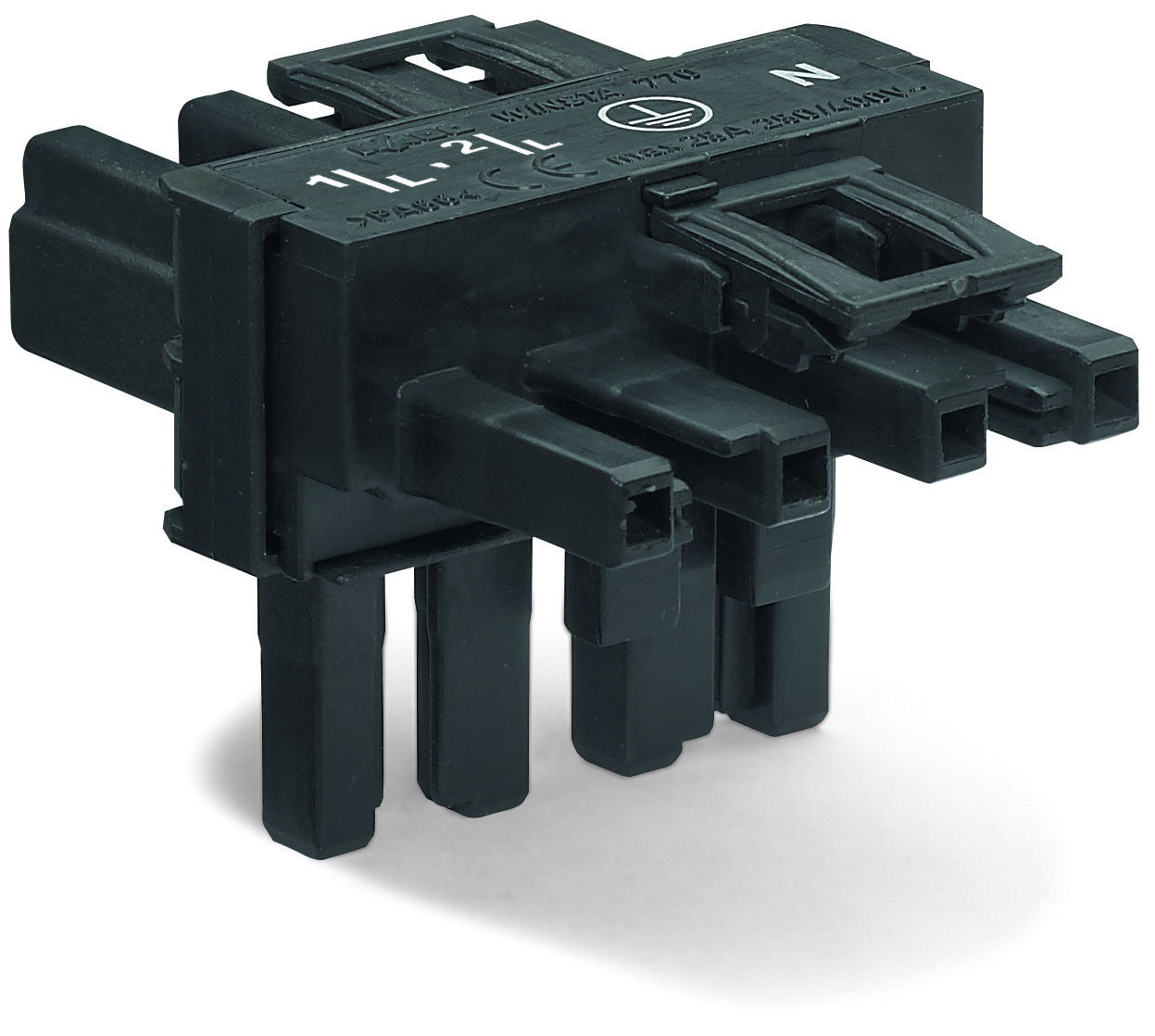

T-distribution connector 4-pole Cod. A black

Name: T-distribution connector 4-pole Cod. A black
Brand: Wago
SKU: 770-626
Availability: InStock

T-distribution connector; 4-pole; Cod. A; 1 input; 2 outputs; 2 locking levers; black

Product identifiers

SKU: 770-626

EAN: 4044918935074

GTIN: 4044918935074

MPN: 770-626

Price: £ 4.50 Excl. VAT

Specifications

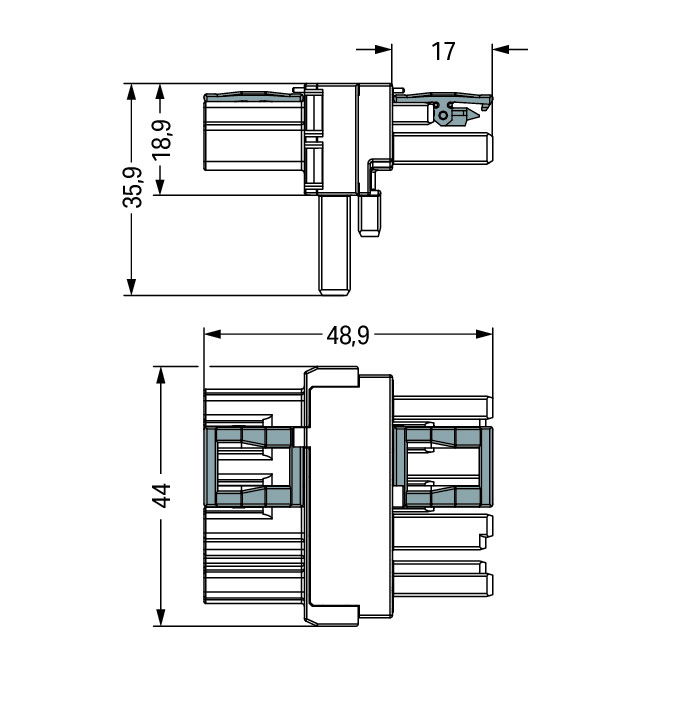

Width	44
Height	35.9
Length	48.9
Fire load	0.11639
Halogen free	yes
Phase pickup	-
Rated current	25
Rated voltage	400
Number of poles	4
Type of locking	Integrated in plug-in connector
Contact material	CuSn
Housing material	Polyamide (PA)
Number of inputs	4
Pollution degree	3
Mechanical coding	yes
Number of outputs	8
Pole codification	Other
Rated surge voltage	6
Type of distributor	T-distributor
Mounting possibility	No
Continuity resistance	1
Degree of protection (IP)	IP20
Rated current to luminaire	25
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Type of integrated switching	None
RAL-number coding/contact insert	-
Colour of the separate adapter piece	-
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
