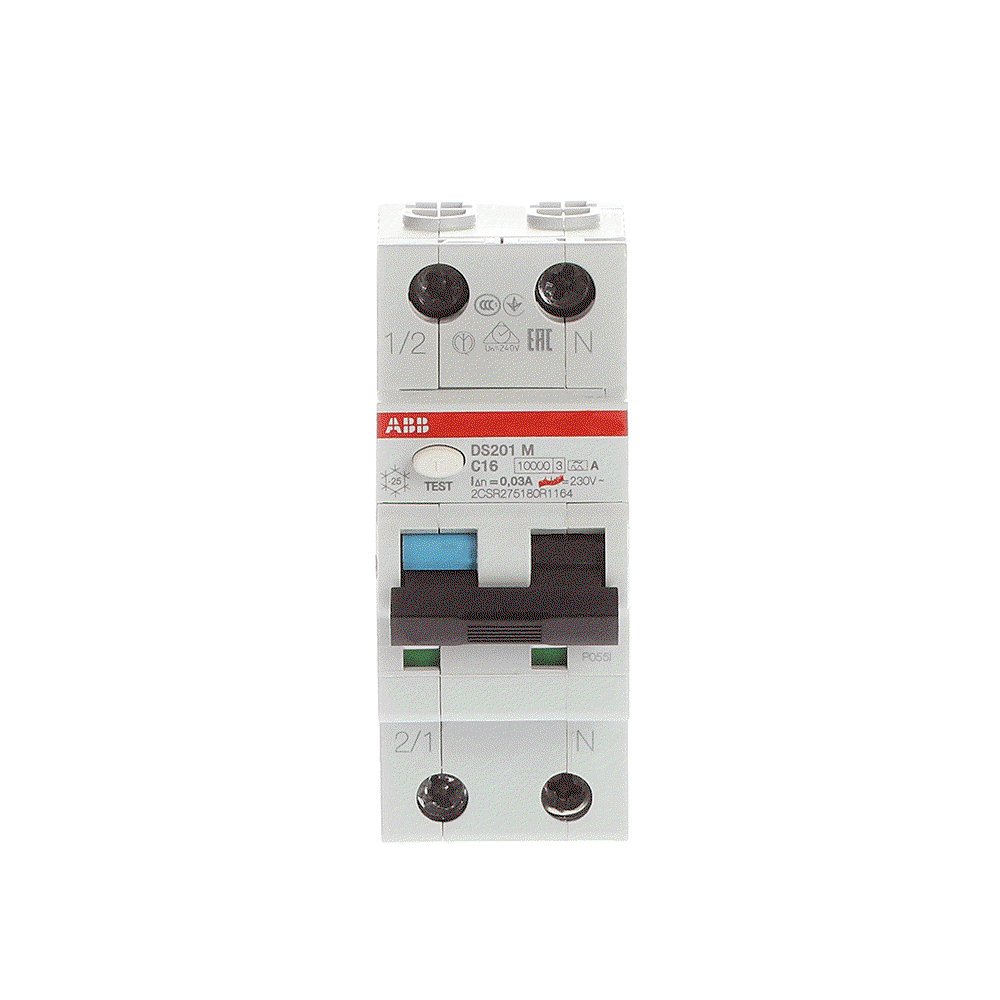

Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 16 A - C - Type A

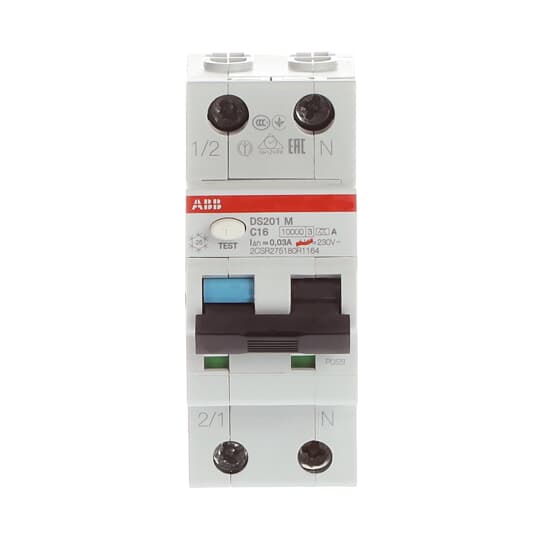

Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 16 A - C - Type A – Image 2 of 4

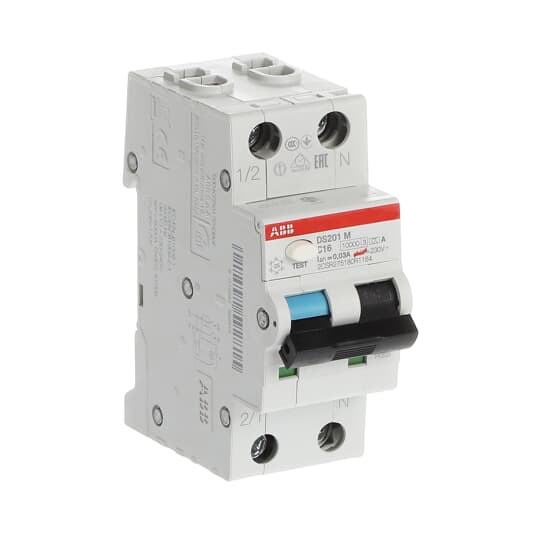

Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 16 A - C - Type A – Image 3 of 4

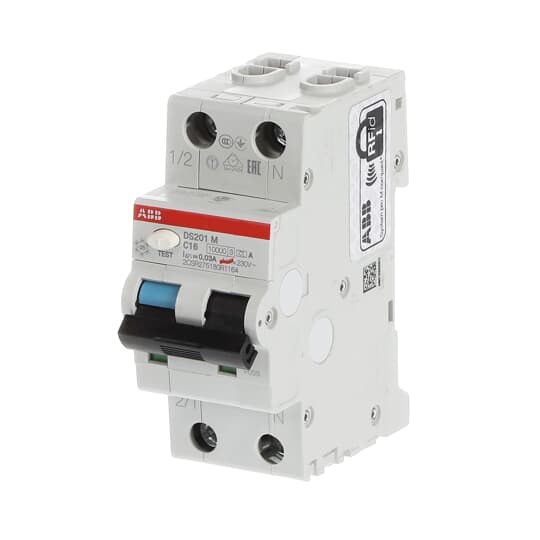

Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 16 A - C - Type A – Image 4 of 4

1 / 4

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 16 A - C - Type A

Name: Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 16 A - C - Type A
Brand: ABB
SKU: 2CSR275180R1164
Availability: InStock

Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 16 A - C - Type A by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components and TLA. It is currently in stock at 2 of them. Trade prices range from £113.28 to £166.59 excl. VAT. Voltimum+ members earn 73 points per unit.

The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts.

Product identifiers

SKU: 2CSR275180R1164

EAN: 8012542592815

GTIN: 8012542592815

MPN: DS201 M C16 A30

Loyalty points: 73

Price range: £ 113.28 - £ 166.59 Excl. VAT

Specifications

Frequency	Other
Power loss	4.5
Voltage type	AC
Rated current	16
Rated voltage	240
Built-in depth	69
Pollution degree	2
Rated fault current	0.03
Leakage current type	A
Over voltage category	3
Current limiting class	3
Release characteristic	C
Surge current capacity	-
Number of poles (total)	2
With interlocking device	no
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	no
Rated insulation voltage Ui	500
Disconnection characteristic	Undelayed
Anti-nuisance tripping version	no
Width in number of modular spacings	2
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	yes
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity according to EN 61009	10
Rated short-circuit breaking capacity according to IEC 60947-2	15
Rated short-circuit breaking capacity Icn according to EN 61009-1	10
