Pilot light 3 phases voltage, indicator with 3 LED, white, 400 V AC

Link copied
SKU
EAN
GTIN
MPN

Pilot light 3 phases voltage, indicator with 3 LED, white, 400 V AC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £117.04 to £200.99 excl. VAT. Voltimum+ members earn 25 points per unit.

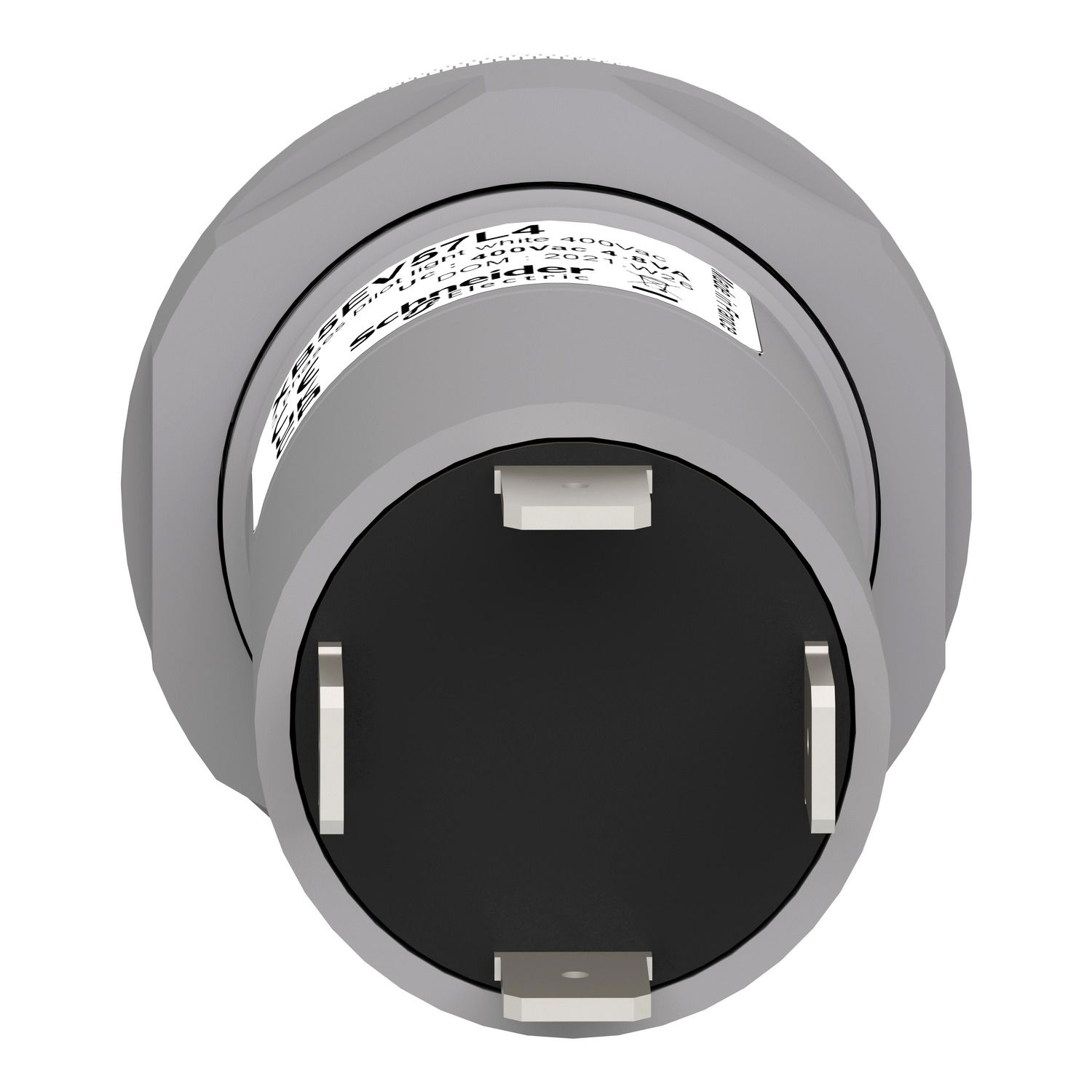

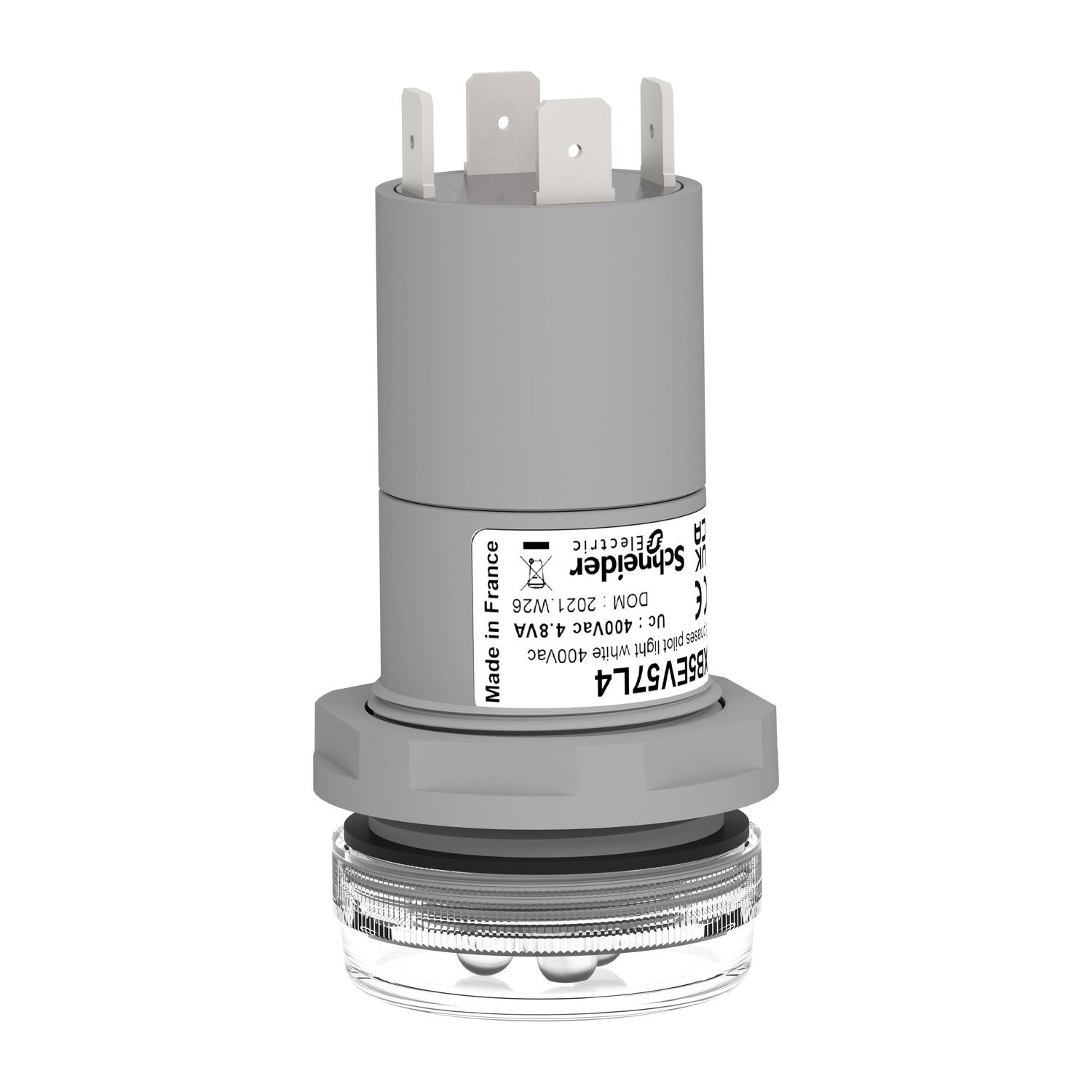

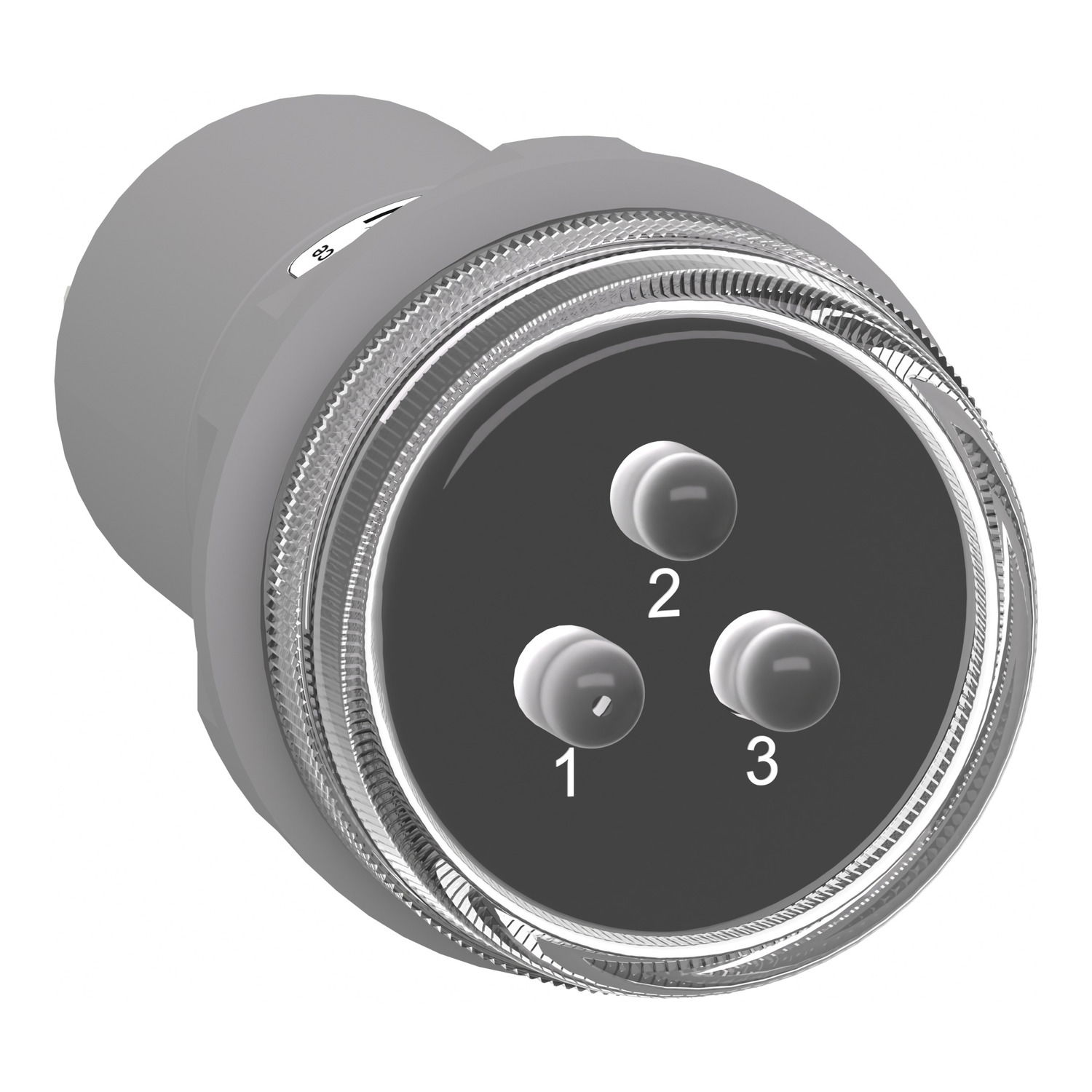

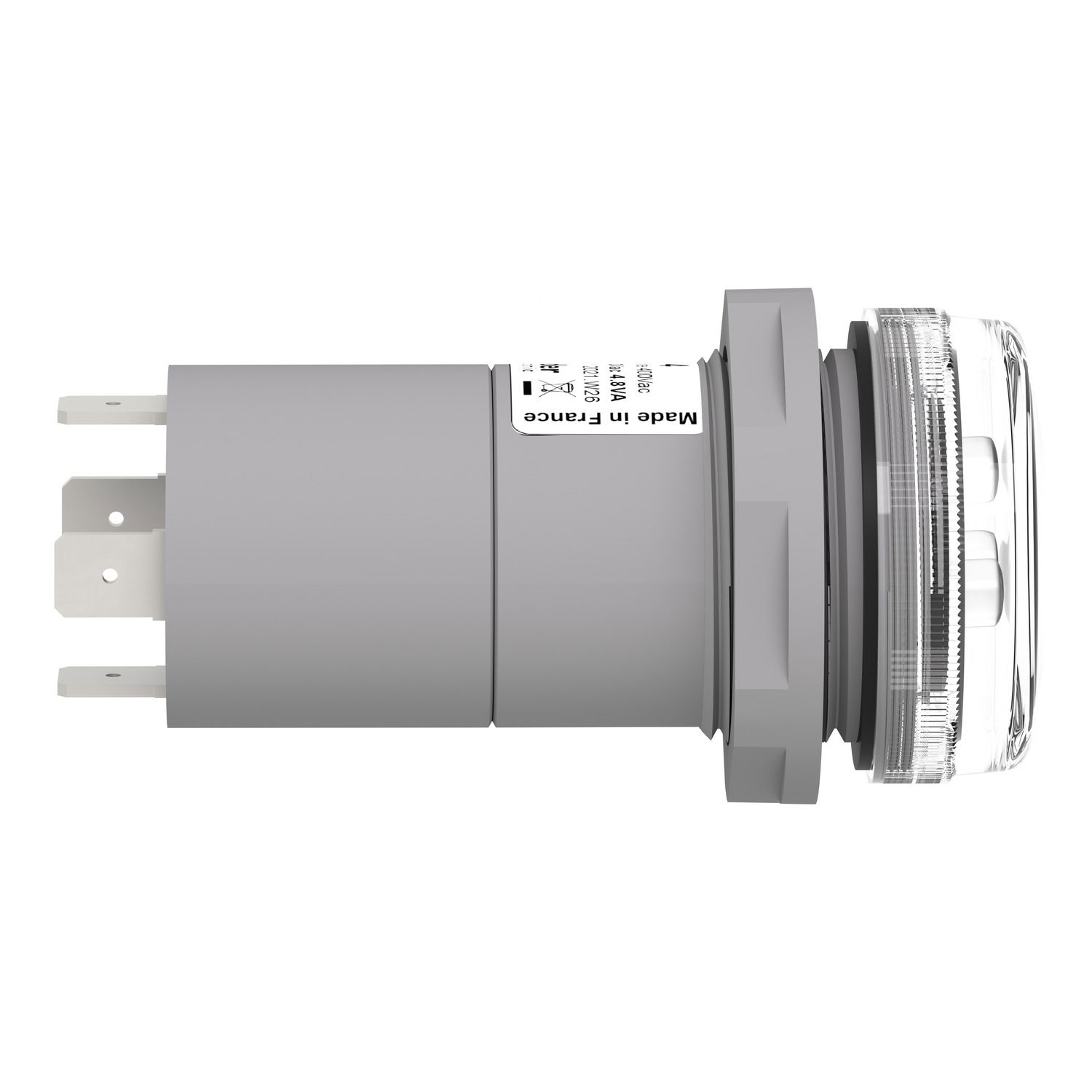

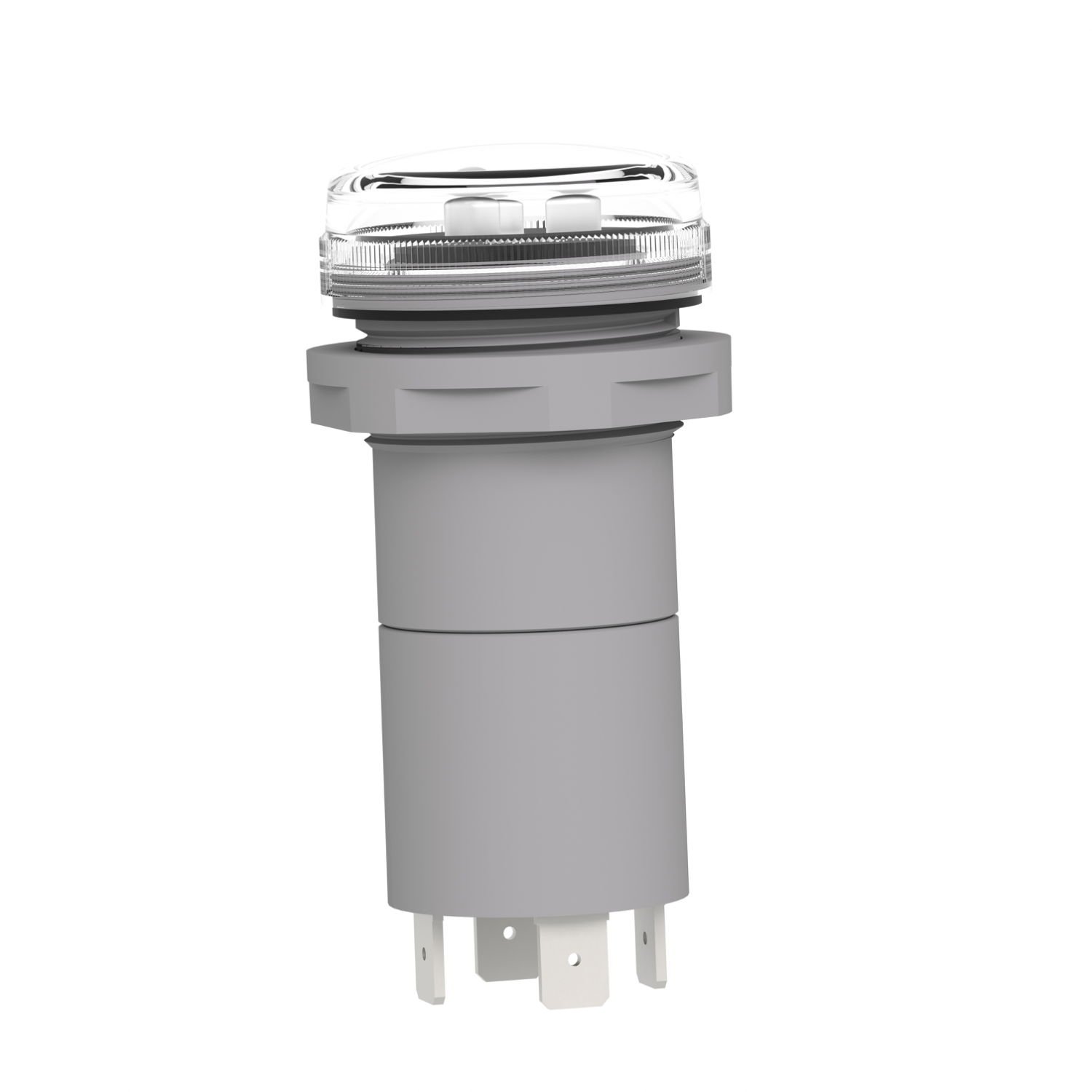

This Harmony XB5, plain lens monolithic white 3-phase voltage presence indicator pilot light, is supplied with a 3-phase 400V AC voltage, uses an integral LED and uses screw clamp terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67. It is ideal for incoming section in main and secondary low voltage switchboards. It is designed to fit in a standard 22mm cutout.

Voltimum+ Loyalty Programme Loyalty points: 25

Price range: £ 117.04 - £ 200.99 Excl. VAT

Specifications

Colour lens White
Type of lens Flat
Voltage type AC
Hole diameter 30 mm
Width opening -
Height opening -
With front ring yes
Colour front ring Other
Material front ring Plastic
Construction type lens Round
Number of indicator lights 3
Degree of protection (NEMA) Other

Documents

Declaration of Conformity (Sustainability)

XB5EV57L4 REACh Regulation

Open

Instruction sheet

XB5EV57.4 3 phases voltage indicator pilot light with 3 LED, Instruction Sheet

Open

Product data sheet

Open

Technical illustration

Open

Technical illustration

Open

Technical illustration

Open

Technical illustration

Open

Technical illustration

Open
