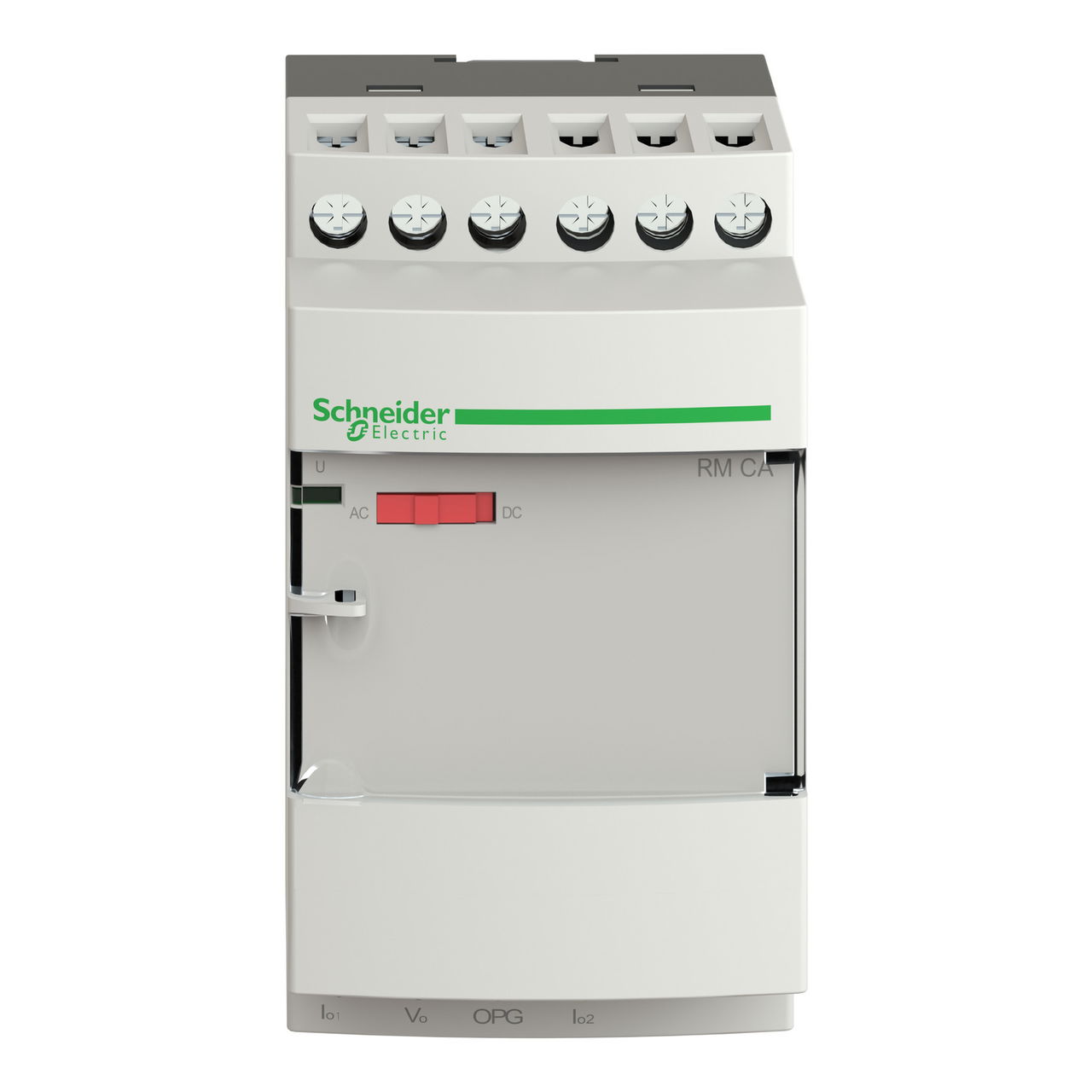

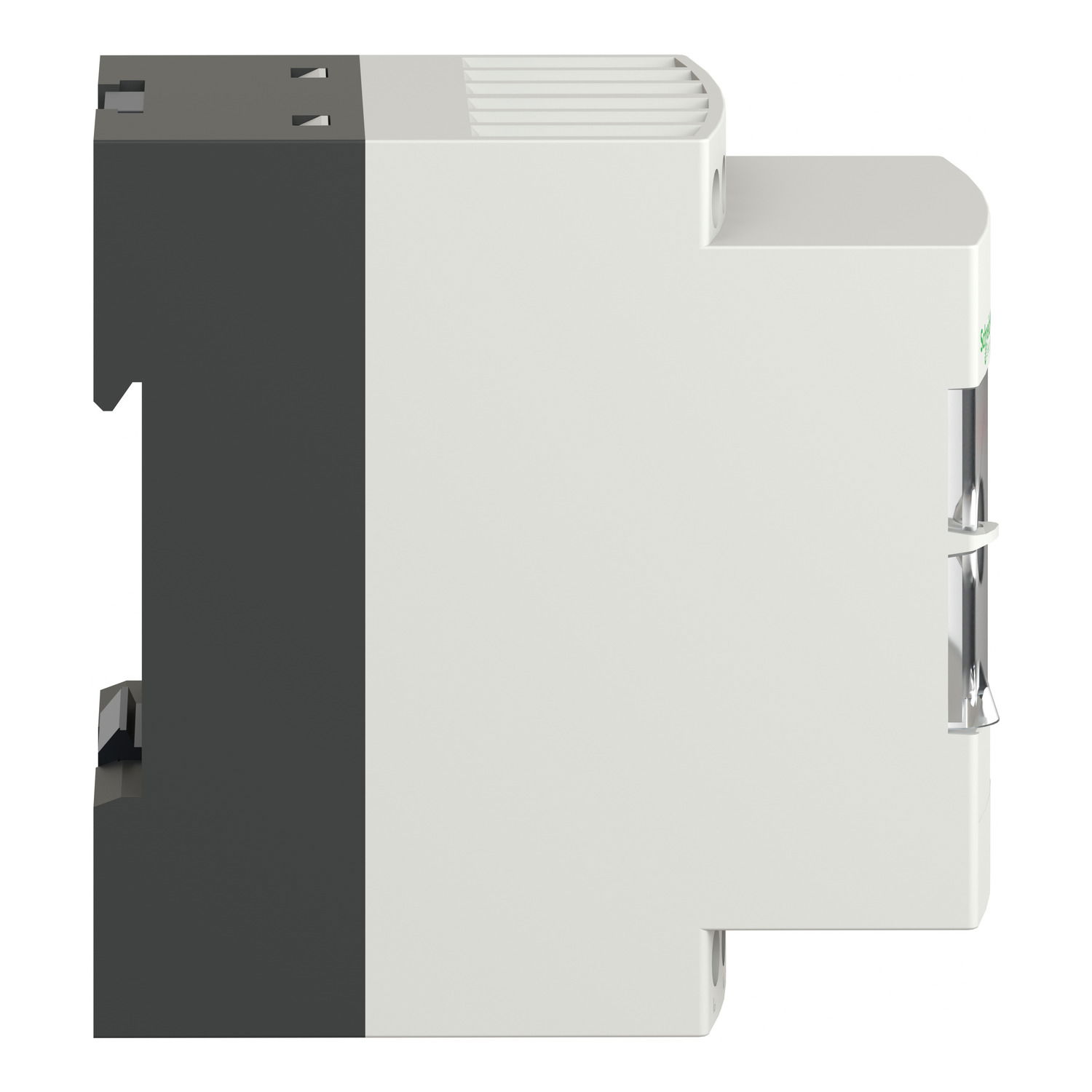

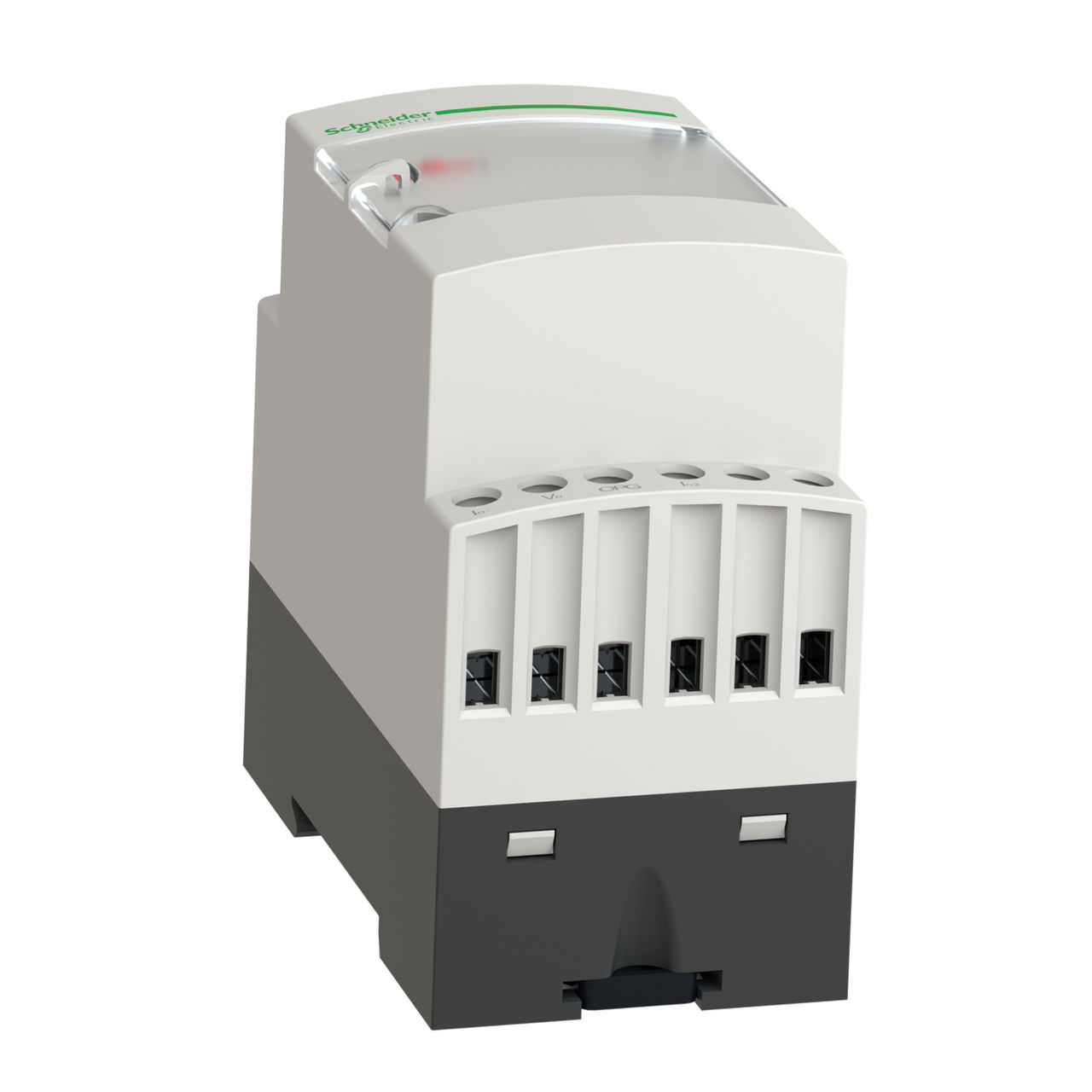

Isoled Analog Converter - 0..5 A - for Harmony Analog

Link copied
SKU
EAN
GTIN
MPN

Isoled Analog Converter - 0..5 A - for Harmony Analog by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd and Farnell. It is currently in stock at 1 of them. Trade prices range from £128.00 to £195.52 excl. VAT. Voltimum+ members earn 28 points per unit.

This voltage/current converter is part of the Harmony Analog range. It allows conversion of electrical power signals, both AC and DC. Its supply voltage is 24V DC, isolated. It features for current inputs with a range of 0A to 1.5A, 0A to 5A, 0A to 15A (AC/DC). It has outputs with a switchable voltage/current range of 0V to 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.140Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0 0 0 0

Voltimum+ Loyalty Programme Loyalty points: 28

Price range: £ 128.00 - £ 195.52 Excl. VAT

Specifications

Model Through-feed current converter
Calibrated yes
Snap mounting yes
Width opening
Accuracy class 1
Height opening
Opening diameter -
With copper rail yes
Secondary connection Screw connection
Rated secondary current 0.02 A
Number of primary inputs 1
Rated secondary apparent power -
