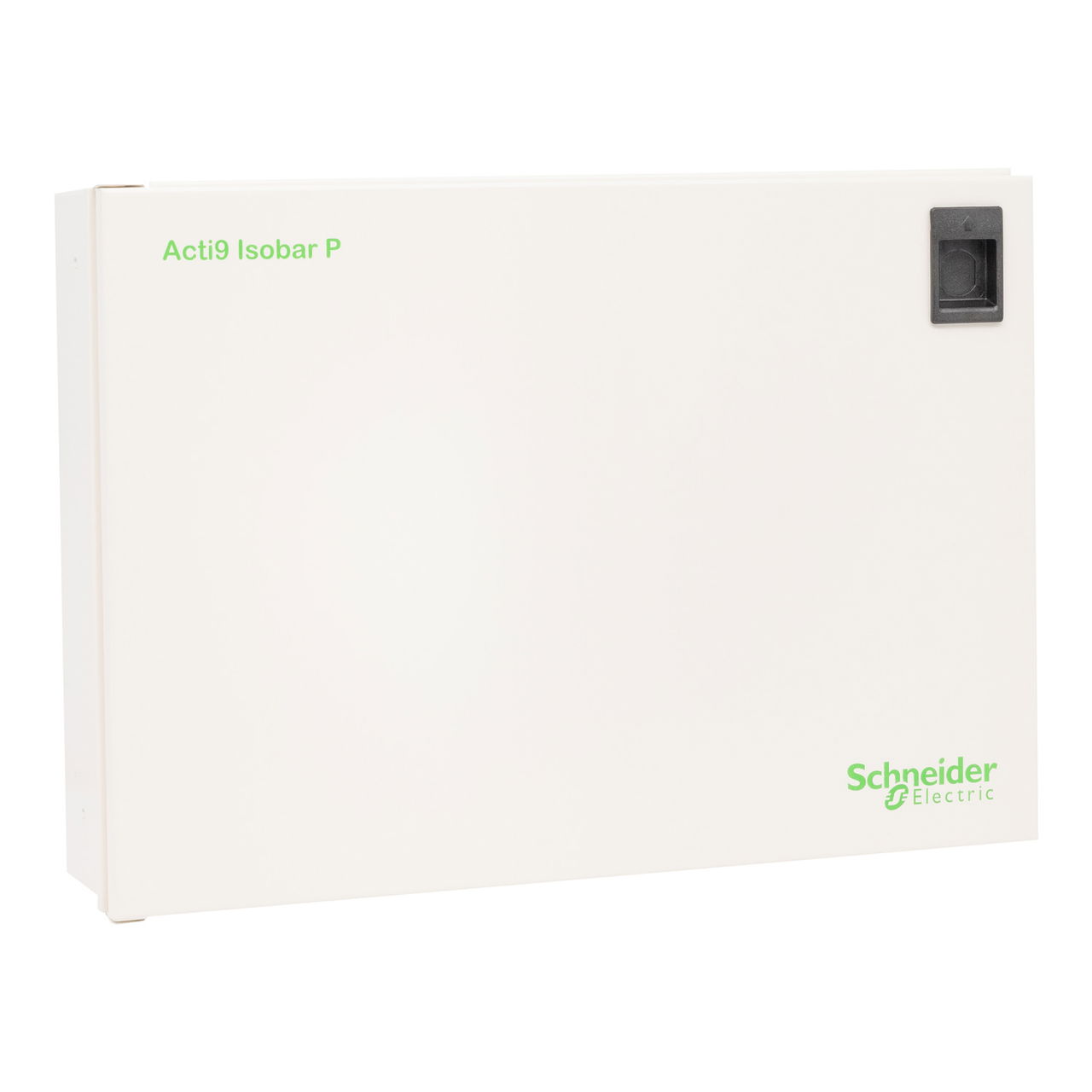

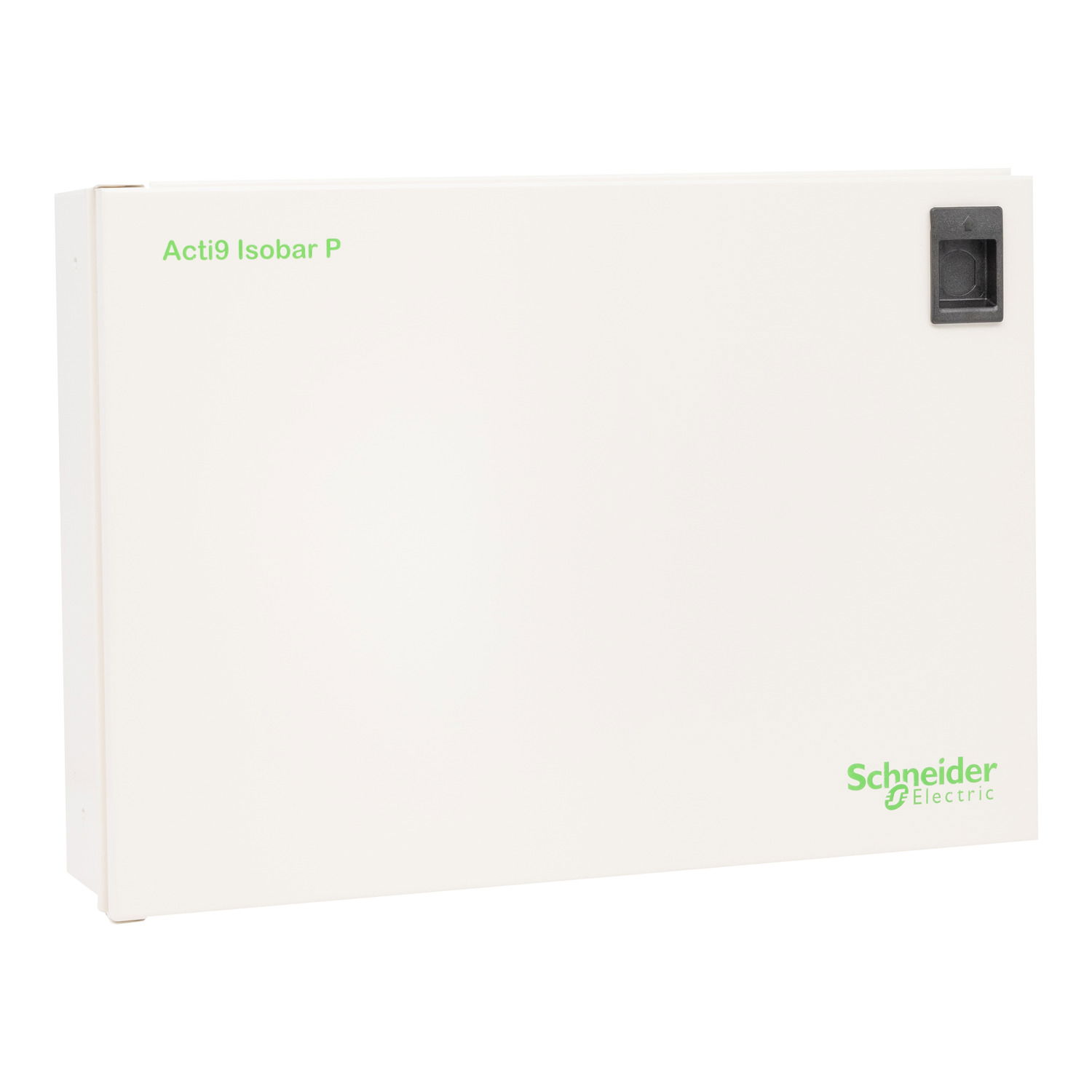

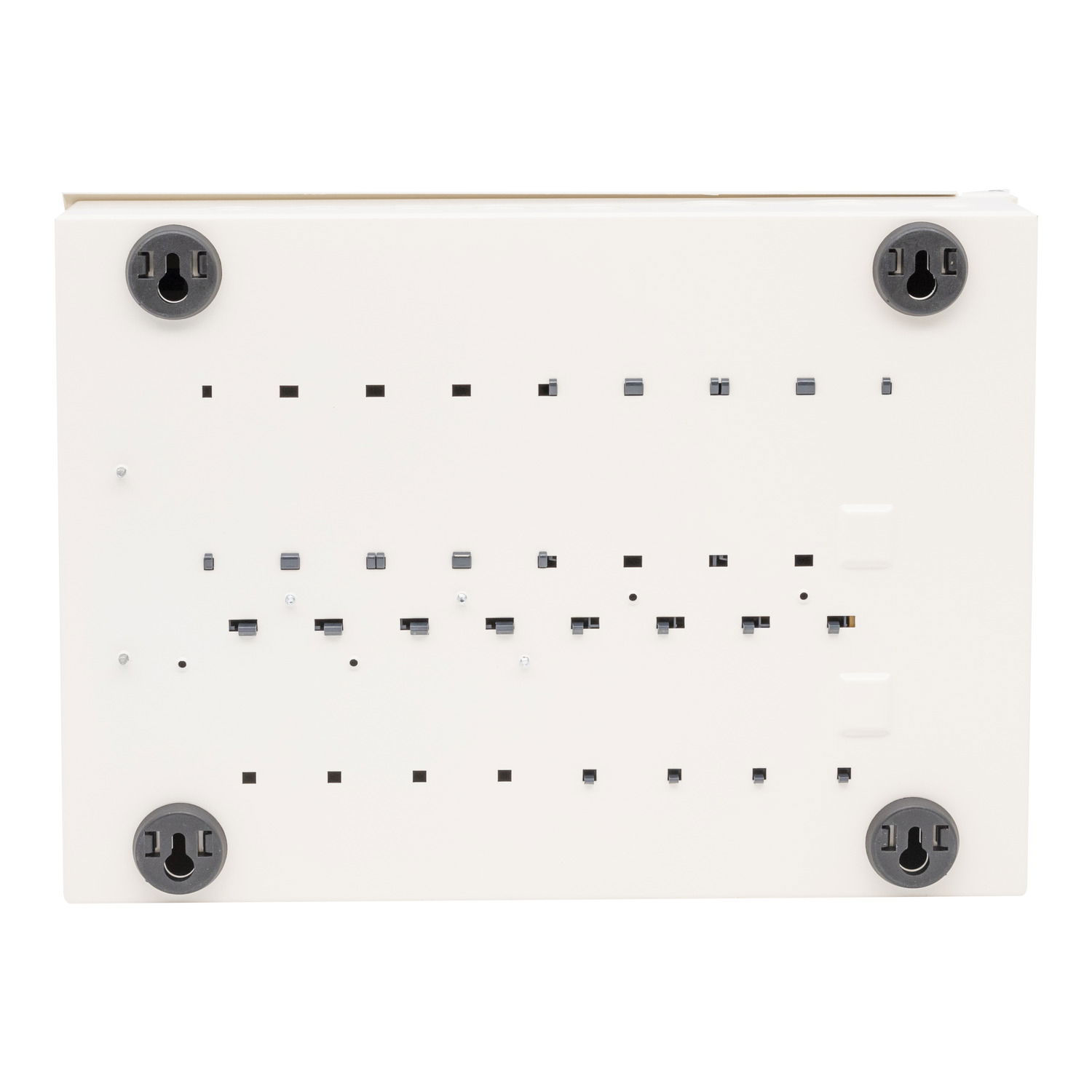

Acti9 Isobar P A - din multi service distribution board - 6 + 8 ways SP+N

Link copied
SKU
EAN
GTIN
MPN

Acti9 Isobar P A - din multi service distribution board - 6 + 8 ways SP+N by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd and Rexel Group. It is currently in stock at all of them. Trade price £159.09 excl. VAT. Voltimum+ members earn 26 points per unit.

Din multi service distribution board designed for single-phase applications. This model features 6 outgoing SP+N ways plus 8 additional DIN ways, offering flexibility for mixed loads and future expansion. This distribution board include a 2P switch disconnector,2P terminal block,2P RCCB incomer. It is suitable for standard, commercial and industrial applications. According to BS/EN 60529 standard, the IP degree of protection is IP3x.

Voltimum+ Loyalty Programme Loyalty points: 26

Price: £ 159.09 Excl. VAT

Specifications

Depth 117 mm
Width 417 mm
Colour Other
Height 300 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block yes
Earthing terminal block yes
Width in number of modular spacings 6

Documents

Declaration of Conformity (Sustainability)

SEA9APN616MS REACh Regulation

Open

Instruction sheet

Acti9 Isobar P Type A Instruction sheet

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

SEA9APN616MS EU RoHS Directive

Open

Declaration of conformity

EU declaration of conformity

Open

Declaration of Conformity (Sustainability)

SEA9APN616MS POP Directive

Open

Declaration of Conformity (Sustainability)

SEA9APN616MS OECD PFAS Regulation

Open
