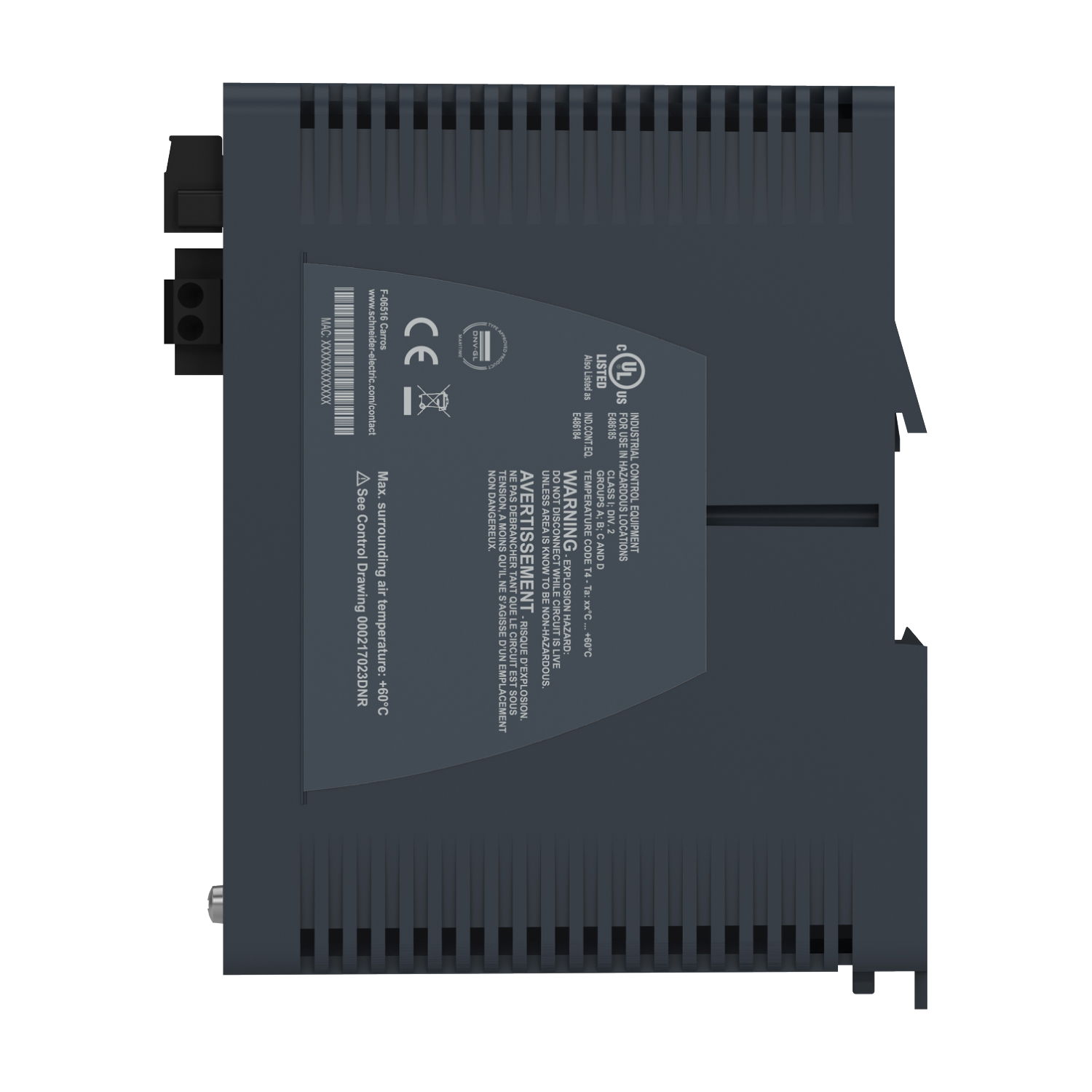

Modicon Managed Switch - 8 ports for copper
"This product is part of the Modicon Networking range, an offer of Modicon Standard Managed Switch." "This managed switch comes with Ethernet TCP/IP protocol." "It comes with 8 copper cable transmission ports." "It provides simple and complex connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features." "This product works at a power consumption of 6W and a rated voltage from 12V to 24V DC." "It has a removable 6-pin power supply connector." "Its dimensions are 73mm (width) x 138mm (height) x 111mm (depth) and weighs 0.42 kg." "It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels." "It is CE, UL, RCM, EAC, UKCA, DNV certified and conforms to UL 61010, EN/IEC 61131 and EN/IEC 62368-1 standards." "It is designed to be mounted on a 35mm symmetrical DIN rail." "It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device." "The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network."
Product identifiers
SKU: MCSESM083F23F0
EAN: 3606481463296
GTIN: 3606481463296
MPN: MCSESM083F23F0
Loyalty points:
331
Price: £ 662.00 Excl. VAT
Categories
ETIM Group
Specifications
| Depth | 104 mm |
| Width | 73 mm |
| Height | 138 mm |
| Layer 2 | yes |
| Layer 3 | no |
| EFFR0001 | no |
| EFFR0002 | no |
| Ethernet | no |
