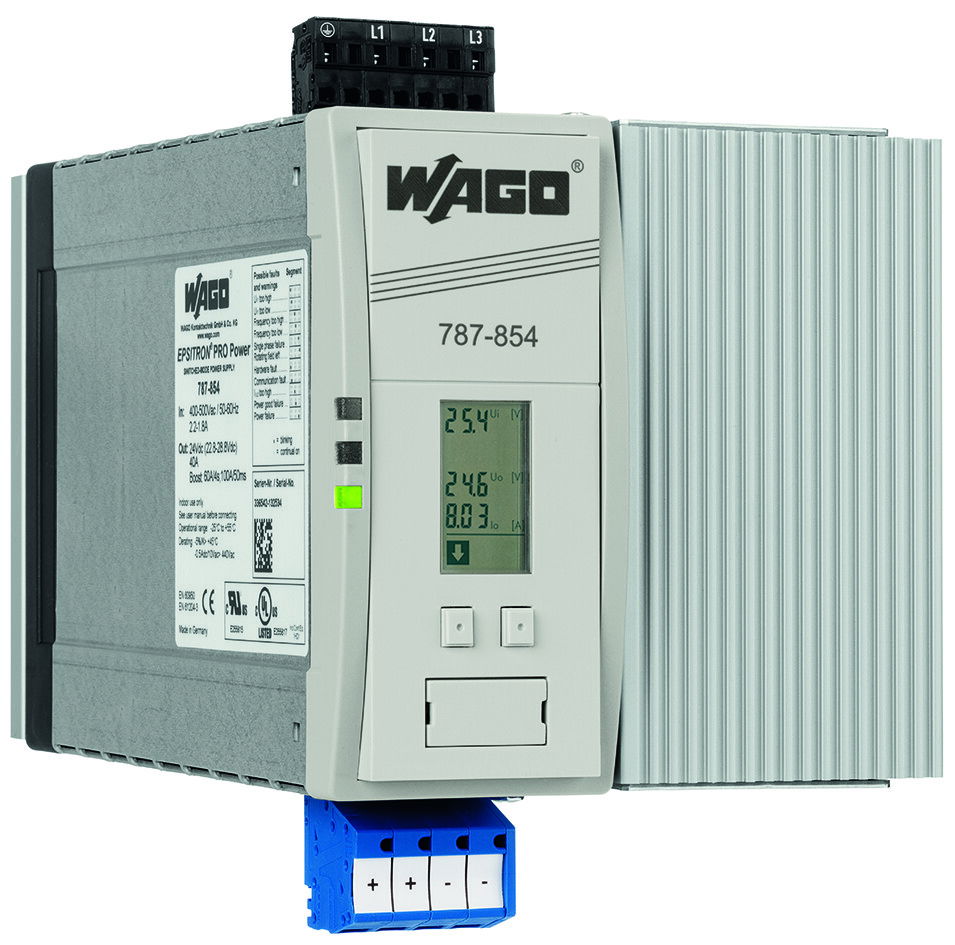

Switched-mode power supply Pro 3-phase

Switched-mode power supply Pro 3-phase

Switched-mode power supply; Pro; 3-phase; 24 VDC output voltage; 40 A output current; TopBoost + PowerBoost; LineMonitor; DC OK signal; 2,50 mm²

Product identifiers

SKU: 787-854
EAN: 4045454909895
GTIN: 4045454909895
MPN: 787-854

V+ Loyalty points:

1466

Price range: £ 623.19 - £ 725.97 Excl. VAT

Specifications

Depth 205
Width 128
Height 171
Stabilized yes
Power output 960
Built-in width -
Built-in height -
Modular version yes
Short-circuit-proof yes
Max. output current 2 -
Rated supply voltage DC 480 - 780
Degree of protection (IP) IP20
SIL according to IEC 61508 -
Suitable for wall mounting no
Type of electric connection Spring clamp connection
2nd secondary output voltage
Secondary voltage adjustable yes
Rated supply voltage AC 60 Hz 340 - 550
Voltage type (supply voltage) AC/DC
Nominal value output current 2 -
Nominal value output voltage 1 24
Nominal value output voltage 3 -
Performance level according to EN ISO 13849-1 -
