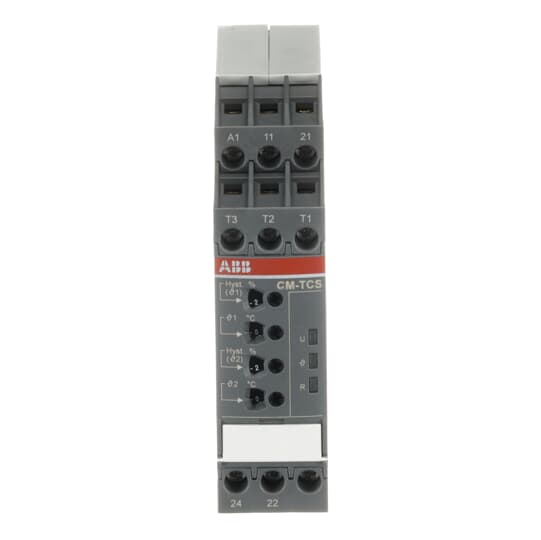

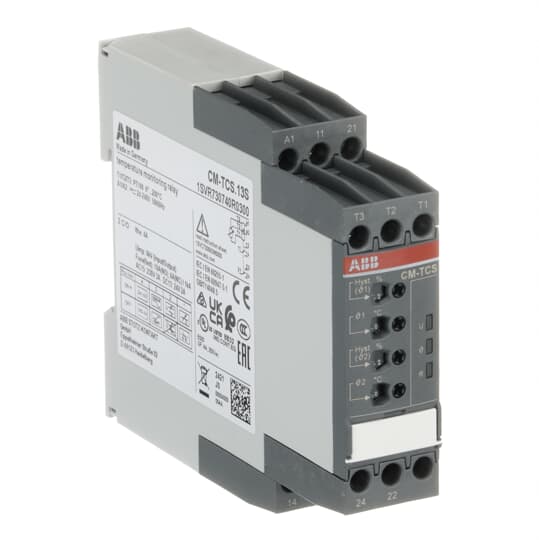

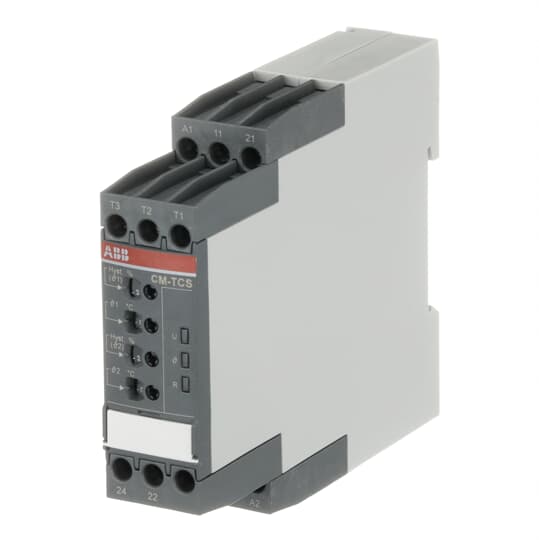

CM-TCS.13S Temperature monitoring relay Temp.-range 0...+200°C, 24-240VAC/DC

Link copied
SKU
EAN
GTIN
MPN

CM-TCS.13S Temperature monitoring relay Temp.-range 0...+200°C, 24-240VAC/DC by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £179.96 to £236.39 excl. VAT. Voltimum+ members earn 125 points per unit.

The CM-TCS.13S relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.13S is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.13S monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is 0..+200°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

Voltimum+ Loyalty Programme Loyalty points: 125

Price range: £ 179.96 - £ 236.39 Excl. VAT

Specifications

Depth 103.7
Width 22.5
Height 85.6
Supply voltage DC
Operating voltage DC
Rated switch current 4
With detachable clamps no
External reset possible no
Supply voltage AC 60 Hz
Operating voltage AC 60 Hz
Error registration possible no
Type of electric connection Screw connection
Voltage type (supply voltage) AC/DC
Connection type auxiliary circuit Other
Number of contacts as normally open contact 0

Documents

Deeplink product page

Open

Deeplink REACH

1SVD981001-4501_en_C_REACh Info for Electronic Relays and Controls.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

Open

Product data sheet

Open

Declaration RoHS

1SVD981001-4401_ROHS_Electronic Relays and Controls_revB_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

1SVD981015-0005.pdf

Open

Declaration EPD (Environmental Product Declaration)

ABBG-00438-V01.01-EN.pdf

Open
