Schneider Electric
Popularity Top 30% More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

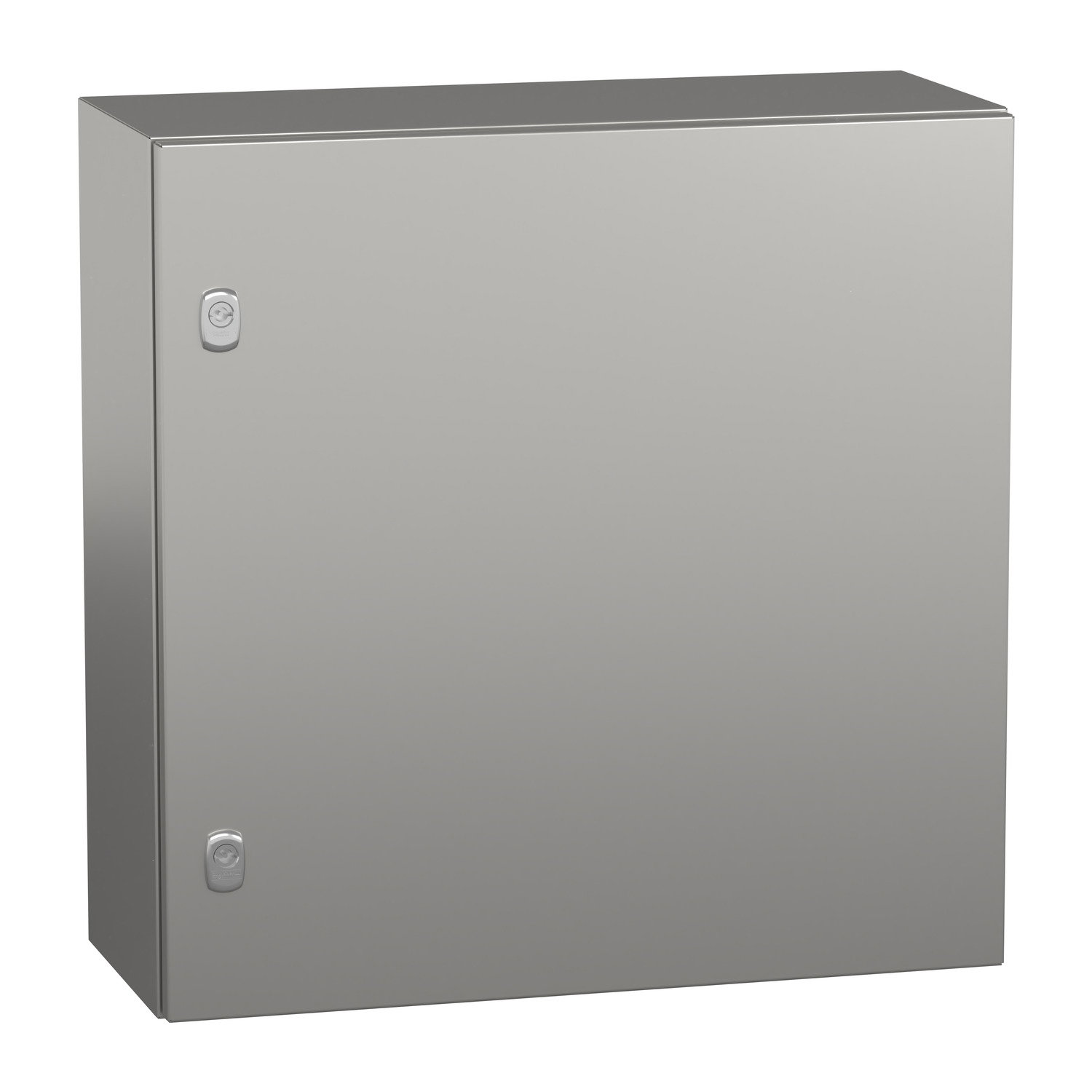

"PanelSet S3X stainless 304L, Scotch Brite® finish, H600xW600xD250 mm."

"PanelSet S3X stainless 304L, Scotch Brite® finish, H600xW600xD250 mm." by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 3 of them. Trade prices range from £493.03 to £547.21 excl. VAT. Voltimum+ members earn 69 points per unit.

"PanelSet S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and resistance to corrosion" "It has a nominal height, width and depth of 600mm, 600mm and 250mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a plain door and two locks" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a two lock points lock with a 3mm double-bar insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 13,902kg" "It has a high resistance to dust and water with an IP66 rating (IEC60529) and it can withstand high impact due its IK10 (IEC62262)" "It is certified to UL 508 type A and CAN/CSA 22 standards"

Product identifiers

SKU: NSYS3X6625
EAN: 3606480155246
GTIN: 3606480155246
MPN: NSYS3X6625

Voltimum+ Loyalty Programme Loyalty points: 69

Price range: £ 493.03 - £ 547.21 Excl. VAT

Categories

Electrical Enclosures Enclosures & Panels

ETIM group

Control cabinet systems

Specifications

Depth 250 mm
Width 600 mm
Colour Stainless steel
Height 600 mm
Material Stainless steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Stainless steel 304 (V2A)
Surface finishing Other
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 12
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -

Documents

Declaration of Conformity (Sustainability)

NSYS3X6625 REACh Regulation

Open

Instruction sheet

PanelSeT S3X - Stainless Steel Wall-mounted Enclosure - Instruction sheet

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYS3X6625 EU RoHS Directive

Open

Declaration of conformity

Declaration of Conformity UE Spacial stainless steel cabinet S3X Range Version2

Open

Environmental Disclosure

PanelSeT S3X - Stainless Steel

Open

CAD

Open
