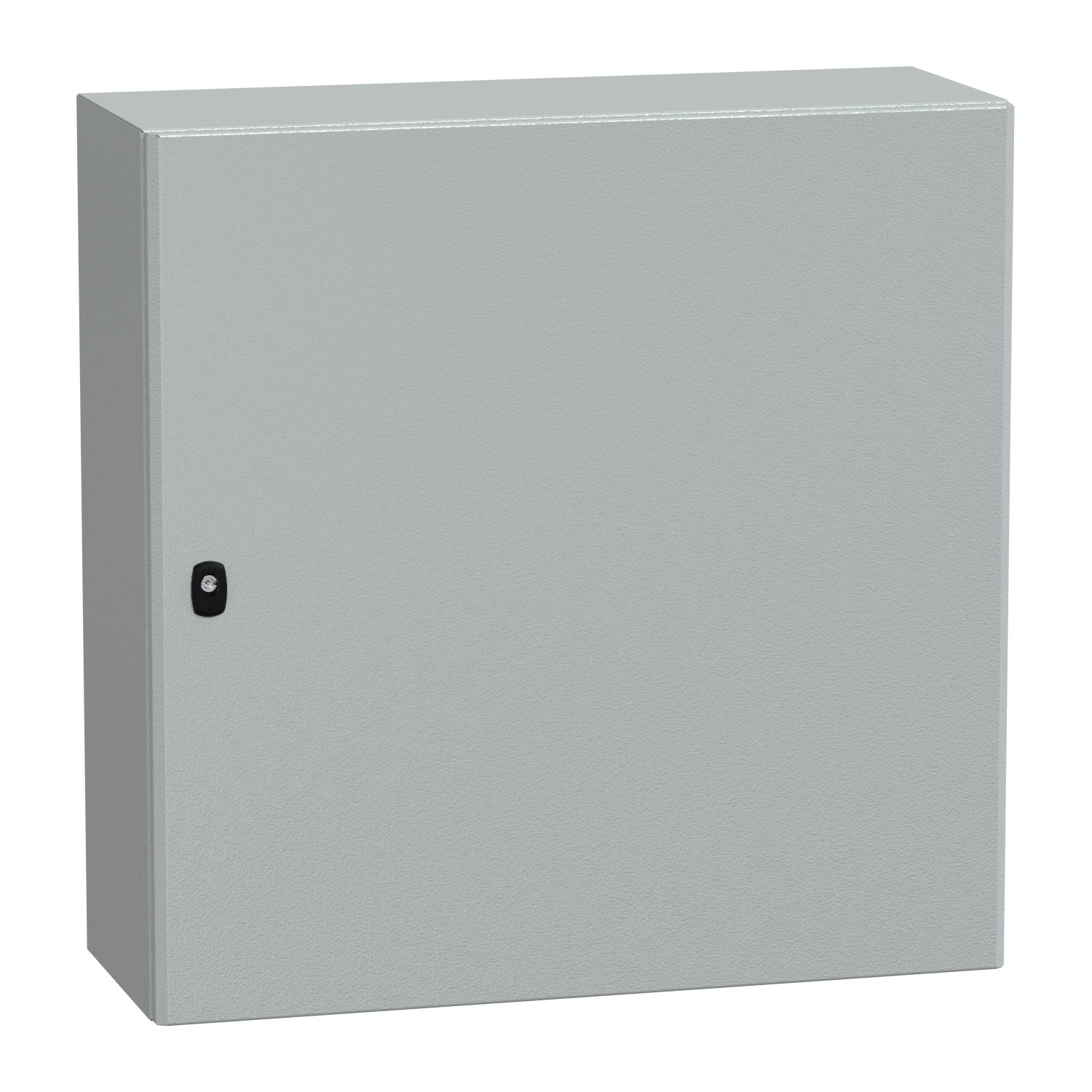

"Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 800x800x300mm, IP66, IK10"
PanelSeT S3D wall mounted steel enclosure with plain door. 800 x 800 x 300 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK10, Grey RAL 7035. 2 cable gland plates included, standard. Extensive range of accessories. Packaging is reusable after assembly.
Product identifiers
SKU: NSYS3D8830
EAN: 3606480158858
GTIN: 3606480158858
MPN: NSYS3D8830
Loyalty points:
38
Price range: £ 212.91 - £ 266.14 Excl. VAT
Categories
ETIM Group
Specifications
| Depth | 300 mm |
| Width | 800 mm |
| Colour | Grey |
| Height | 800 mm |
| Material | Steel |
| Couplable | no |
| With door | yes |
| RAL-number | 7035 |
