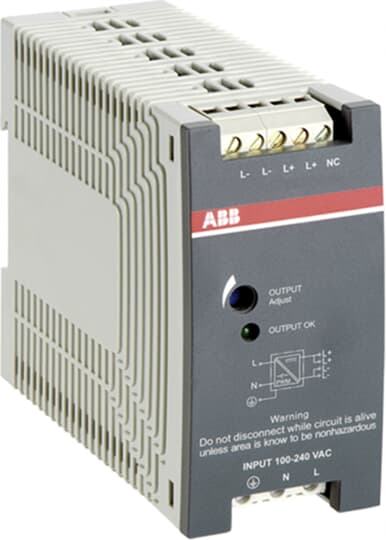

CP-E 24/1.25 Power supply In:100-240VAC Out: 24VDC/1.25A
ABB

CP-E 24/1.25 Power supply In:100-240VAC Out: 24VDC/1.25A

The CP-E 24/1.25 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 30 W, rated output current is 1.25 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic and allows parallel operation to enable redundancy. A further feature is the signalling output (transistor) for output voltage OK. A redundancy unit is available as accessory.

Product identifiers

SKU: 1SVR427031R0000
EAN: 4016779656870
GTIN: 4016779656870
MPN: CP-E 24/1.25

V+ Loyalty points:

36

Price: £ 65.59 Excl. VAT

Categories

Low-voltage industrial components

Features

Depth
114
Width
40.5
Height
90
Stabilized
yes
Power output
30
Built-in width
40.5
Built-in height
90
Modular version
no
Power consumption
36.7
Short-circuit-proof
yes
Max. output current 1
-
Max. output current 2
0
Max. output current 3
0
Wall mounting possible
no
Rated supply voltage DC
Direct mounting possible
no
Degree of protection (IP)
IP20
Output voltage stabilized
yes
SIL according to IEC 61508
None
Suitable for rail mounting
yes
Degree of protection (NEMA)
1
Type of electric connection
Screw connection
1st secondary output voltage
2nd secondary output voltage
3rd secondary output voltage
Secondary voltage adjustable
no
Rated supply voltage AC 50 Hz
Rated supply voltage AC 60 Hz
Suitable for safety functions
no
Voltage type (supply voltage)
AC/DC
Nominal value output current 1
1.25
Nominal value output current 2
0
Nominal value output current 3
0
Nominal value output voltage 1
24
Nominal value output voltage 2
0
Nominal value output voltage 3
0
Width in number of modular spacings
-
Performance level according to EN ISO 13849-1
None
