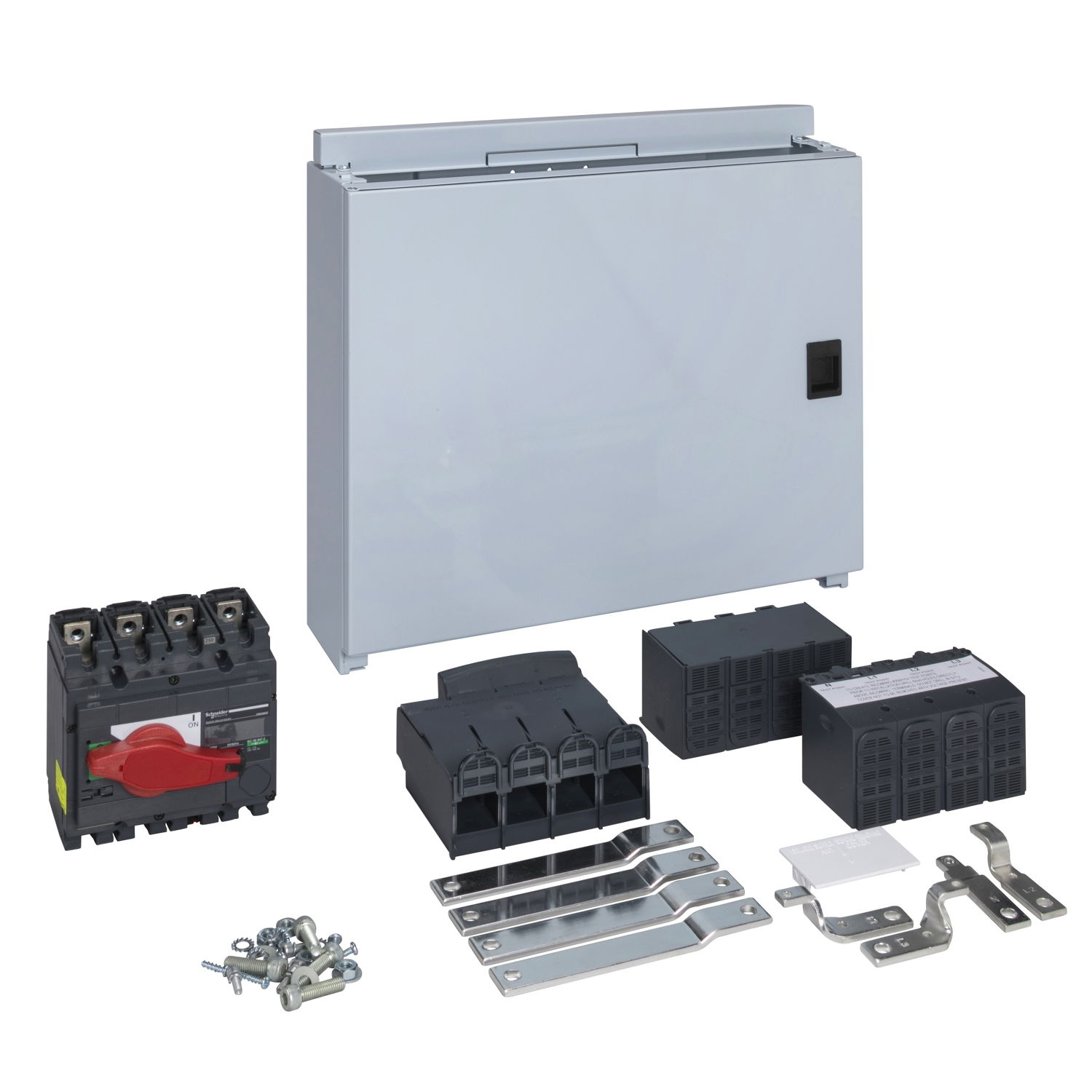

LoadCentre KQ - switch disconnector - 250A - 3P+N for type B distribution board

3x points on the Schneider Electric KQ range

LoadCentre KQ - switch disconnector - 250A - 3P+N for type B distribution board by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £582.65 to £777.00 excl. VAT. Voltimum+ members earn 167 points per unit.

This Acti9 load centre KQ II B product is a switch disconnector. Other switch disconnector options available The cable cross section capacity goes up to 185mm². The Ue rated operational voltage is up to 415V. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It is compatible with the use of a distribution board. This product is complies with BS EN 60947-3 standard.

Product identifiers

SKU: SE250SW3L
EAN: 5018934961415
GTIN: 5018934961415
MPN: SE250SW3L

Voltimum+ Loyalty Programme Loyalty points: 501

Price range: £ 582.65 - £ 777.00 Excl. VAT

Categories

Consumer Units Distribution Boards Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth -
Width -
Height -
Interlockable yes
Number of poles 4
Number of switches 1
Device construction Complete device in housing
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V -
Voltage release optional no
With pre-assembled cabling no
Suitable for floor mounting no
Max. rated operation voltage Ue AC 455 V
Suitable for front mounting centre no
Width in number of modular spacings -
Degree of protection (IP), front side IP40
Rated short-time withstand current lcw -
Version as maintenance-/service switch no
Rated permanent current at AC-23, 400 V -
Suitable for distribution board installation yes
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0
