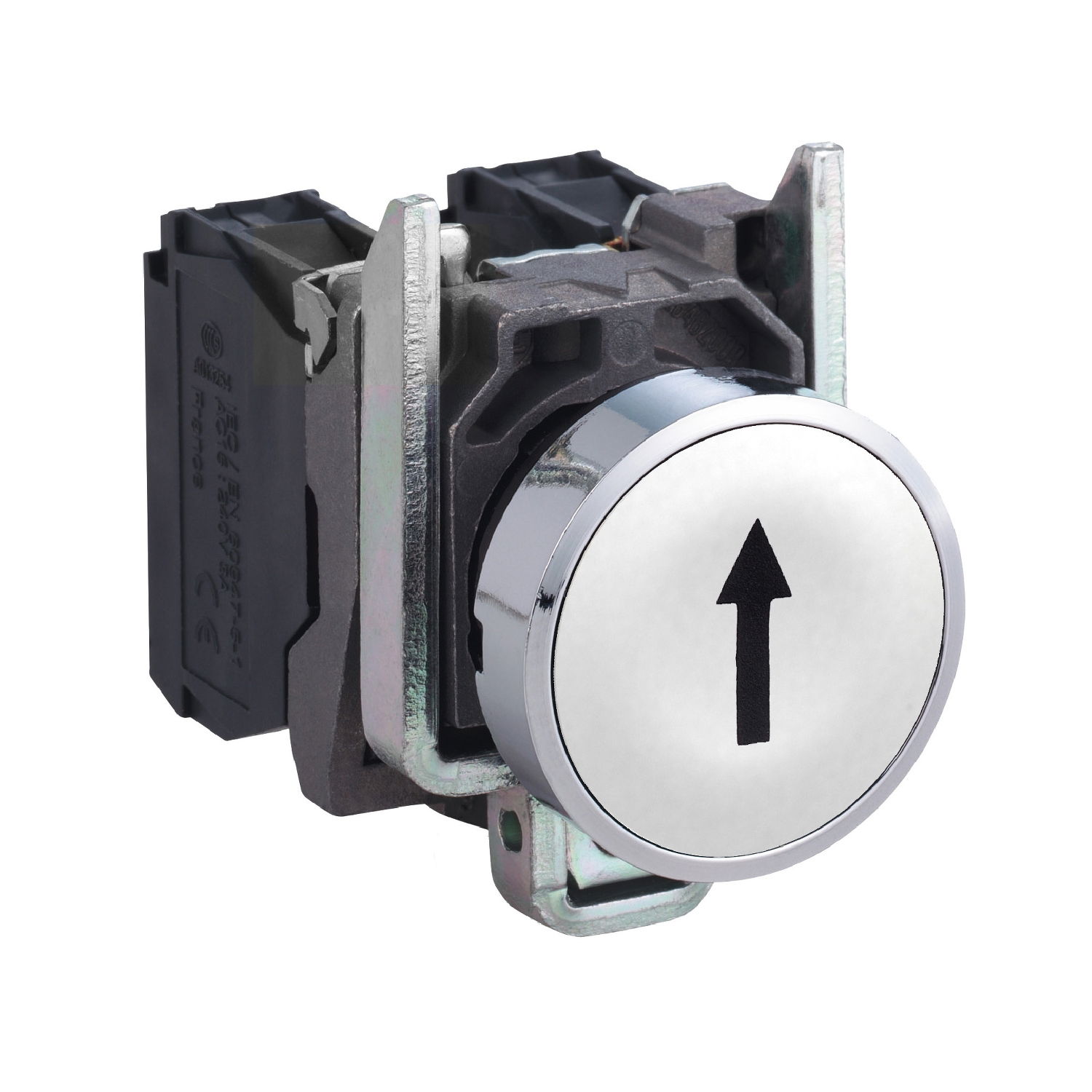

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO

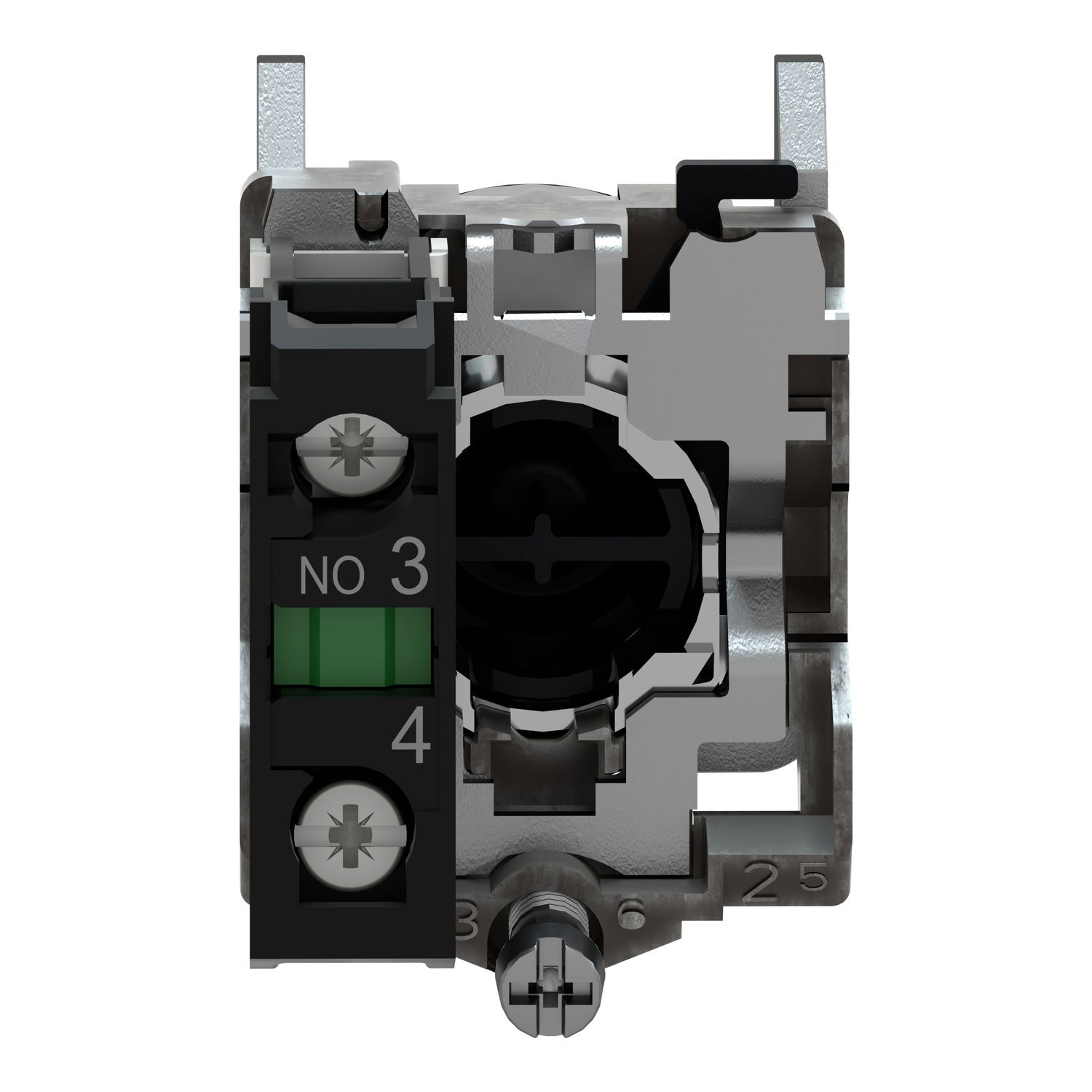

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 2 of 11

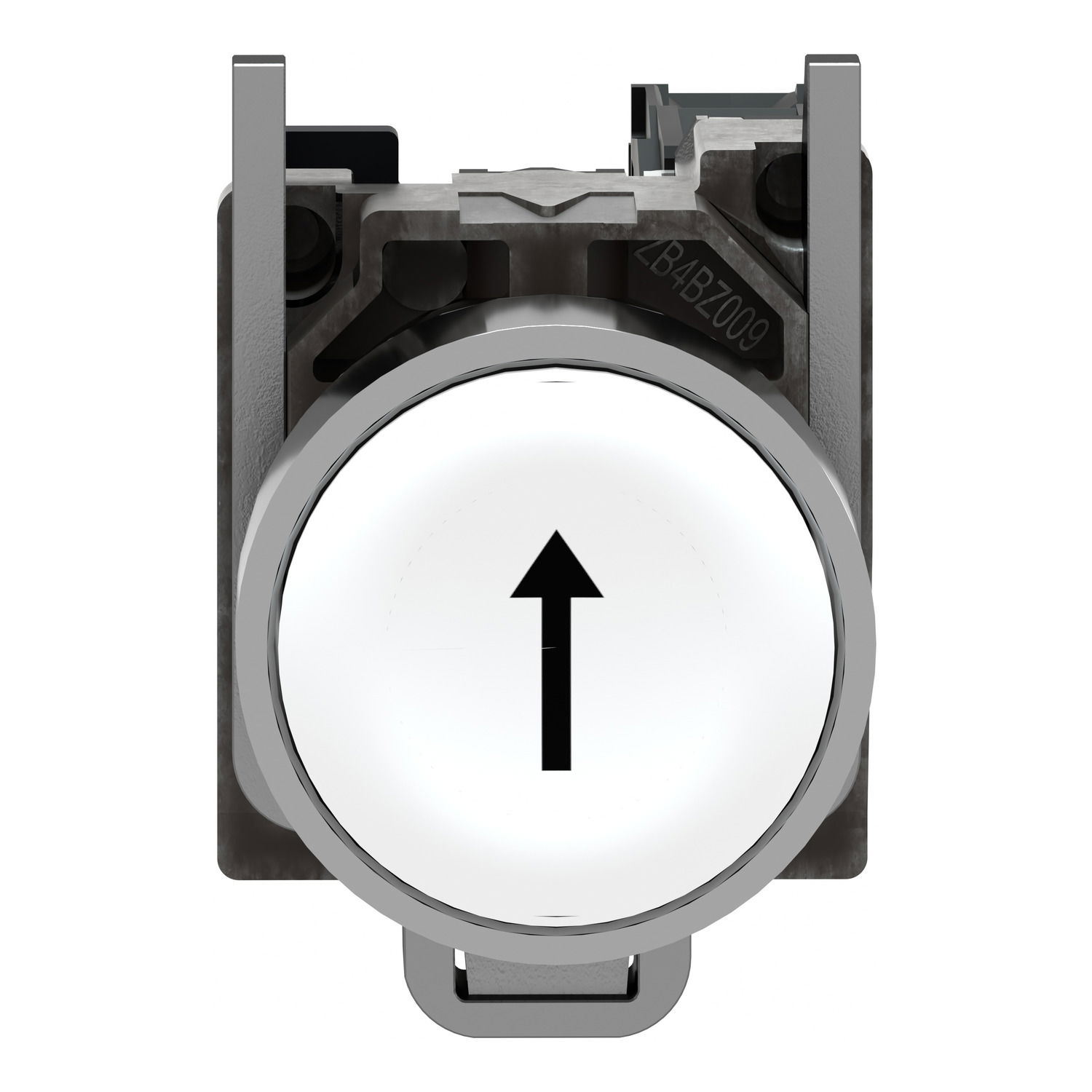

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 3 of 11

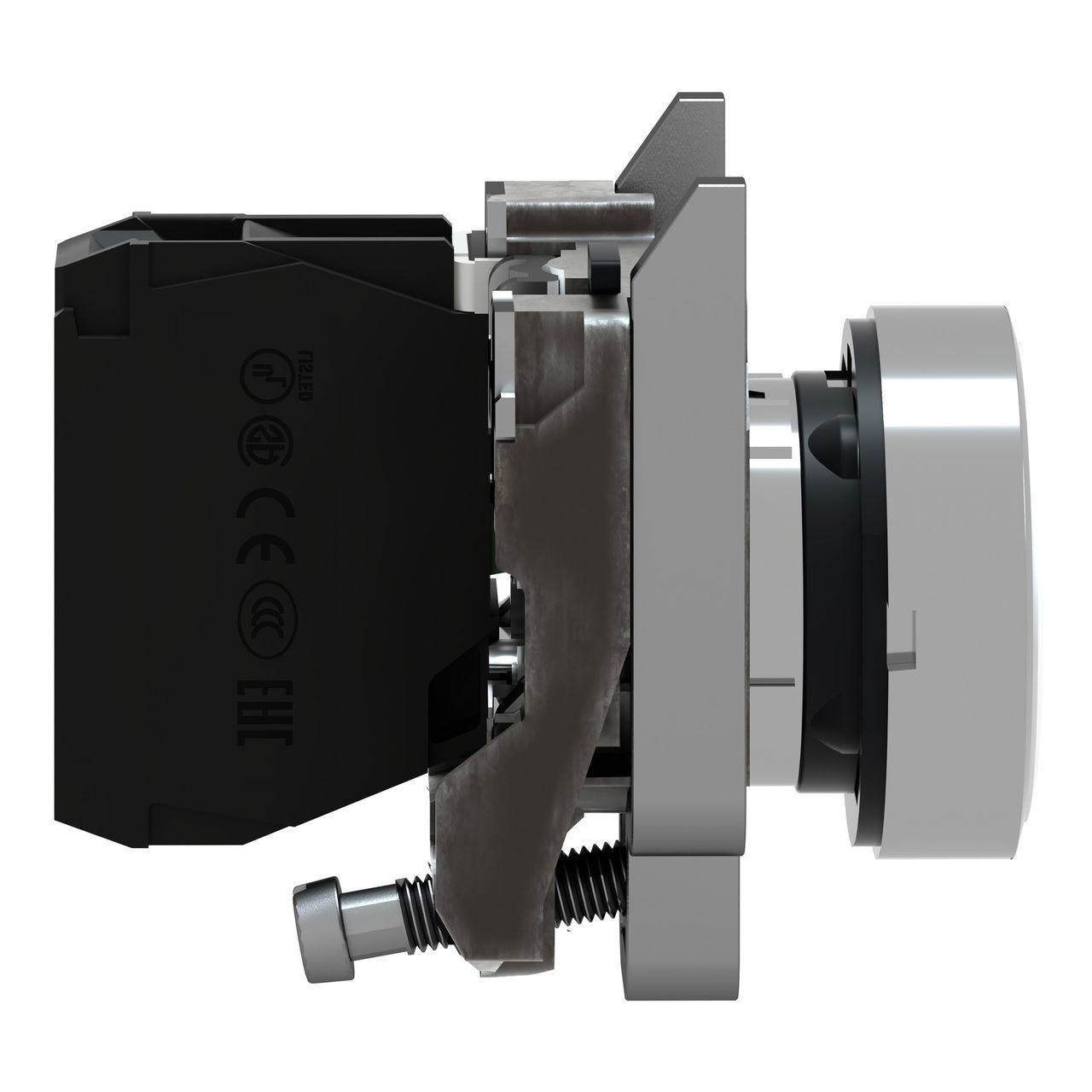

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 4 of 11

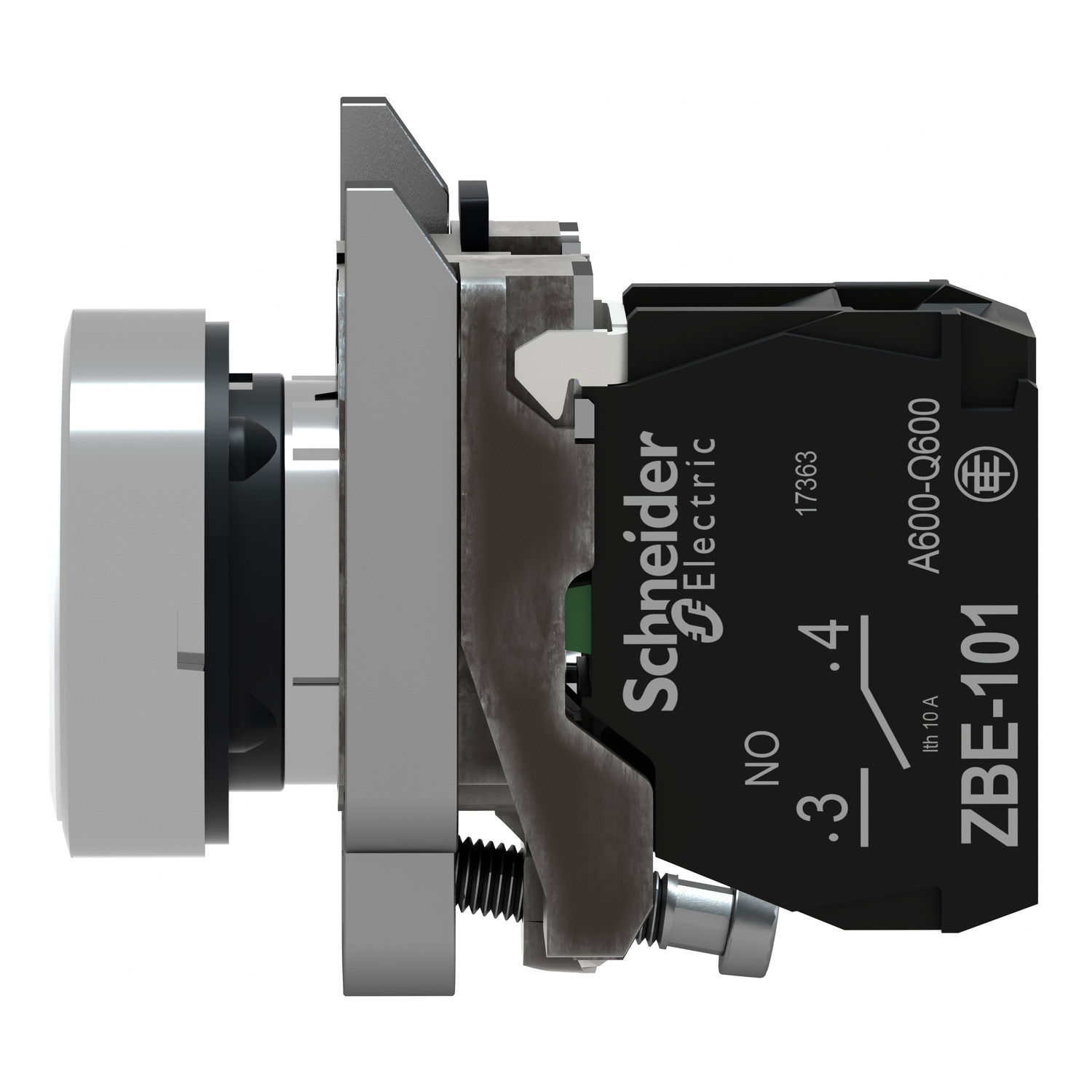

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 5 of 11

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 6 of 11

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 7 of 11

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 8 of 11

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 9 of 11

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 10 of 11

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO – Image 11 of 11

1 / 11

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO

Link copied

SKU
EAN
GTIN
MPN

Push button, metal, flush, white, Ø22, spring return, marked UP ARROW, 1 NO by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £10.69 to £18.36 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony XB4 modular white push button operates with a spring return / impulse mechanism. It has a metal bezel. It is marked with a "Up arrow" symbol. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Loyalty points: 2

Price range: £ 10.69 - £ 18.36 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Transparent	no
Colour button	White
Hole diameter	22.5 mm
Spring-return	yes
Width opening	-
Height opening	-
Type of button	Flat
With front ring	yes
Colour front ring	Chrome
Material front ring	Metal
Supply voltage lamp	-
Suitable for lighting	no
Construction type lens	Round
Degree of protection (IP)	IP66
Degree of protection (NEMA)	4X
Number of command positions	1
Switching function latching	no
Type of electric connection	Screw connection
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0

Documents

Declaration of Conformity (Sustainability)

XB4BA3341 REACh Regulation
