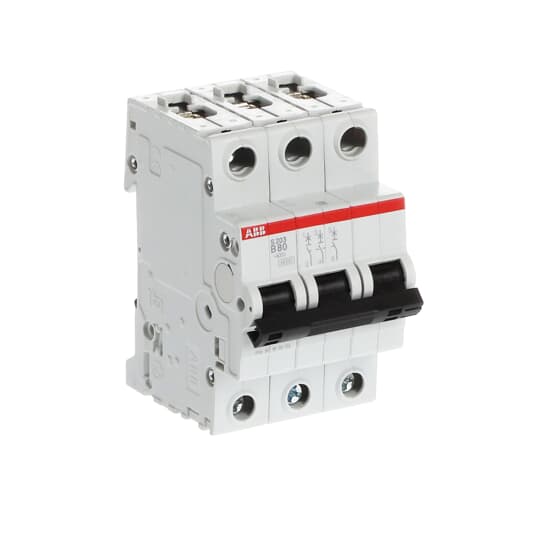

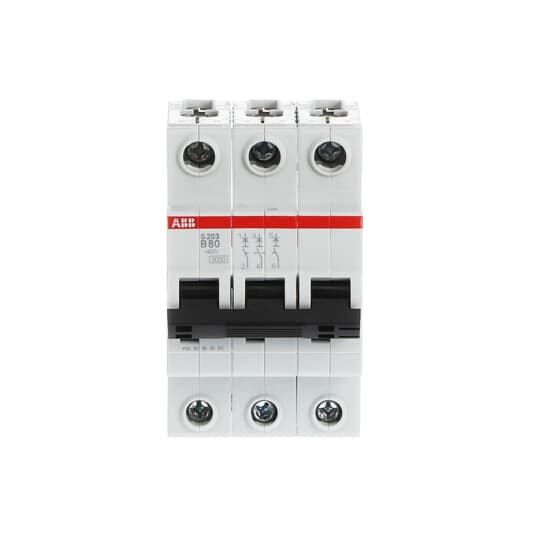

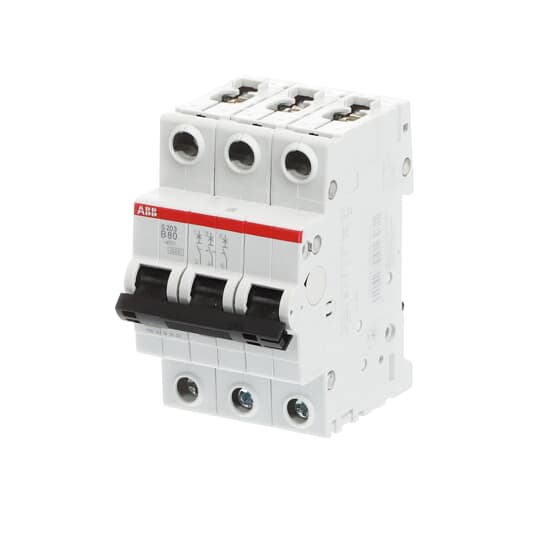

Miniature Circuit Breaker - S200 80-100A - 3P - 80 A - B - (AC) 6 kA

Name: Miniature Circuit Breaker - S200 80-100A - 3P - 80 A - B - (AC) 6 kA
Brand: ABB
SKU: 2CDS253001R0805
Availability: InStock

3x rewards on ABB Protecta Plus!

S203-B80 Miniature Circuit Breake B-Char., 6kA, 80A, 3P

Product identifiers

SKU: 2CDS253001R0805

EAN: 4016779916271

GTIN: 4016779916271

MPN: S203-B80

Price range: £ 138.38 - £ 202.56 Excl. VAT

Specifications

Frequency
Power loss	24.3
Voltage type	AC
Rated current	80
Rated voltage	400
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	B
Number of poles (total)	3
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	3
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-

Deeplink product page
Deeplink REACH
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
