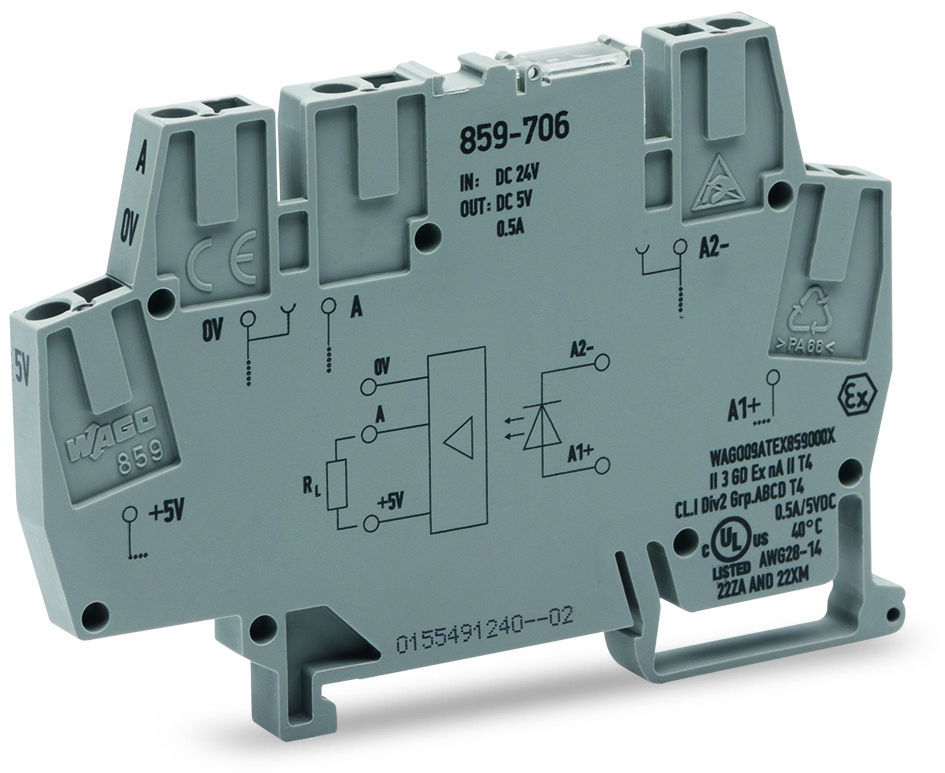

Optocoupler module Nominal input voltage: 24 VDC Output voltage range: 4 … 6.25 VDC gray
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 4 … 6.25 VDC; Limiting continuous current: 0.5 A; 3-wire connection/low-side switching; Frequency 20 kHz; Red status indicator; Module width: 6 mm; gray
Product identifiers
SKU: 859-706
EAN: 4066966423686
GTIN: 4066966423686
MPN: 859-706
Loyalty points:
1
Price: £ 25.00 Excl. VAT
Categories
ETIM Group
Specifications
| Input voltage | 18 - 30 |
| Output voltage | 4 - 6.25 |
| With LED indication | yes |
| Type of digital output | Transistor |
| Type of output voltage | DC |
| Rated operation current Ie | 0.5 |
| Type of voltage (input voltage) | DC |
