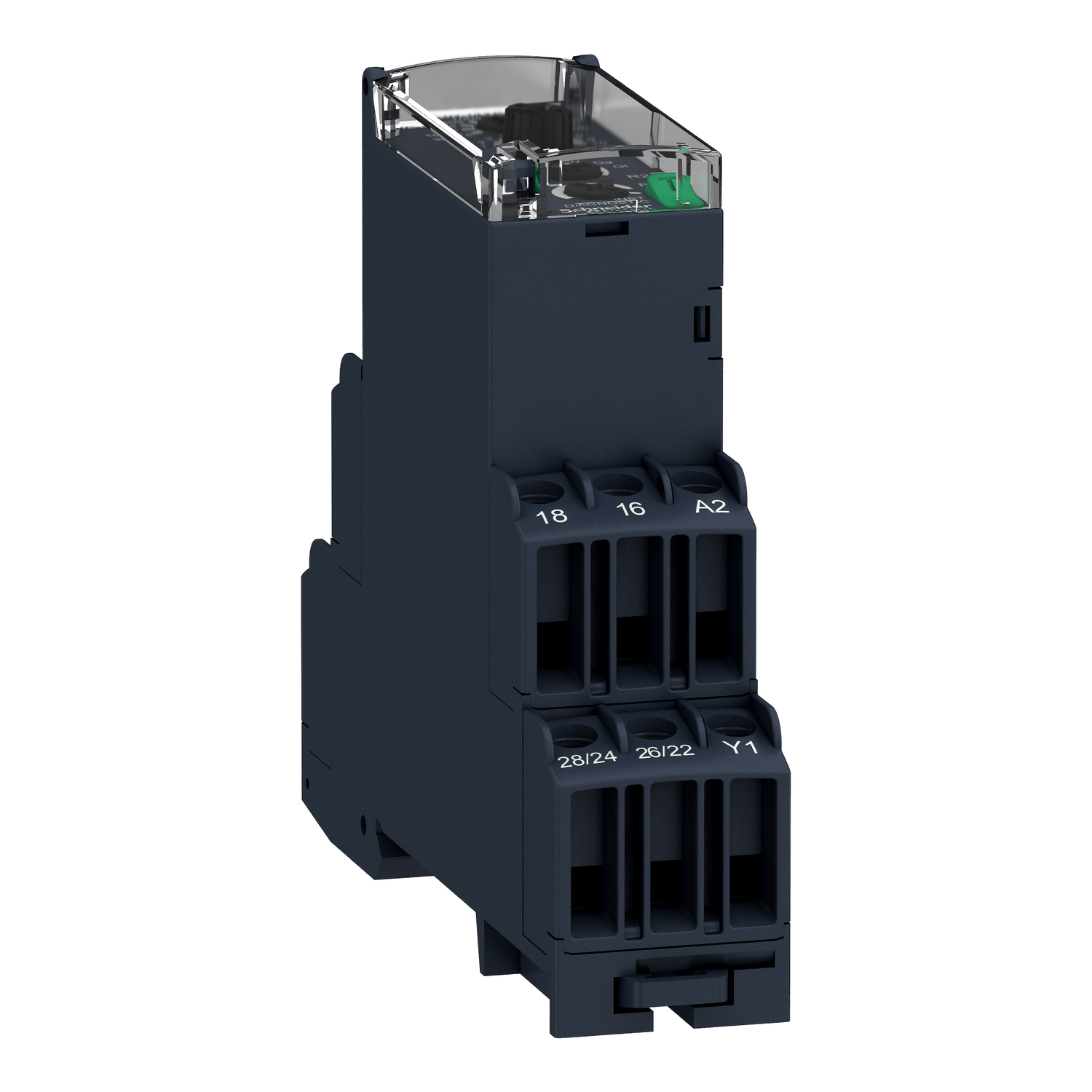

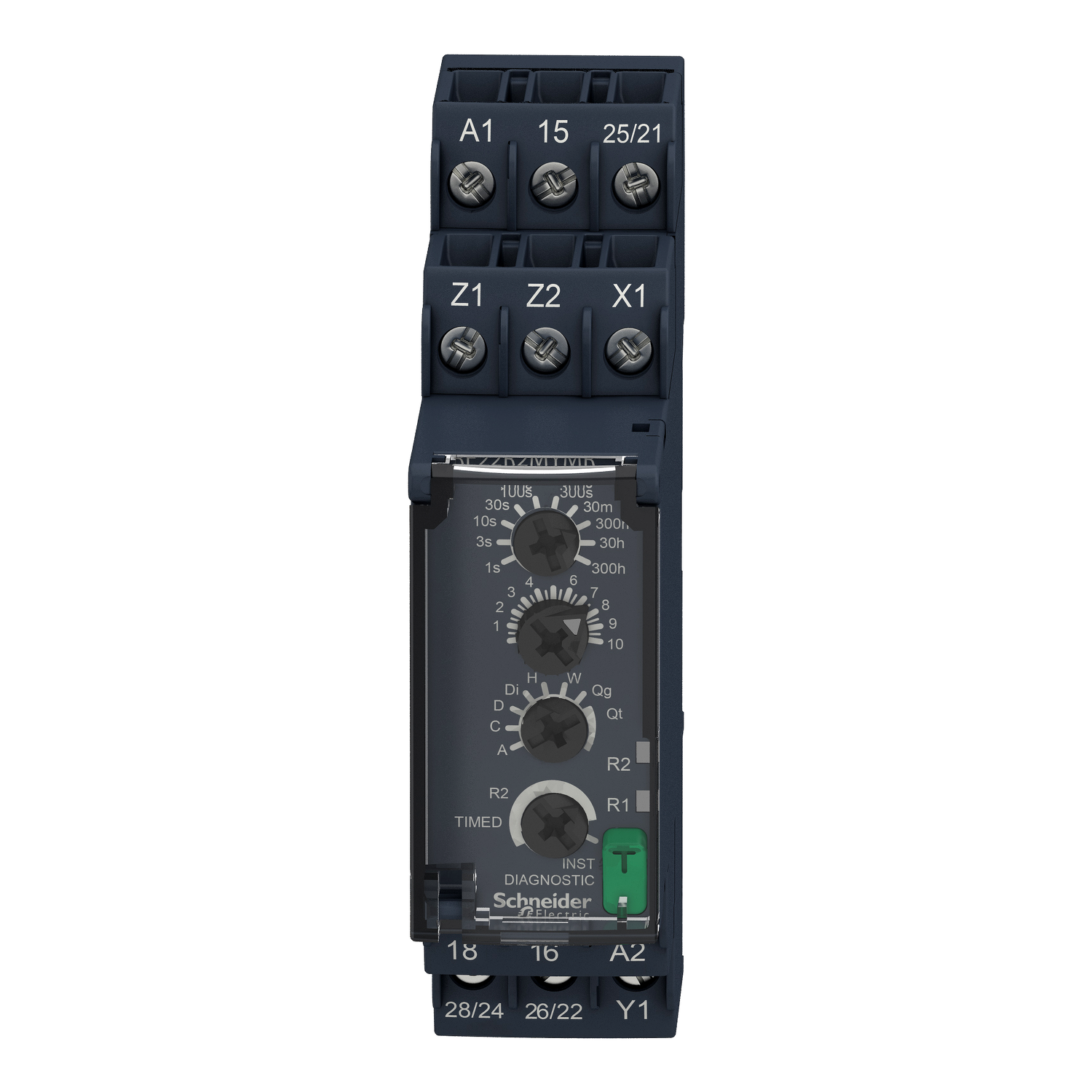

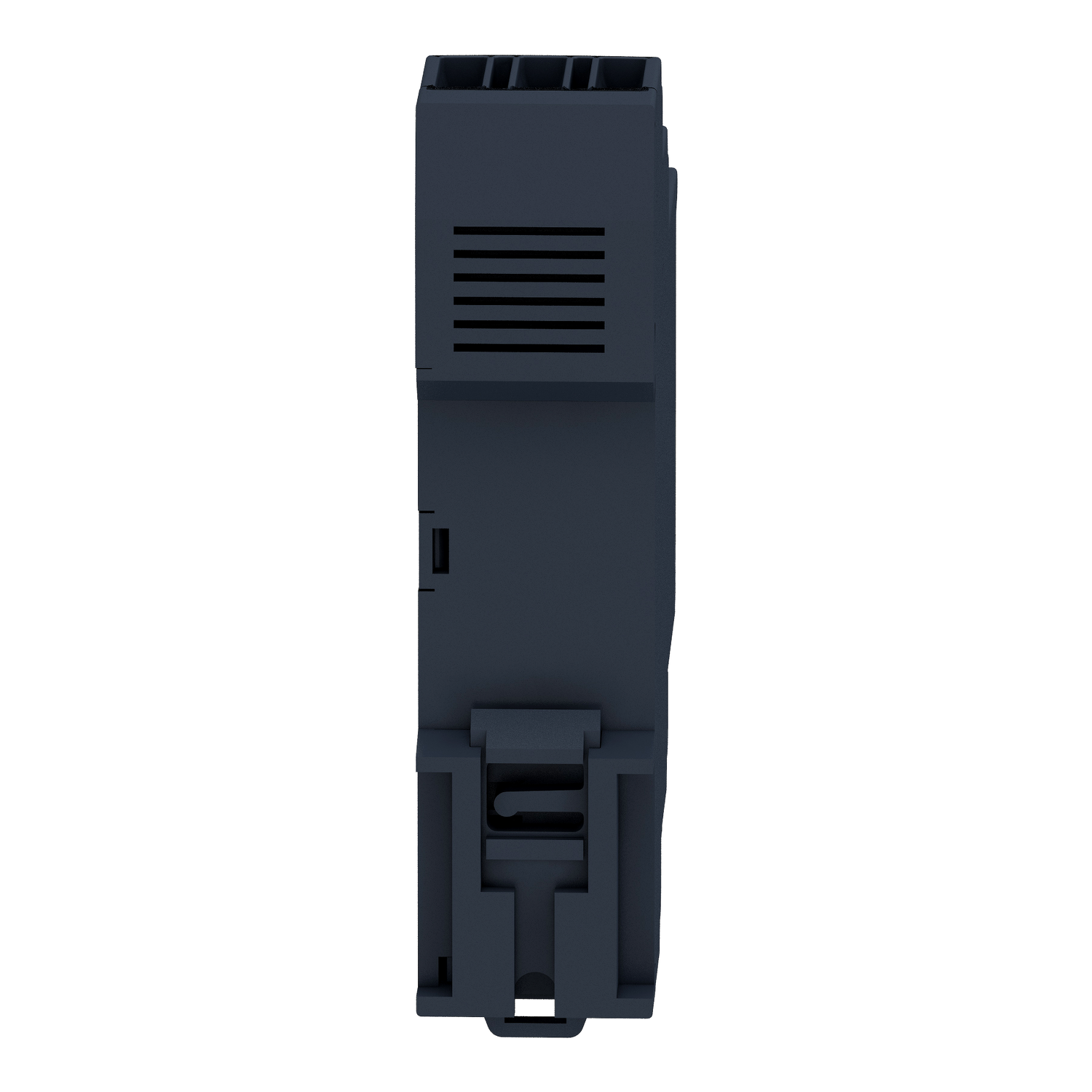

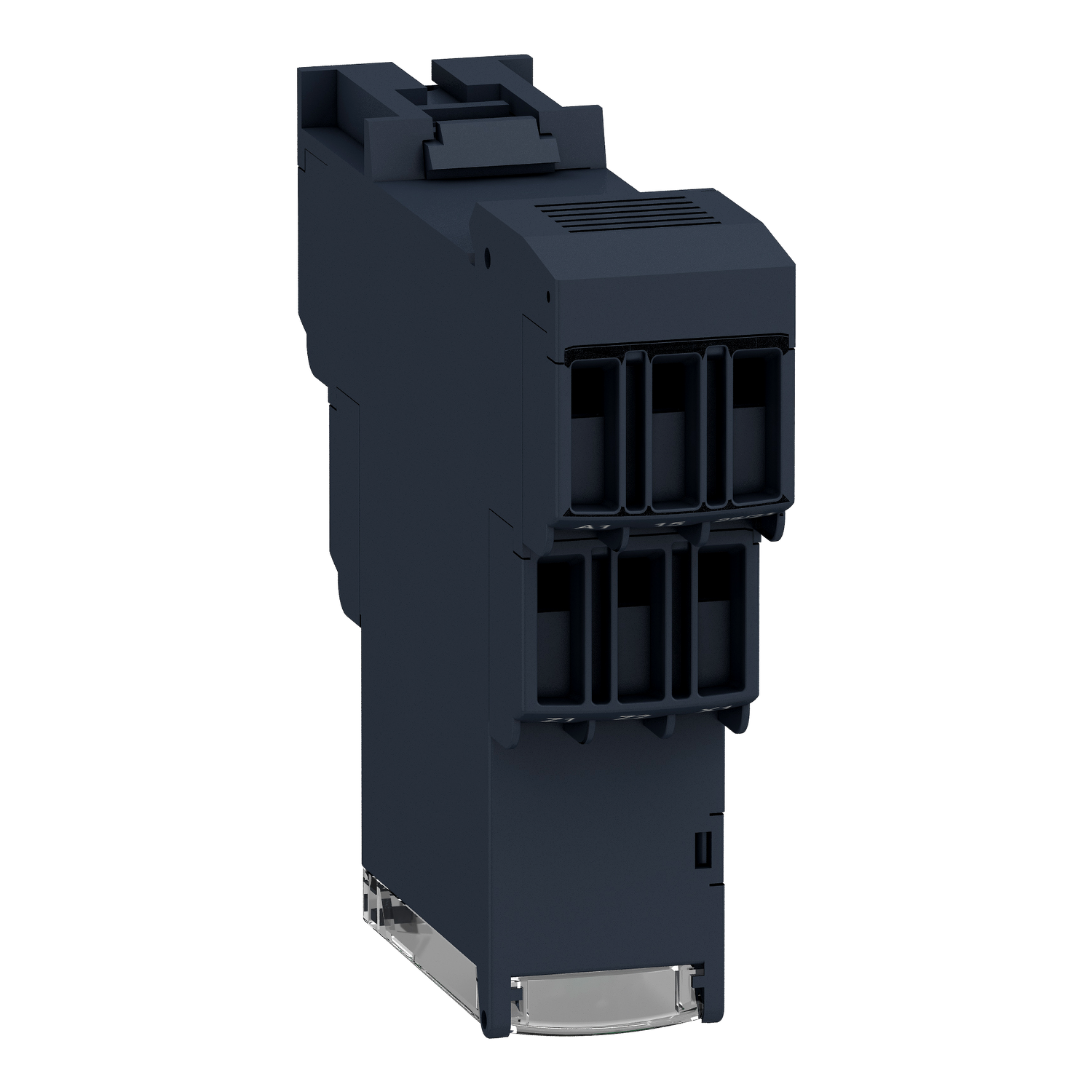

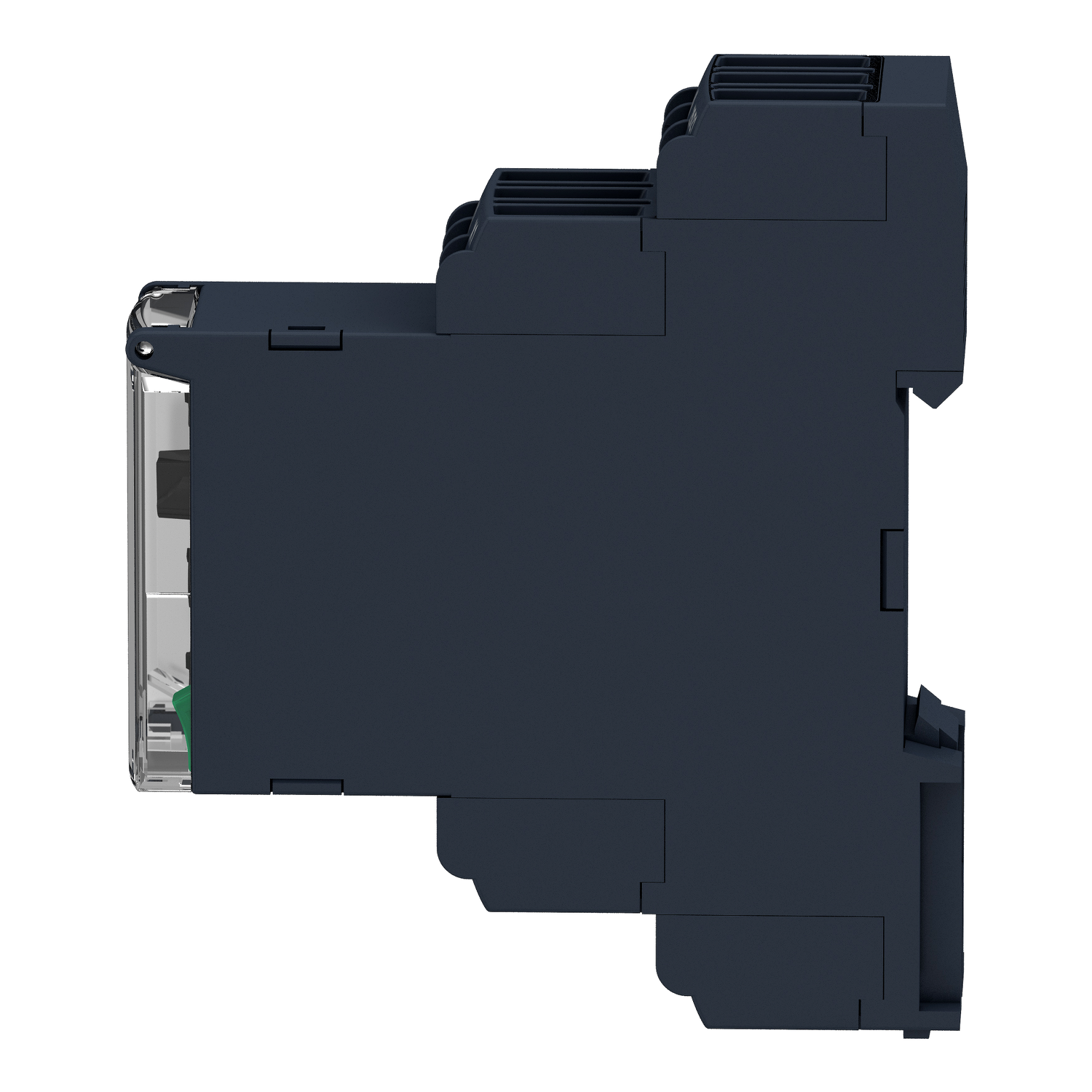

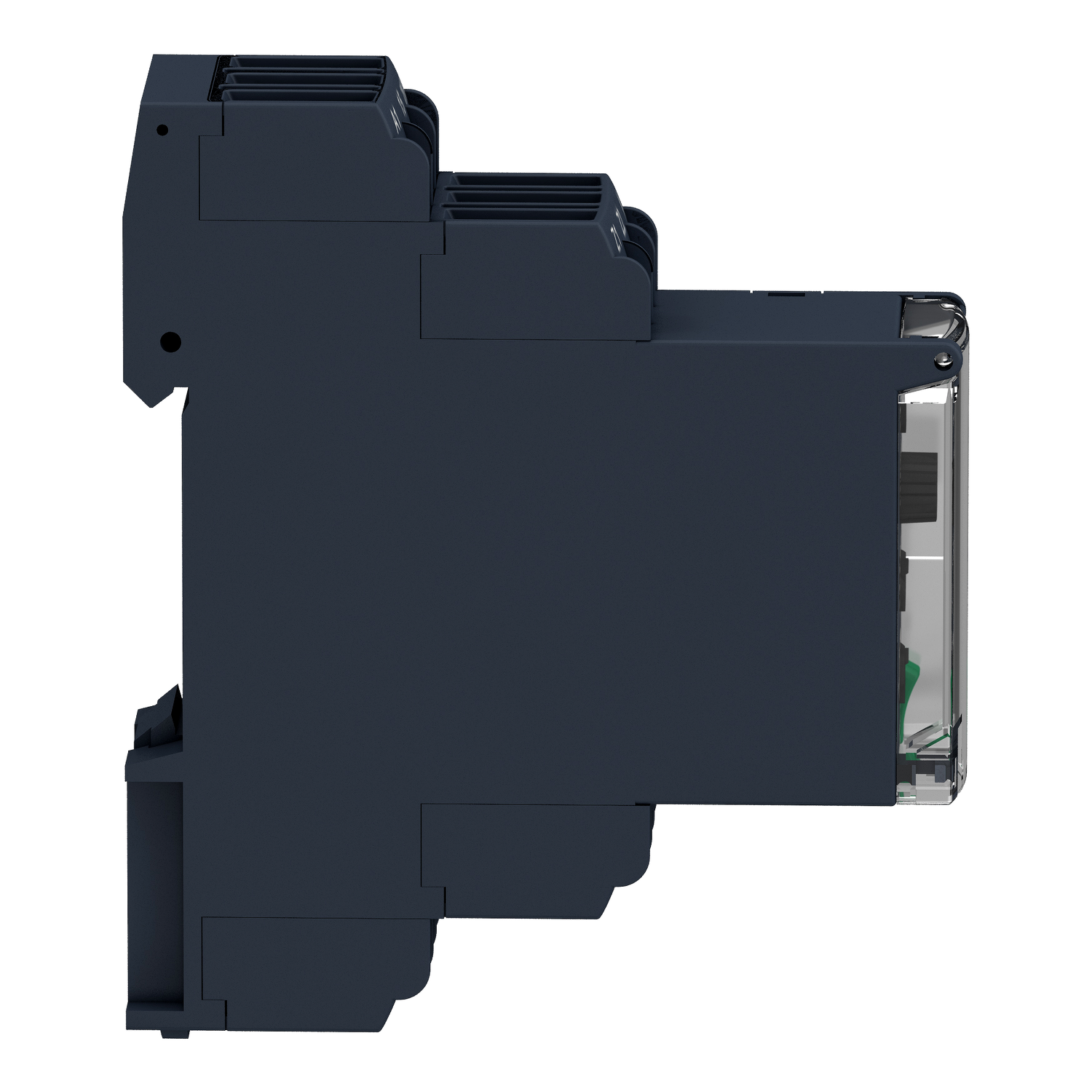

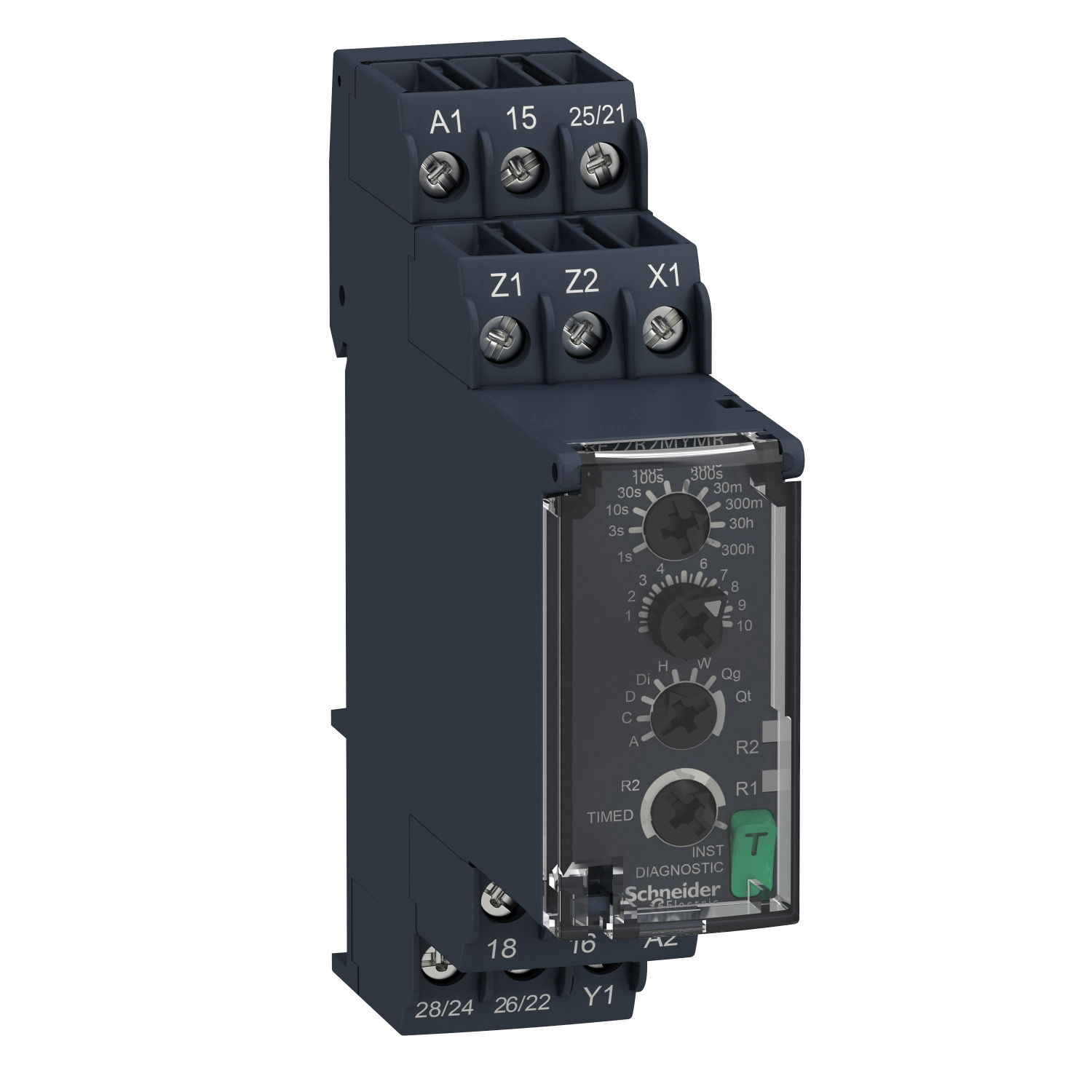

Modular timing relay, 8 A, 2 CO, 0.05s…300h, multifunction, 24...240 V AC/DC

Link copied
SKU
EAN
GTIN
MPN

Modular timing relay, 8 A, 2 CO, 0.05s…300h, multifunction, 24...240 V AC/DC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £69.10 to £110.91 excl. VAT. Voltimum+ members earn 15 points per unit.

This Harmony RE22 timing relay can be set between 0.05 seconds and 300 hours, has an output rating of 8A, is 22.5mm wide and can be supplied with 24V to 240V AC. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail. It also offers a sealable cover, simple and precise settings with rotary trimmers. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists. 0 0 0 0 0 0 0 0 0 0 0 0 0

Voltimum+ Loyalty Programme Loyalty points: 15

Price range: £ 69.10 - £ 110.91 Excl. VAT

Specifications

Depth 73 mm
Width 22.5 mm
Height 90 mm
Time range
Nominal current 8 A
Material contact -
Function star-delta yes
Complete with socket no
Max. starting current -
Degree of protection (IP) -
With semiconductor output no
Operating voltage AC 50 Hz
Suitable as remote control no
Material of contact surface -
Type of electric connection Screw connection
Rated control supply voltage DC
Function delay on de-energization yes
Outputs, reversible delayed/undelayed yes
Rated control supply voltage AC 60 Hz
Function floating contact on de-energization no
Clock function, starting with pulse, variable no
Number of outputs, delayed, change-over contact 2
Number of outputs, undelayed, change-over contact 1
Function flashing, starting with pulse, fixed time yes
Number of outputs, delayed, normally closed contact 2
Number of outputs, undelayed, normally closed contact 1
