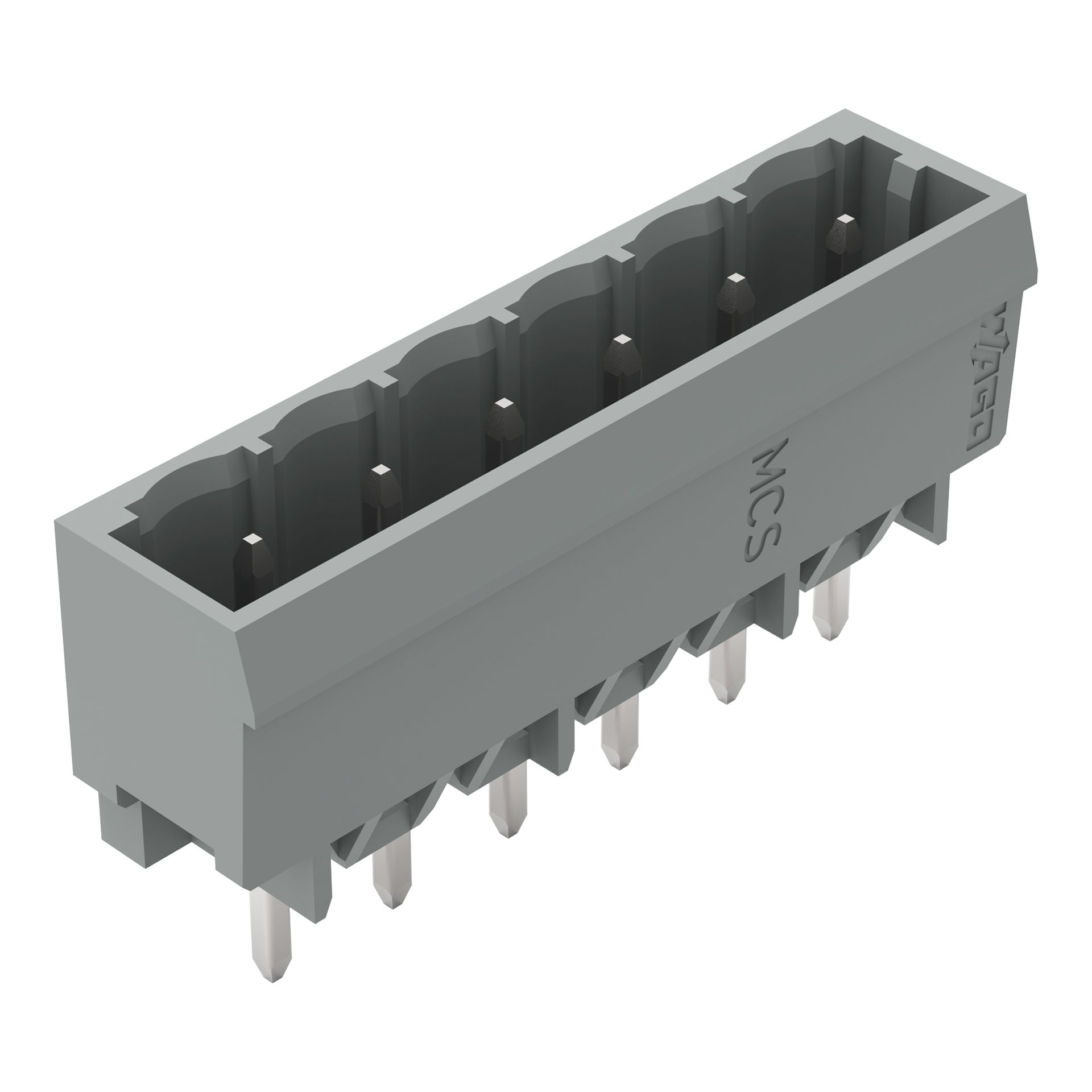

THT male header 1.0 x 1.0 mm solder pin straight gray

Name: THT male header 1.0 x 1.0 mm solder pin straight gray
Brand: Wago
SKU: 231-136/001-000
Availability: InStock

THT male header; 1.0 x 1.0 mm solder pin; straight; Pin spacing 5 mm; 6-pole; gray

Product identifiers

SKU: 231-136/001-000

EAN: 4044918863193

GTIN: 4044918863193

MPN: 231-136/001-000

Price range: £ 1.20 - £ 1.52 Excl. VAT

Connectors

Specifications

EFNA0008	V0
Length pin	5
Contact type	Pin
Rated voltage	320
Housing colour	Grey
Connector model	Free connector
Number of poles	6
Type of banding	None
Pollution degree	2
Rated current In	12
Angle PCB/contact	90° (upwards vertical)
Type of fastening	Solder
Type of connection	Flexible PCB-connector
Rated surge voltage	4
Operating temperature	-60 - 100
Over voltage category	III
Type of PCB fastening	Connecting contact
Diameter connection pin	-
Material insulation body	Thermoplastic
Modular spacing contacts	5
Suitable for PCB thickness	1.5
Material of contact surface	Tin
Modular spacing connections	5
Type of electric connection	Soldering connection
RAL-number (similar) housing	-
Number of plug-in contact rows	1
