Pendant station XAC-A pistol grip - 2 booted push buttons 1 Emergency stop
Pendant station XAC-A pistol grip - 2 booted push buttons 1 Emergency stop by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £111.57 to £117.23 excl. VAT. Voltimum+ members earn 16 points per unit.

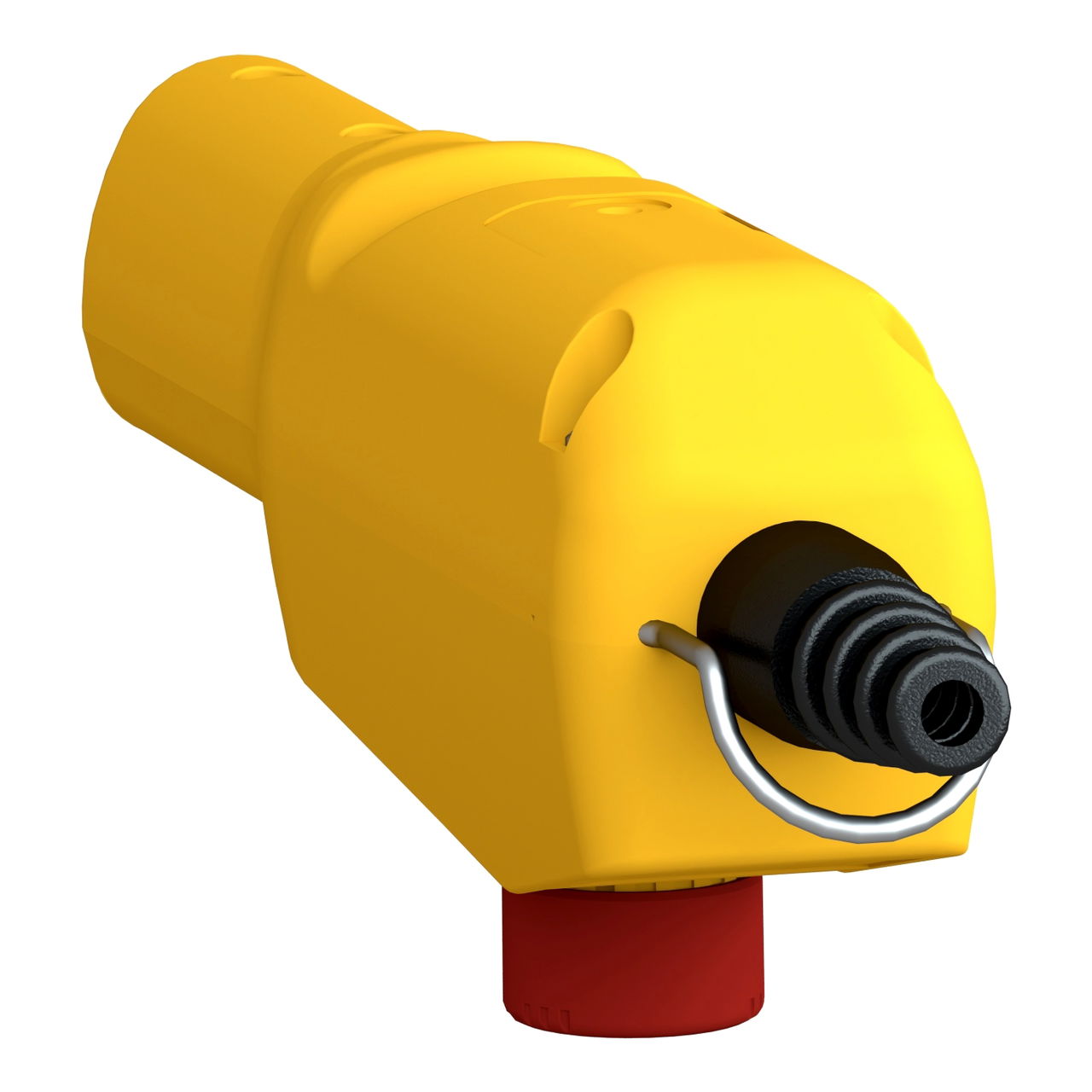

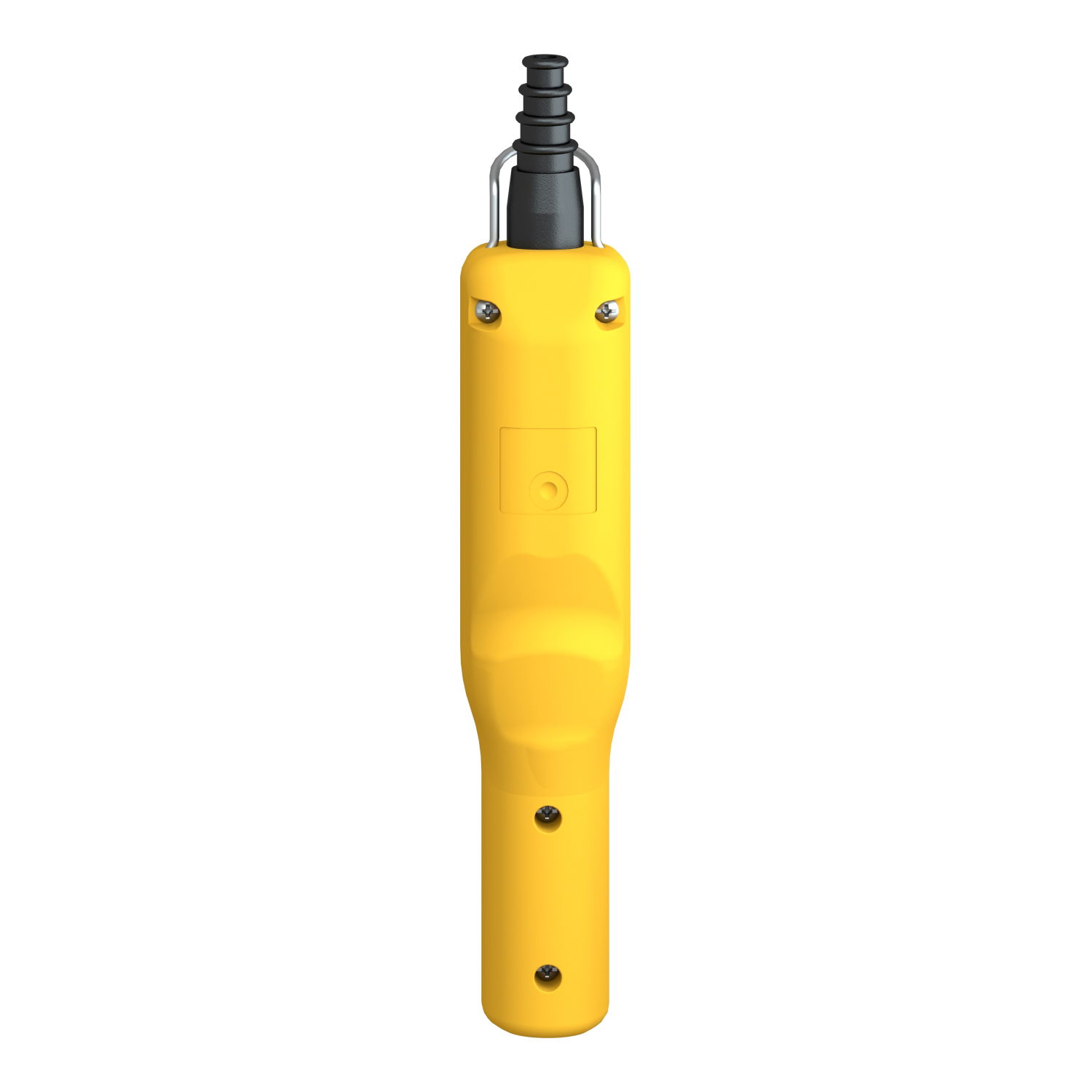

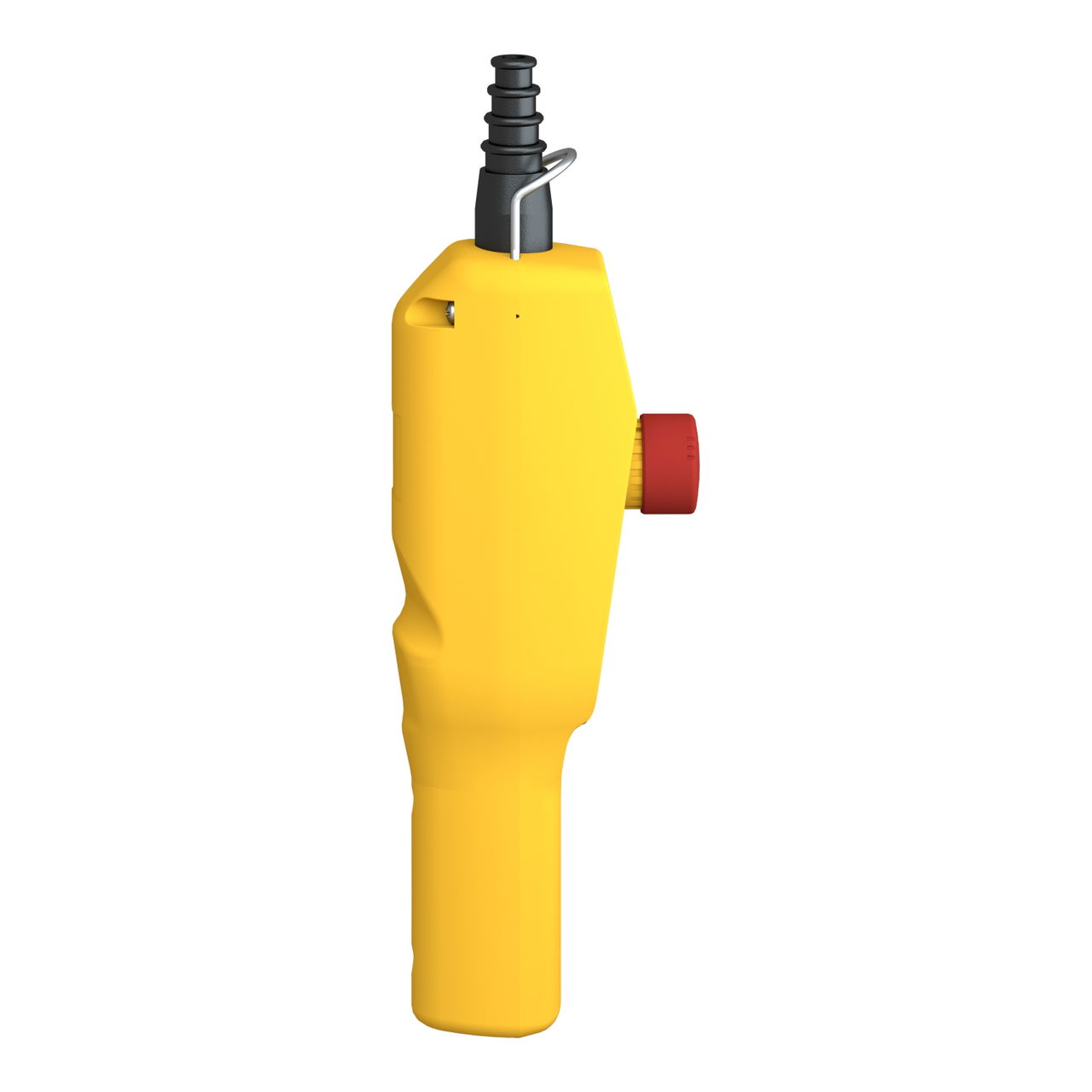

This yellow, complete ready to use, pendant station for control circuits is designed for control of 2-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Product identifiers
SKU: XACA2173
EAN: 3389110558913
GTIN: 3389110558913
MPN: XACA2173
Loyalty points:
16
Price range: £ 111.57 - £ 117.23 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 101 mm |
| Width | 52 mm |
| Height | 295 mm |
| Housing material | Plastic |
| Number of speeds | 2 |
| Colour housing cover | Yellow |
| Housing material quality | Other |
| Degree of protection (IP) | IP65 |
