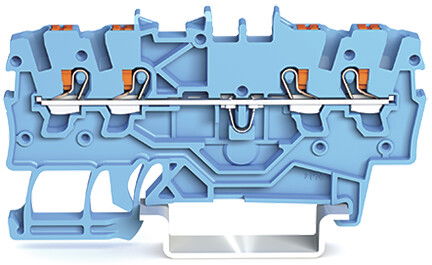

4-conductor through terminal block with push-button 1 mm² blue
4-conductor through terminal block; with push-button; 1 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; blue
Product identifiers
SKU: 2200-1404
EAN: 4055143691635
GTIN: 4055143691635
MPN: 2200-1404
Loyalty points:
2
Price: £ 1.35 Excl. VAT
Categories
Features
|
Depth
|
32.9
|
|
Width
|
3.5
|
|
Colour
|
Blue
|
|
Height
|
67.9
|
|
Rated voltage
|
800
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Rated current In
|
13.5
|
|
Operating temperature
|
105 - 105
|
|
Closing plate required
|
yes
|
|
Material insulation body
|
Thermoplastic
|
|
Internally connected stages
|
no
|
|
Explosion-tested version 'Ex e'
|
yes
|
|
Suitable for conductor material
|
-
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
4
|
|
Connectable conductor cross section solid-core
|
0.5 - 1.5
|
|
Connectable conductor cross section multi-wired
|
0.14 - 1
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.5 - 0.75
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.14 - 1.5
|
