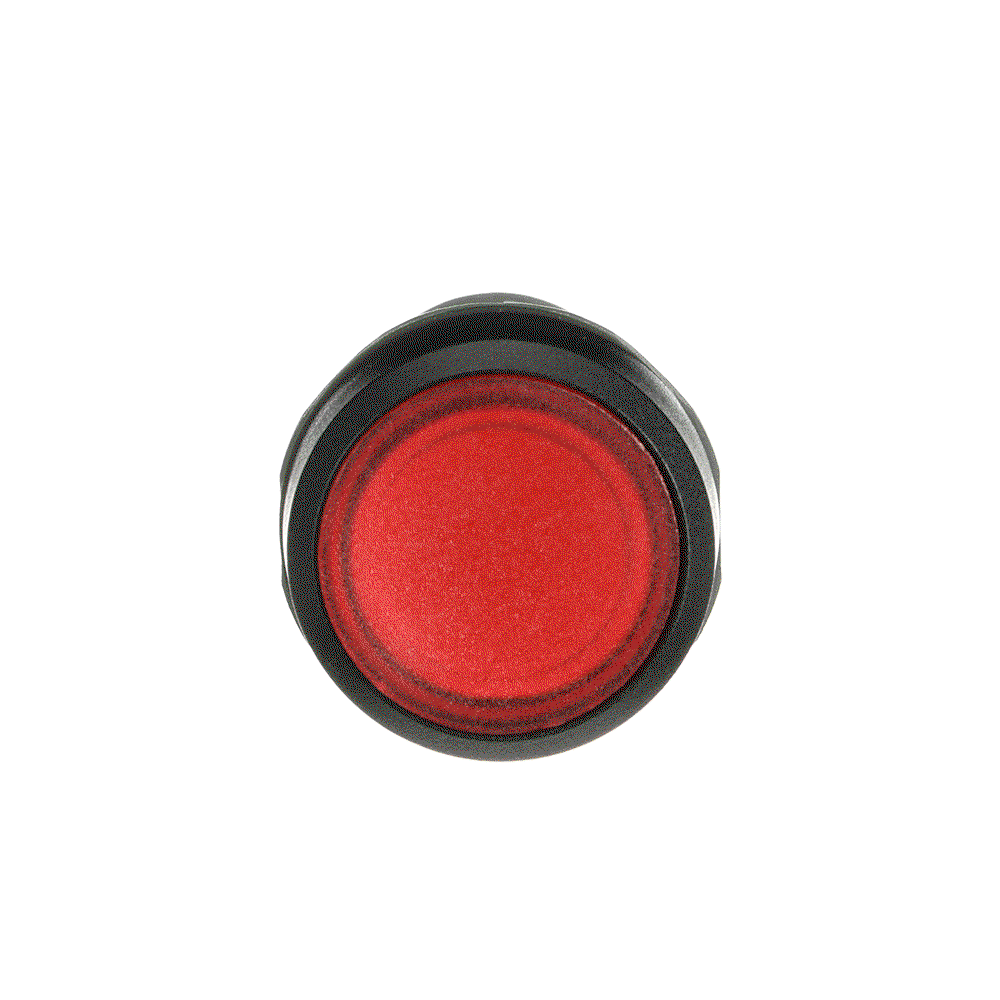

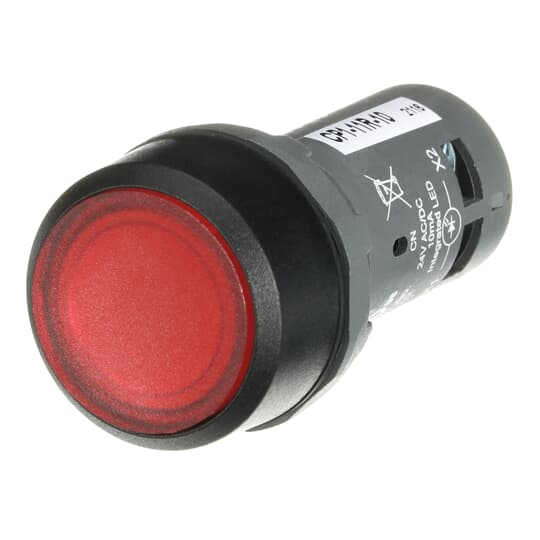

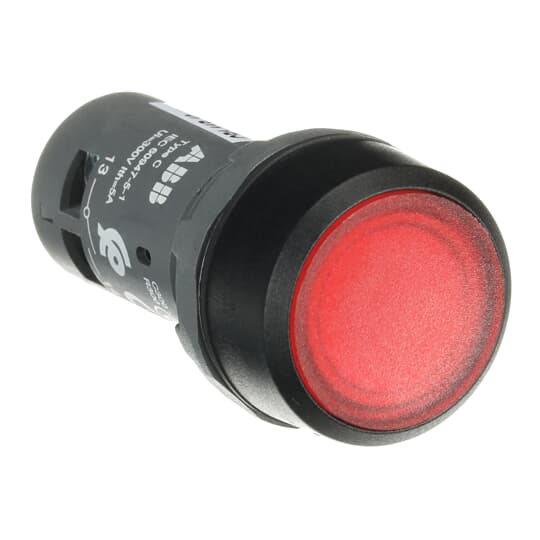

CP1-11R-10 Pushbutton

Link copied

SKU
EAN
GTIN
MPN

CP1-11R-10 Pushbutton by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £22.93 excl. VAT. Voltimum+ members earn 8 points per unit.

The CP1-11R-10 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Red - Illuminated - Black Plastic - 1NO - Red - 1 NO - 0 NC - , 24 V This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.

Loyalty points: 8

Price: £ 22.93 Excl. VAT

Specifications

Transparent	-
Colour button	Red
Hole diameter	22
Spring-return	yes
Width opening	-
Height opening	-
Type of button	Flat
With front ring	yes
Colour front ring	-
Material front ring	-
Supply voltage lamp	24
Suitable for lighting	yes
Construction type lens	Round
Degree of protection (IP)	IP67/IP69K
Degree of protection (NEMA)	-
Number of command positions	-
Switching function latching	no
Type of electric connection	Screw connection
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0
