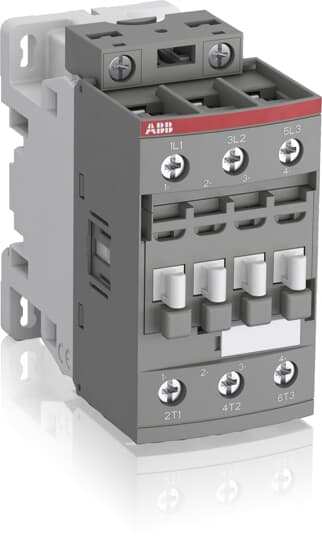

AF26-30-00-13 100-250V50/60HZ-DC Contactor
The AF26-30-00-13 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL and switching power circuits up to 45 A (AC-1) or 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Product identifiers
SKU: 1SBL237001R1300
EAN: 3471523110939
GTIN: 3471523110939
MPN: AF26-30-00-13
Loyalty points:
42
Price range: £ 86.13 - £ 89.02 Excl. VAT
Categories
Features
|
Depth
|
86
|
|
Width
|
45
|
|
Height
|
86
|
|
Modular version
|
no
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Rated operation power NEMA
|
7.4570
|
|
Voltage type for actuating
|
AC/DC
|
|
Rated control supply voltage DC
|
|
|
Rated operation power at AC-3, 400 V
|
11
|
|
Rated operation power at AC-4, 400 V
|
-
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Rated operation current Ie at AC-1, 400 V
|
45
|
|
Rated operation current Ie at AC-3, 400 V
|
26
|
|
Rated operation current Ie at AC-4, 400 V
|
-
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Number of normally open contacts as main contact
|
3
|
|
Number of normally closed contacts as main contact
|
0
|
|
Number of auxiliary contacts as normally open contact
|
0
|
|
Number of auxiliary contacts as normally closed contact
|
0
|
