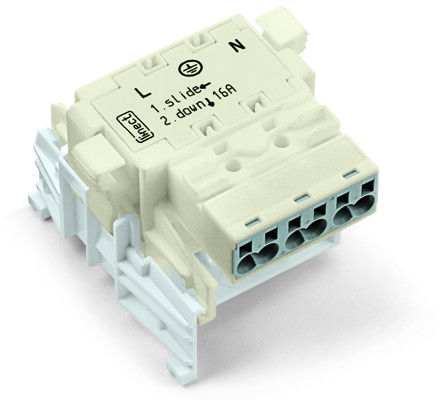

Linect® T-connector 3-pole 1 input white

Name: Linect® T-connector 3-pole 1 input white
Brand: Wago
SKU: 770-6229
Price: 127.00 GBP
Availability: OutOfStock

Linect® T-connector; 3-pole; 1 input; with cable connection on the input side; white

Product identifiers

SKU: 770-6229

EAN: 4050821621928

GTIN: 4050821621928

MPN: 770-6229

Loyalty points: 3 (x25)

Price: £ 127.00 Excl. VAT

Specifications

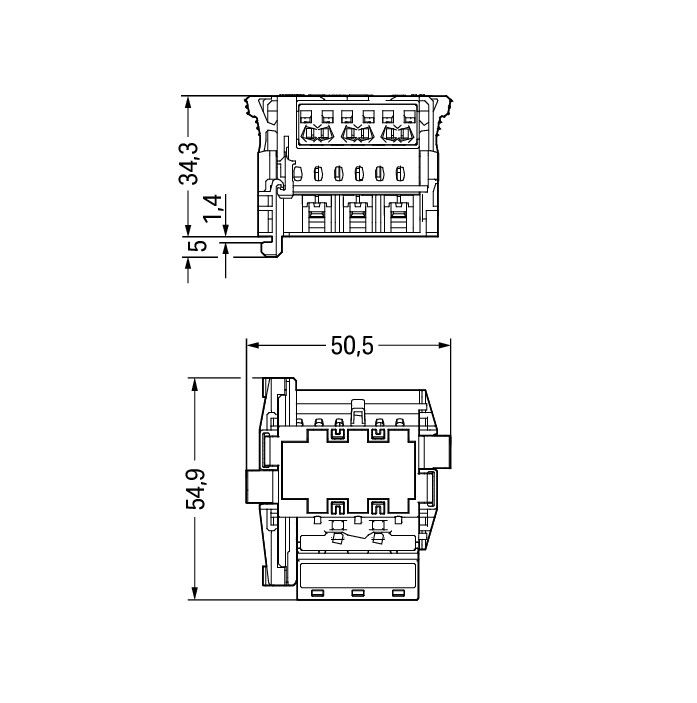

Model	-
Width	50.5
Height	40.8
Length	54.9
Fire load	0.16361
Halogen free	yes
Rated current	25
Rated voltage	250
Housing colour	White
Connection type	Spring clamp connection
Number of poles	3
Type of locking	Integrated in plug-in connector
Built-in version	Built-in part/plug-in connection
Contact material	CuSn
Housing material	Polyamide (PA)
Insert direction	Straight
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N, PE
Rated surge voltage	4
Angle of inclination
Length soldering pin	-
Continuity resistance	1
Connection size thread	No thread connection
Wall thickness housing	-
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Number of connections per pole	2
RAL-number coding/contact insert	-
Colour of the separate adapter piece	-
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
