S803S-C6 High Performance MCB
1 / 4

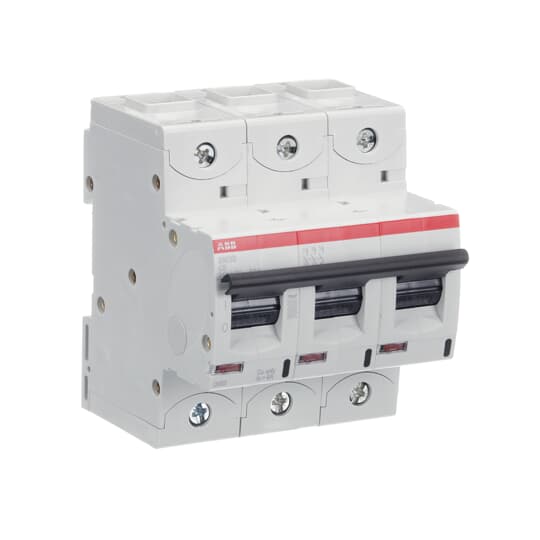

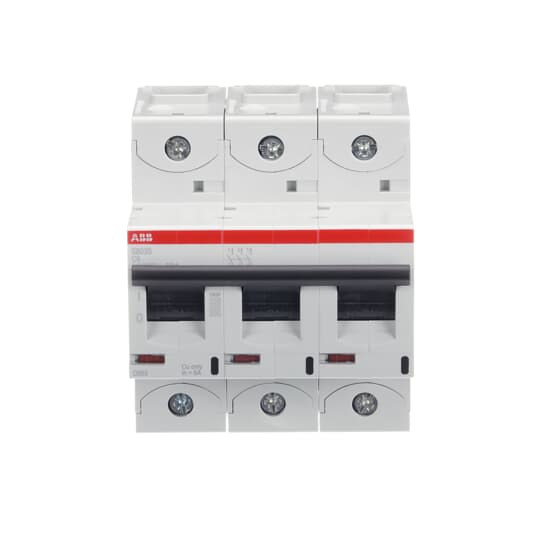

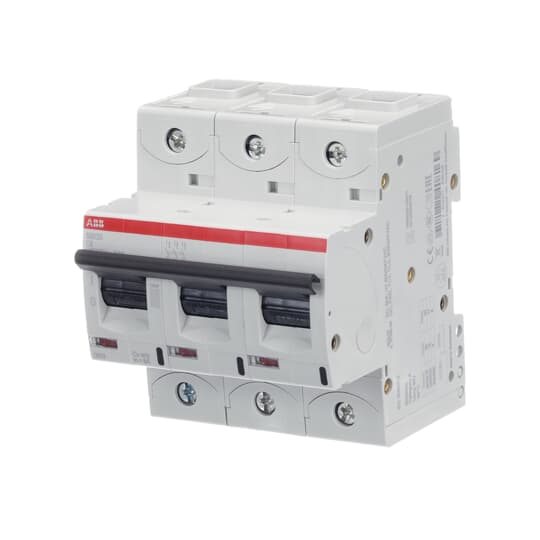

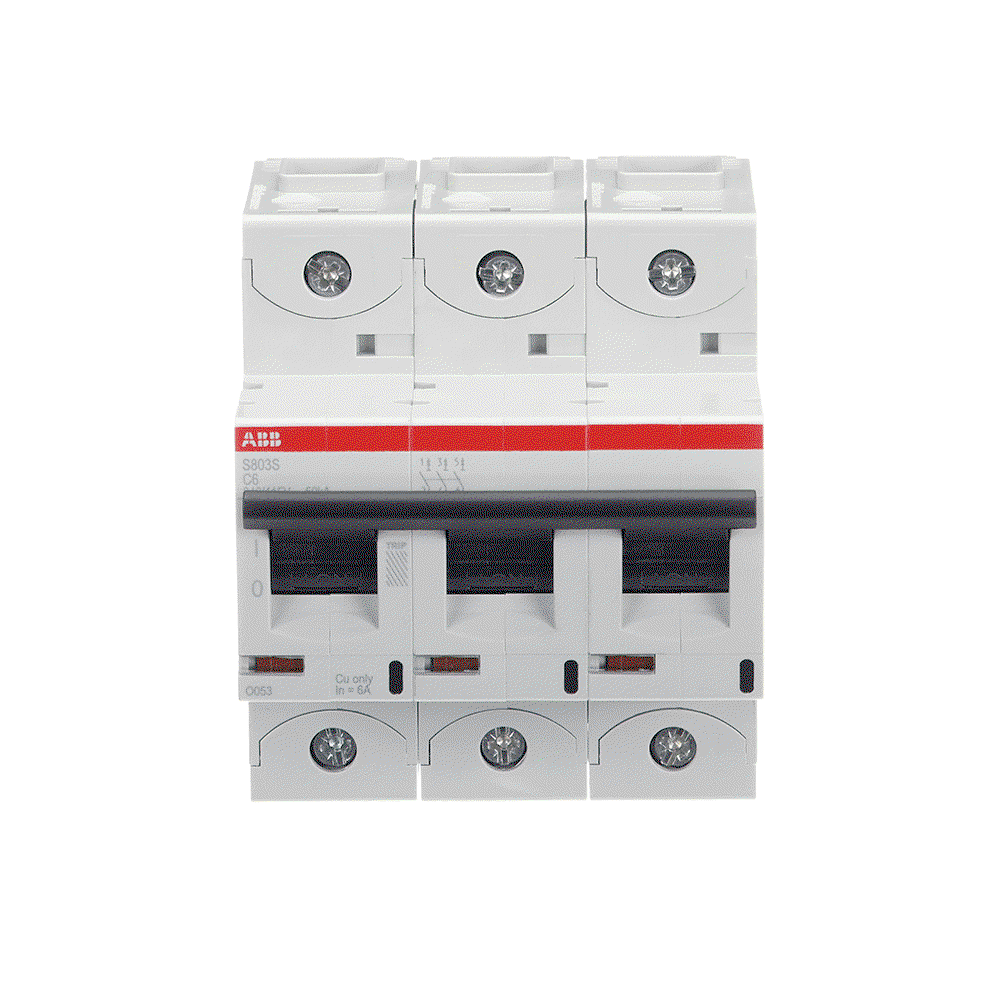

S803S-C6 High Performance MCB
S803S-C6 High Performance MCB by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £299.69 excl. VAT. Voltimum+ members earn 132 points per unit.
The S803S-C6 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 6 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-C6 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-C6 more comfortable. Due to the fast arc extinction of S803S-C6 your application will be secured.
Product identifiers
SKU: 2CCS863001R0064
EAN: 7612271408169
GTIN: 7612271408169
MPN: S803S-C6
Loyalty points:
132
Price: £ 299.69 Excl. VAT
Categories
Specifications
| Frequency | |
| Power loss | 5.4 |
| Voltage type | AC/DC |
| Rated current | 6 |
| Rated voltage | 400 |
| Built-in depth | 82.5 |
| Explosion-proof | no |
| Pollution degree | 3 |
Documents
Deeplink product page
Deeplink REACH
9AKK108468A3036 EU REACH Declaration S800 range.pdf
Instructions for use
Instruction Manual S800 - Rev. N.pdf
Product data sheet
Declaration RoHS
2CCC005083D0202 EU Declaration S800S,N,C,B.pdf
Declaration EPD (Environmental Product Declaration)
