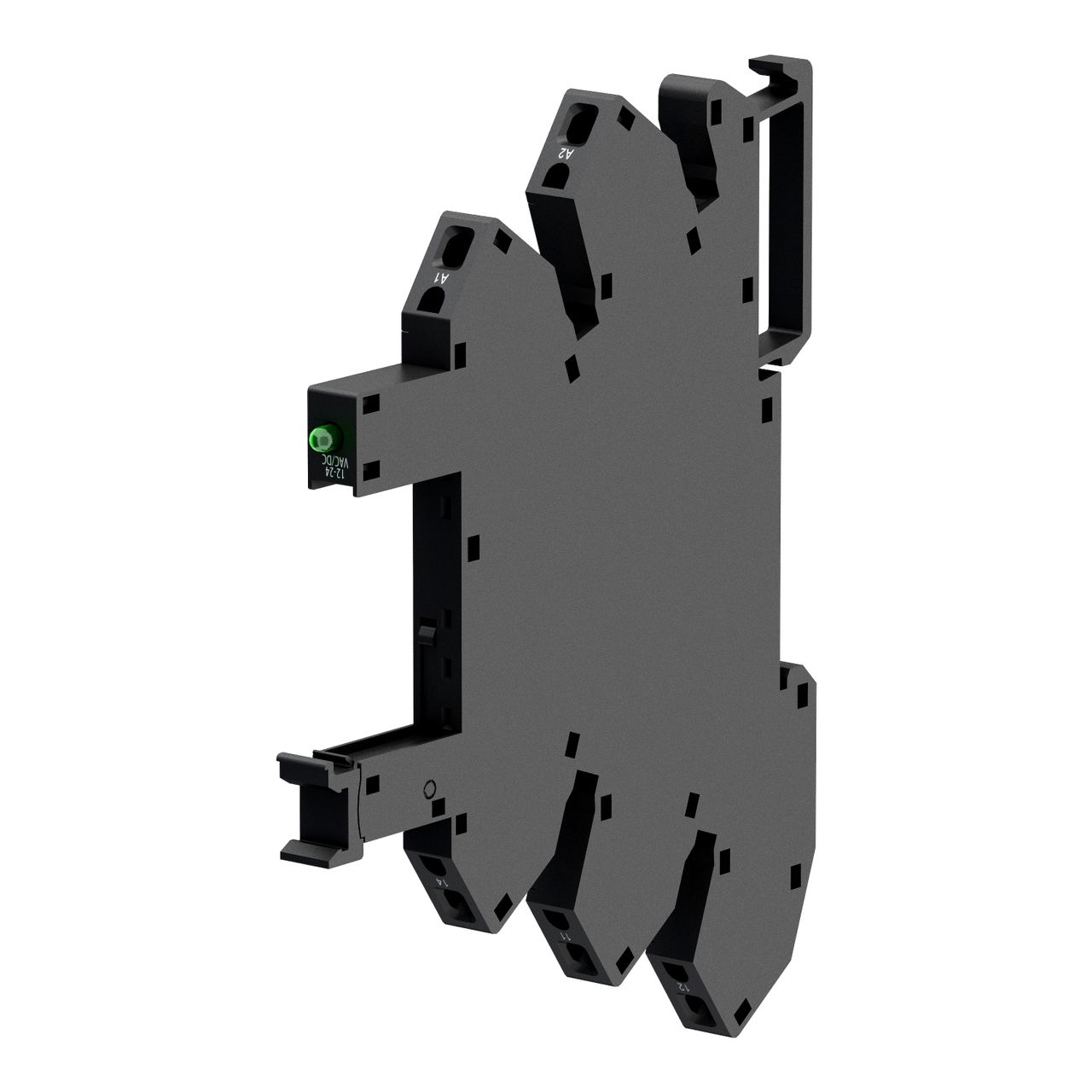

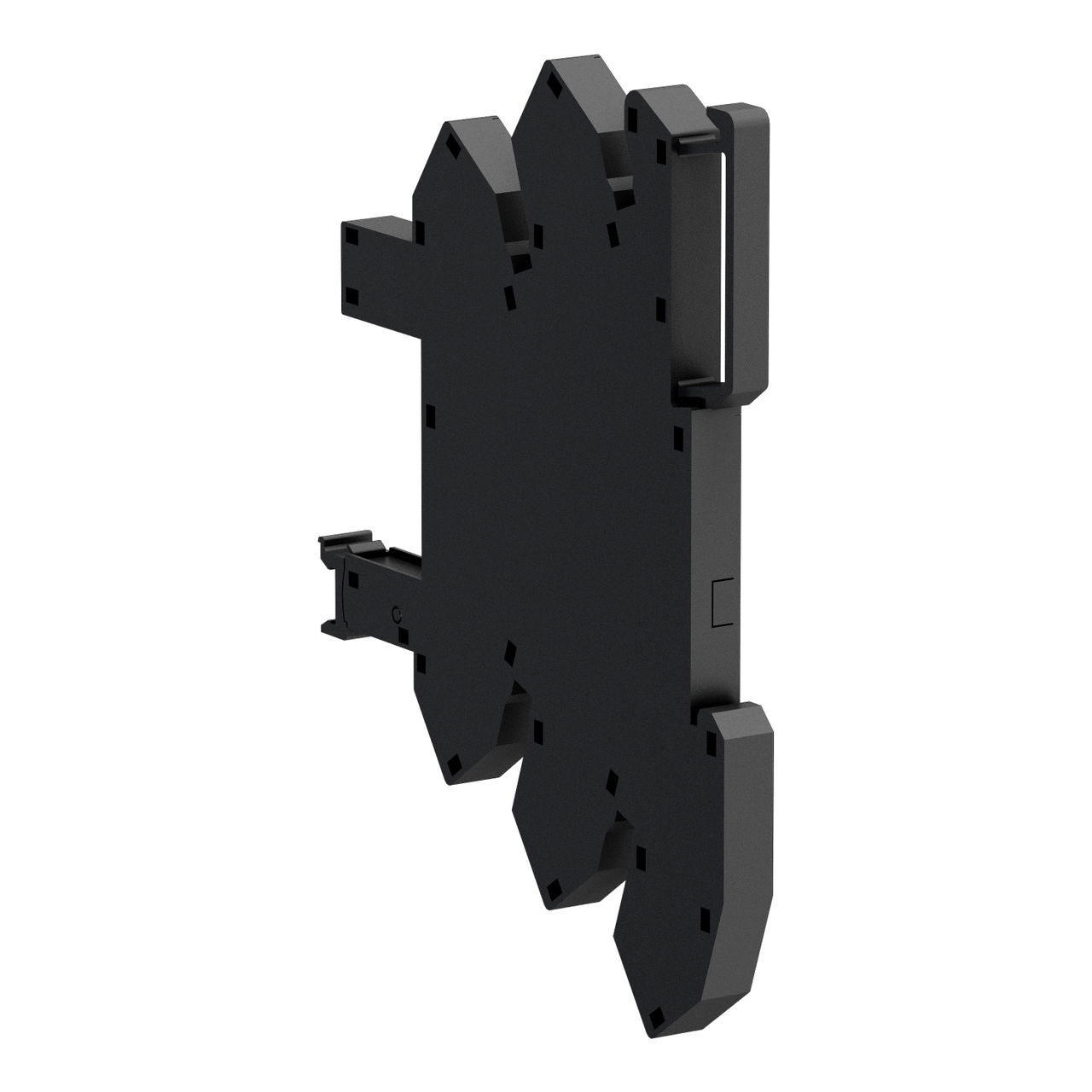

Spring socket equipped with LED and protection circuit, 48…60 V AC/DC

Link copied
SKU
EAN
GTIN
MPN

Spring socket equipped with LED and protection circuit, 48…60 V AC/DC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £17.21 to £17.38 excl. VAT. Voltimum+ members earn 2 points per unit.

"This Harmony RSLZ plug-in relay socket has a coil control voltage of 48 - 60V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 17.21 - £ 17.38 Excl. VAT

Specifications

Depth 101 mm
Width 6.2 mm
Height 78.6 mm
Number of pins 5
Mounting method DIN rail (top hat rail) 35 mm
With detachable clamps no
Function extension possible no
Type of electric connection Spring clamp connection

Documents

Declaration of Conformity (Sustainability)

RSLZRA2 REACh Regulation

Open

Product data sheet

Open

Catalog

Harmony Electromechanical Relays Catalog - EN

Open

Declaration of Conformity (Sustainability)

RSLZRA2 EU RoHS Directive

Open

Declaration of Conformity (Sustainability)

RSLZRA2 China RoHS Regulation

Open

Declaration of conformity

EU DOC - Zelio Relay RSL RSLZ

Open

Circularity Profile

ZELIO Relays - SSLZ… Solid State Relays Socket , RSLZ… Relays Socket, Product End-of-Life Instructions

Open

CAD

Open
