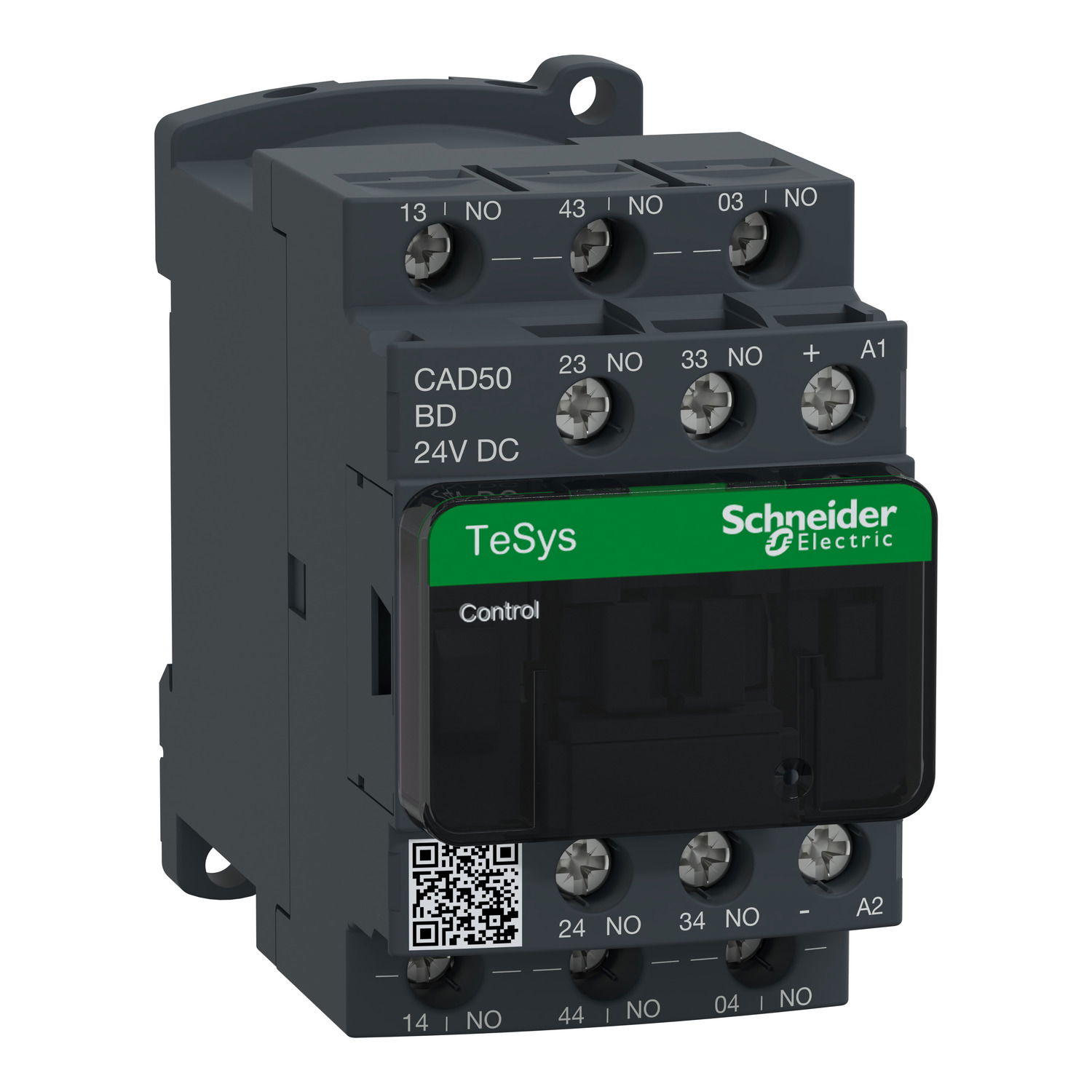

TeSys D control relay - 5 NO - <= 690 V - 24 V DC standard coil
1 / 5
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
TeSys D control relay - 5 NO - <= 690 V - 24 V DC standard coil
TeSys D control relay - 5 NO - <= 690 V - 24 V DC standard coil by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £51.90 to £84.52 excl. VAT. Voltimum+ members earn 11 points per unit.
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: CAD50BD
EAN: 3389110405583
GTIN: 3389110405583
MPN: CAD50BD
Loyalty points:
11
Price range: £ 51.90 - £ 84.52 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 93 mm |
| Width | 45 mm |
| Height | 77 mm |
| Interface | no |
| Mounting method | DIN-rail/screw |
| With LED indication | no |
| Operating voltage DC | |
| Rated switch current | 0.005 A |
