Yellow light block with body/fixing collar with integral LED 48...120V

Yellow light block with body/fixing collar with integral LED 48...120V by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £13.21 to £13.41 excl. VAT. Voltimum+ members earn 2 points per unit.

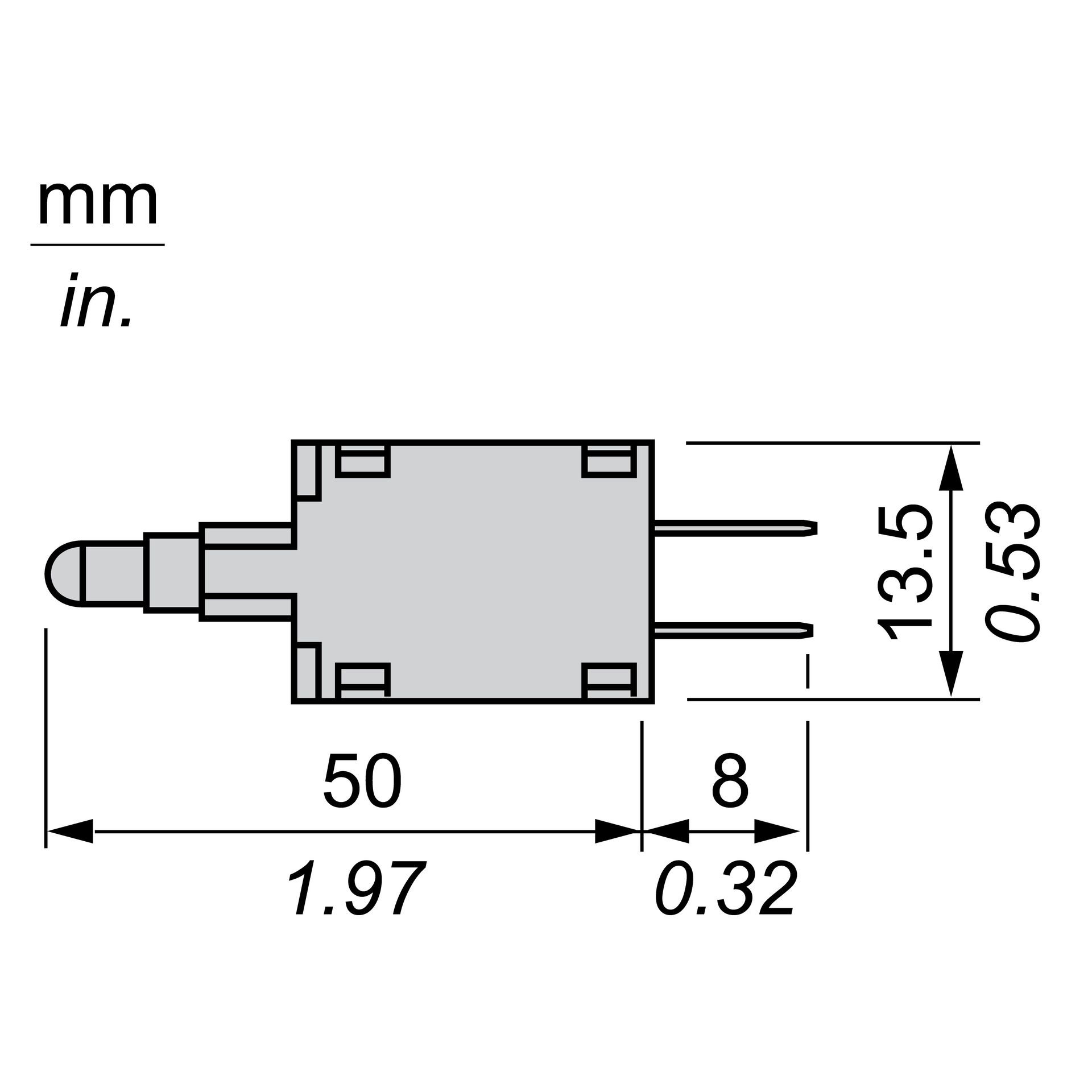

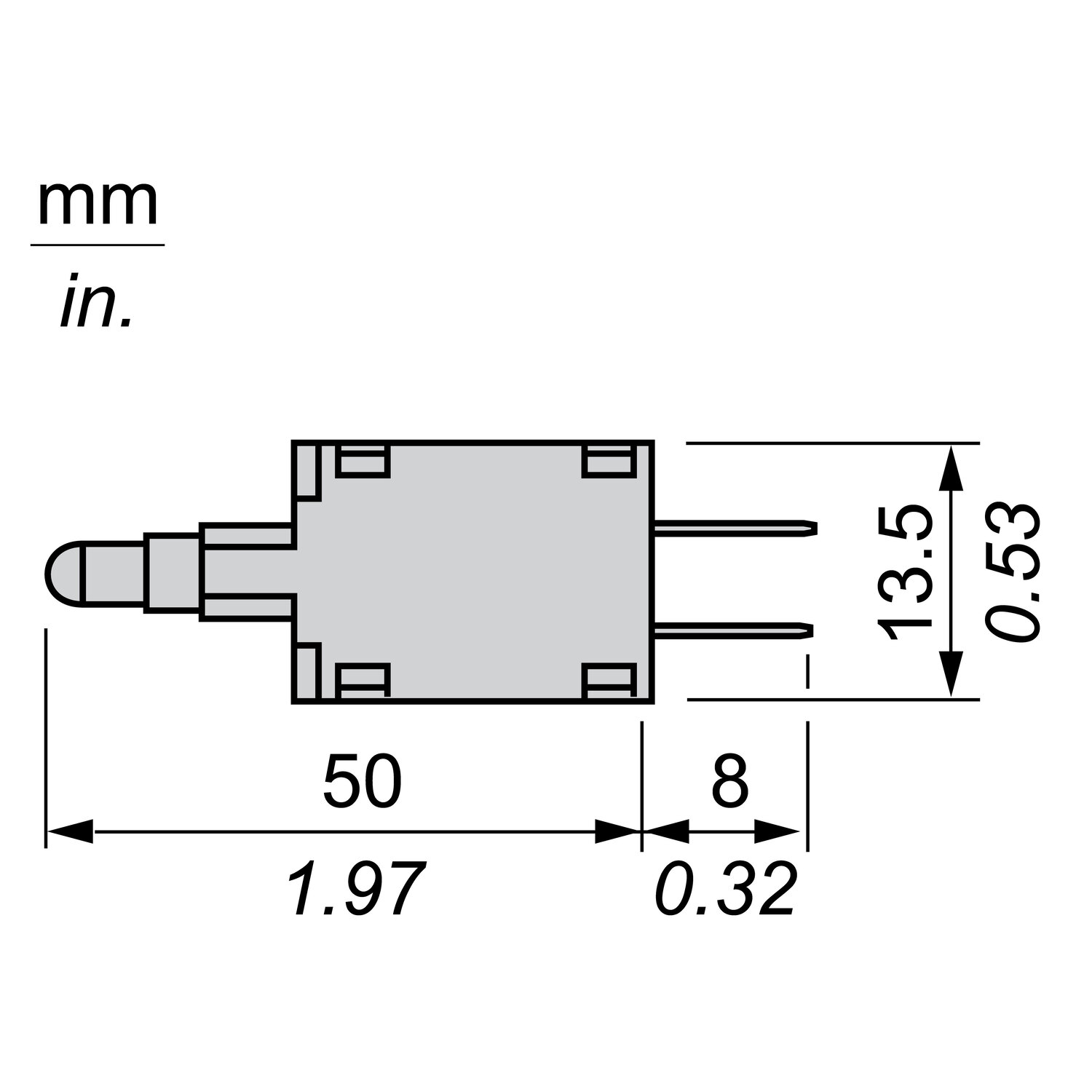

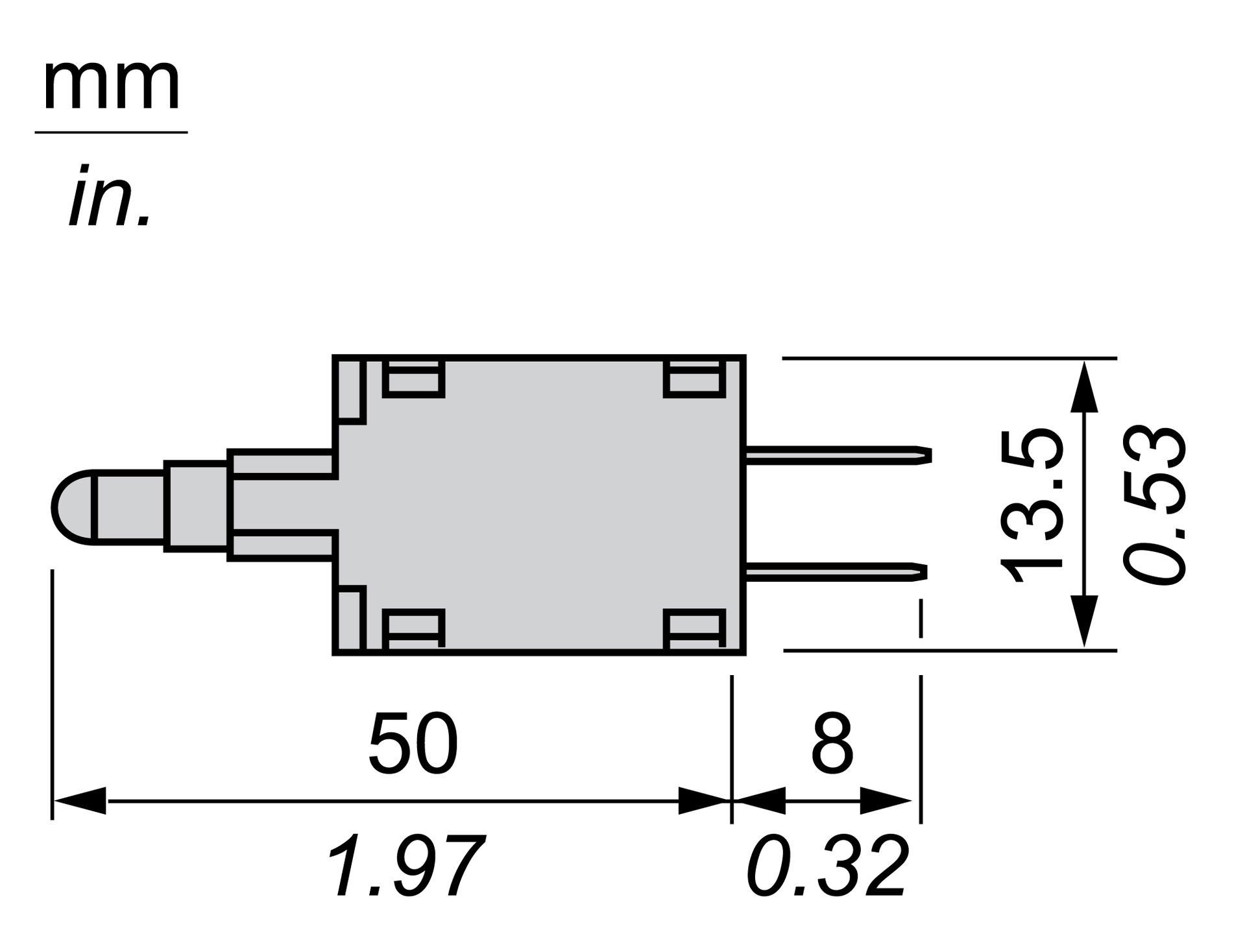

"This product is part of the Harmony XB6 range, an offer of Ø 16mm plastic pushbuttons, switches, and pilot lights." "This complete pilot light body is equipped with integral LED base and yellow LED light." "The light block is rated to 48 to 120V AC supply voltage." "It is furnished with 2.8mm x 0.5mm Faston connector for electrical connection." "It is a NEMA 4/4X/13 rated product." "Its dimensions are 58mm (depth) x 14mm (height). It weighs 0.003kg." "It is ideal for control boards, surveillance rooms, alarms, small finishing machines, local and remote control panels." "This product is certified by CCC, CSA, UL and GOST. It meets JIS C 4520, CSA C22.2 No 14, EN/IEC 60947-5-5, EN/IEC 60947-1, UL 508 and EN/IEC 60947-5-1 standards." "It is sold in 5 per indivisible quantity." "The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications."

Product identifiers

SKU: ZB6EG5B
EAN: 3389110274783
GTIN: 3389110274783
MPN: ZB6EG5B

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 13.21 - £ 13.41 Excl. VAT

Specifications

Lamp type LED
Lamp holder None
Type of fastening Front fastening
With light source yes
Colour light source Yellow
With integrated diode yes
Rated voltage Ue at DC
Transformer integrated no
Rated voltage Ue at AC 50 Hz
Connection type auxiliary circuit Flat plug-in connection

Documents

Product data sheet

Open

Catalog

Discover catalog Harmony XB6 and XB6E plastic Control and signaling units Ø 16

Open

Declaration of Conformity (Sustainability)

ZB6EG5B EU RoHS Directive

Open

Declaration of conformity

XB6A/C/D, ZB6A/C/D control and signaling units

Open

CAD

ZB6EG5B_CAD_DOC

Open

CAD

ZB6EG5B_CAD_DOC

Open

CAD

ZB6EG5B_CAD_DOC

Open

CAD

ZB6EG5B_CAD_DOC

Open
