| Depth |
90 |

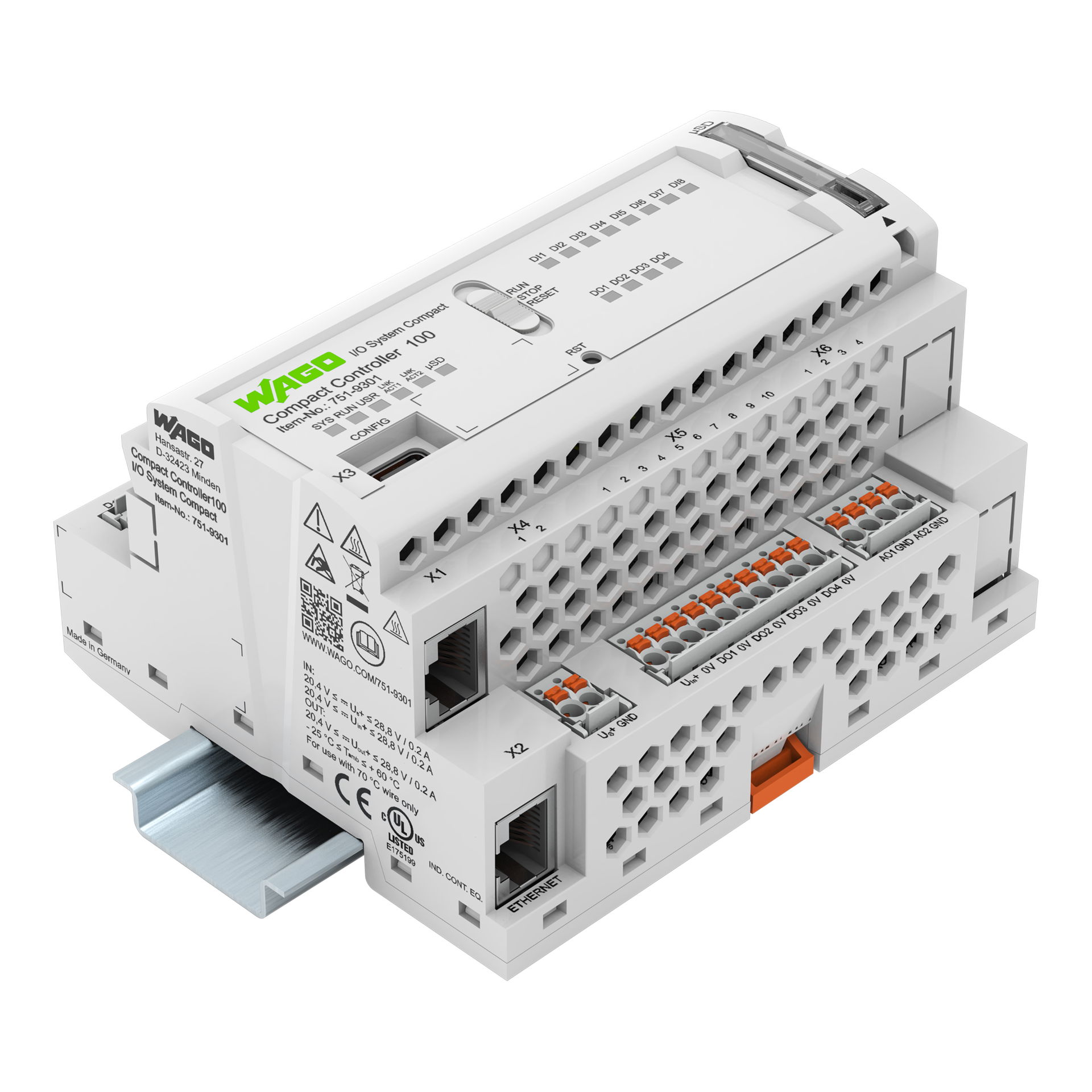

| Model |
Compact |
| Width |
108 |
| Height |
90 |
| Redundancy |
no |
| Memory size |
32768 |
| With display |
no |
| IO link master |
no |
| Type of memory |
FLASH |
| System accessory |
no |
| Radio standard 4G |
no |
| Supply voltage DC |
24 - 24 |
| Radio standard GSM |
no |
| Radio standard GPRS |
no |
| Radio standard UMTS |
no |
| Rack-assembly possible |
no |
| With optical interface |
no |
| Front built-in possible |
no |
| Number of relay outputs |
0 |
| Supply voltage AC 50 Hz |
|
| Supply voltage AC 60 Hz |
|
| Number of digital inputs |
8 |
| Radio standard Bluetooth |
no |
| Number of analogue inputs |
2 |
| Number of digital outputs |
4 |
| Number of analogue outputs |
2 |
| Radio standard WLAN 802.11 |
no |
| SIL according to IEC 61508 |
None |
| Suitable for rail mounting |
yes |
| Number of HW-interfaces USB |
0 |
| Supporting protocol for ASI |
no |
| Supporting protocol for CAN |
no |
| Supporting protocol for KNX |
no |
| Supporting protocol for LON |
no |
| Max. number of time switches |
0 |
| Supporting protocol for DNP3 |
yes |
| Number of HW-interfaces other |
1 |
| Number of interfaces PROFINET |
0 |
| Suitable for safety functions |
no |
| Voltage type (supply voltage) |
DC |
| Wall mounting/direct mounting |
no |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Supporting protocol for Modbus |
yes |
| Supporting protocol for SERCOS |
no |
| Supporting protocol for TCP/IP |
yes |
| Supporting protocol for SUCONET |
no |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces wireless |
0 |
| Supporting protocol for EtherCAT |
yes |
| Supporting protocol for INTERBUS |
no |
| Supporting protocol for PROFIBUS |
no |
| Appendant operation agent (Ex ia) |
no |
| Appendant operation agent (Ex ib) |
no |
| Explosion safety category for gas |
None |
| Supporting protocol for DeviceNet |
no |
| Supporting protocol for IEC 60870 |
yes |
| Supporting protocol for PROFIsafe |
no |
| Additional program memory possible |
yes |
| Explosion safety category for dust |
None |
| Supporting protocol for EtherNet/IP |
yes |
| Supporting protocol for PROFINET IO |
no |
| Supporting protocol for SafetyBUS p |
no |
| Supporting protocol for Data-Highway |
no |
| Supporting protocol for PROFINET CBA |
no |
| Processing time (1K, binary operation) |
- |
| Supporting protocol for INTERBUS-Safety |
no |
| Supporting protocol for DeviceNet Safety |
no |
| Supporting protocol for other bus systems |
yes |
| Supporting protocol for IEC 61850 Ethernet |
yes |
| Certified for UL hazardous location class I |
no |
| Number of HW-interfaces industrial Ethernet |
2 |
| Supporting protocol for Foundation Fieldbus |
no |
| Certified for UL hazardous location class II |
no |
| Certified for UL hazardous location class III |
no |
| Performance level according to EN ISO 13849-1 |
None |
| Certified for UL hazardous location division 1 |
no |
| Certified for UL hazardous location division 2 |
no |
| Supporting protocol for AS-Interface Safety at Work |
no |
| Certified for UL hazardous location group D (propane) |
no |
| Certified for UL hazardous location group B (hydrogen) |
no |
| Certified for UL hazardous location group C (ethylene) |
no |
| Certified for UL hazardous location group A (acetylene) |
no |
| Certified for UL hazardous location group E (metal dusts) |
no |
| Certified for UL hazardous location group F (carbonaceous dusts) |
no |
| Certified for UL hazardous location group G (non-conductive dusts) |
no |
