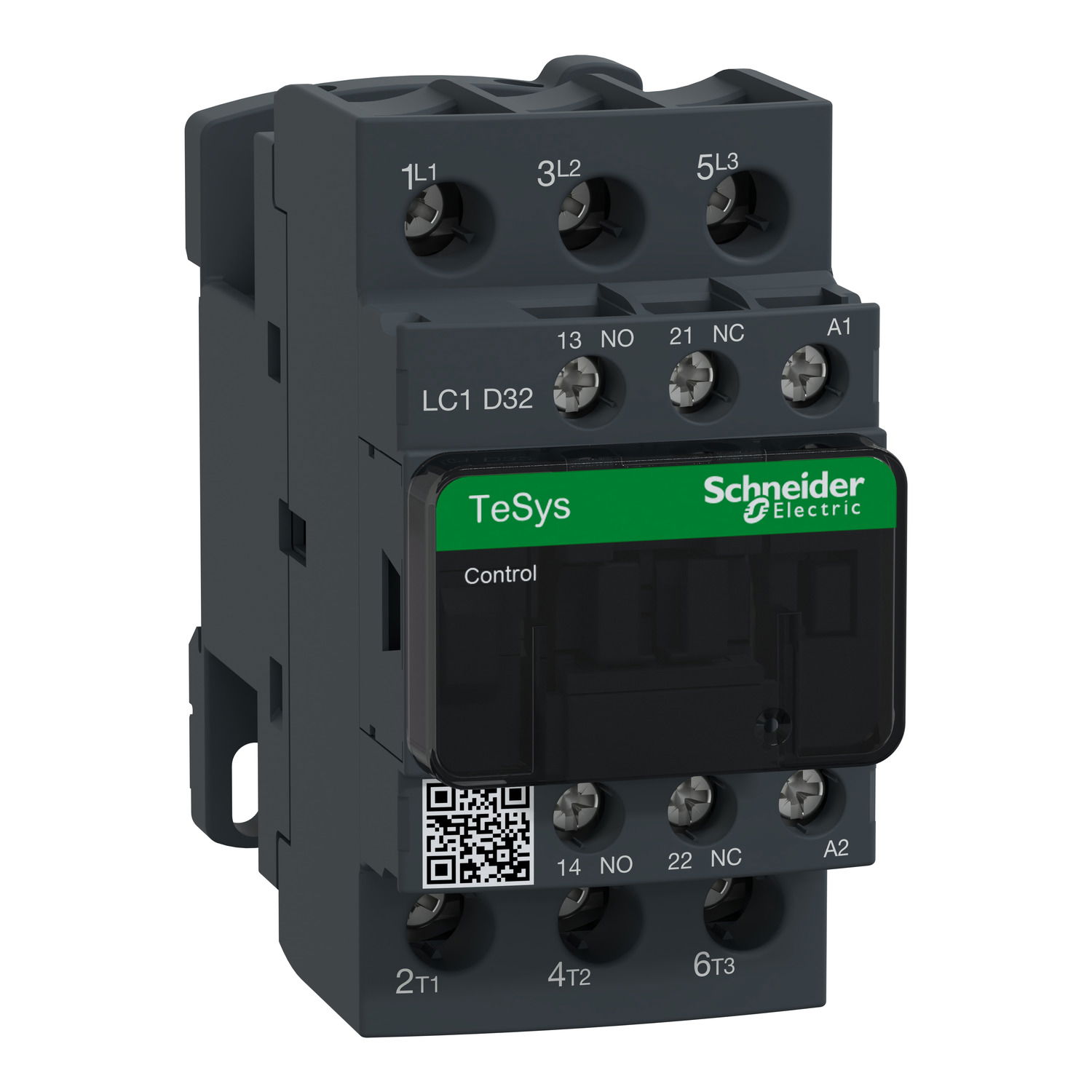

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 220 V AC coil

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 220 V AC coil – Image 2 of 5

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 220 V AC coil – Image 3 of 5

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 220 V AC coil – Image 4 of 5

1 / 5

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 220 V AC coil

Name: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 220 V AC coil
Brand: Schneider Electric
SKU: LC1D32M7
Availability: InStock

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 220 V AC coil by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £78.61 to £128.04 excl. VAT. Voltimum+ members earn 17 points per unit.

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LC1D32M7

EAN: 3389110351088

GTIN: 3389110351088

MPN: LC1D32M7

Loyalty points: 17

Price range: £ 78.61 - £ 128.04 Excl. VAT

Specifications

Depth	92 mm
Width	45 mm
Height	85 mm
Modular version	no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	-
Voltage type for actuating	AC
Rated control supply voltage DC
Rated operation power at AC-3, 400 V	15 kW
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	50 A
Rated operation current Ie at AC-3, 400 V	32 A
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
