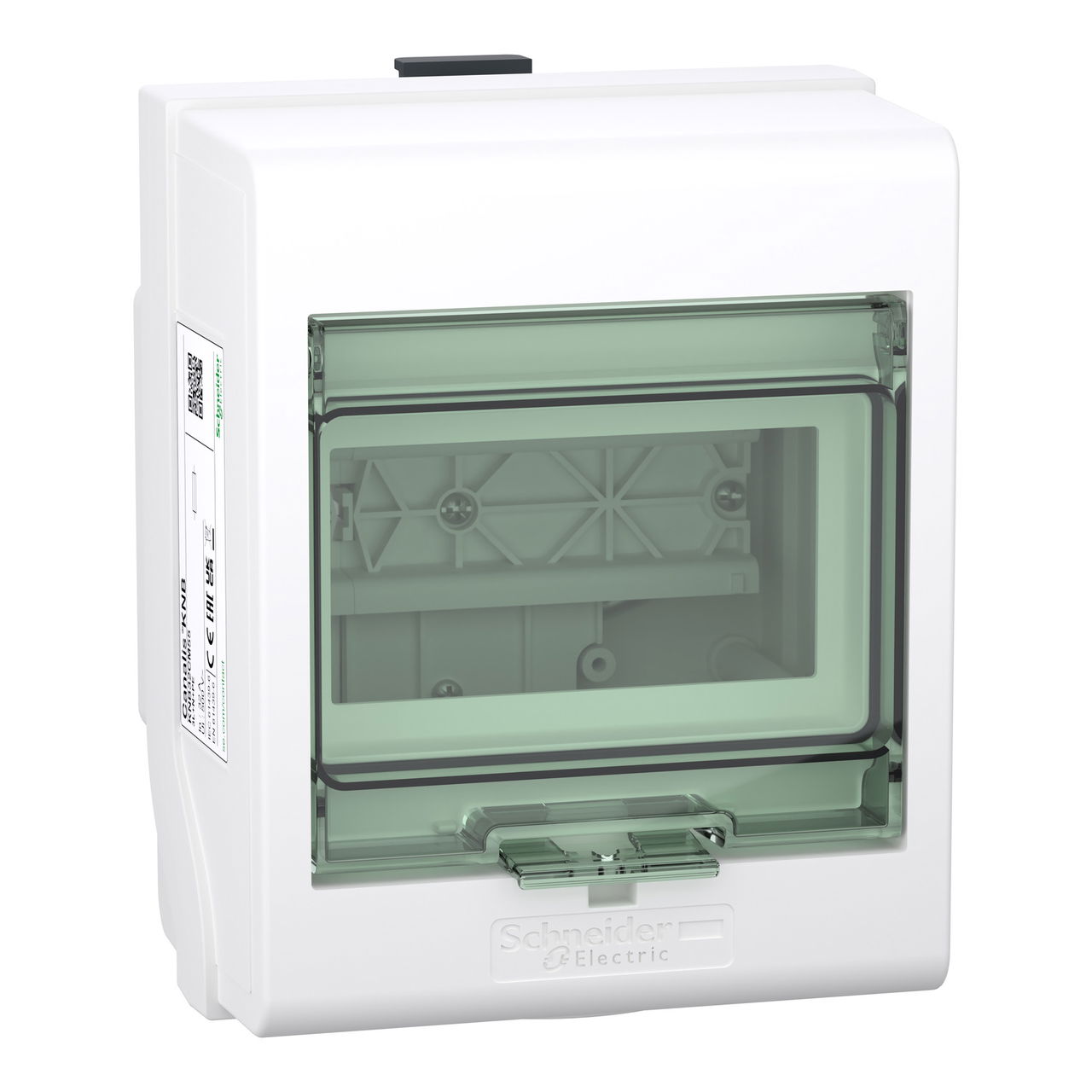

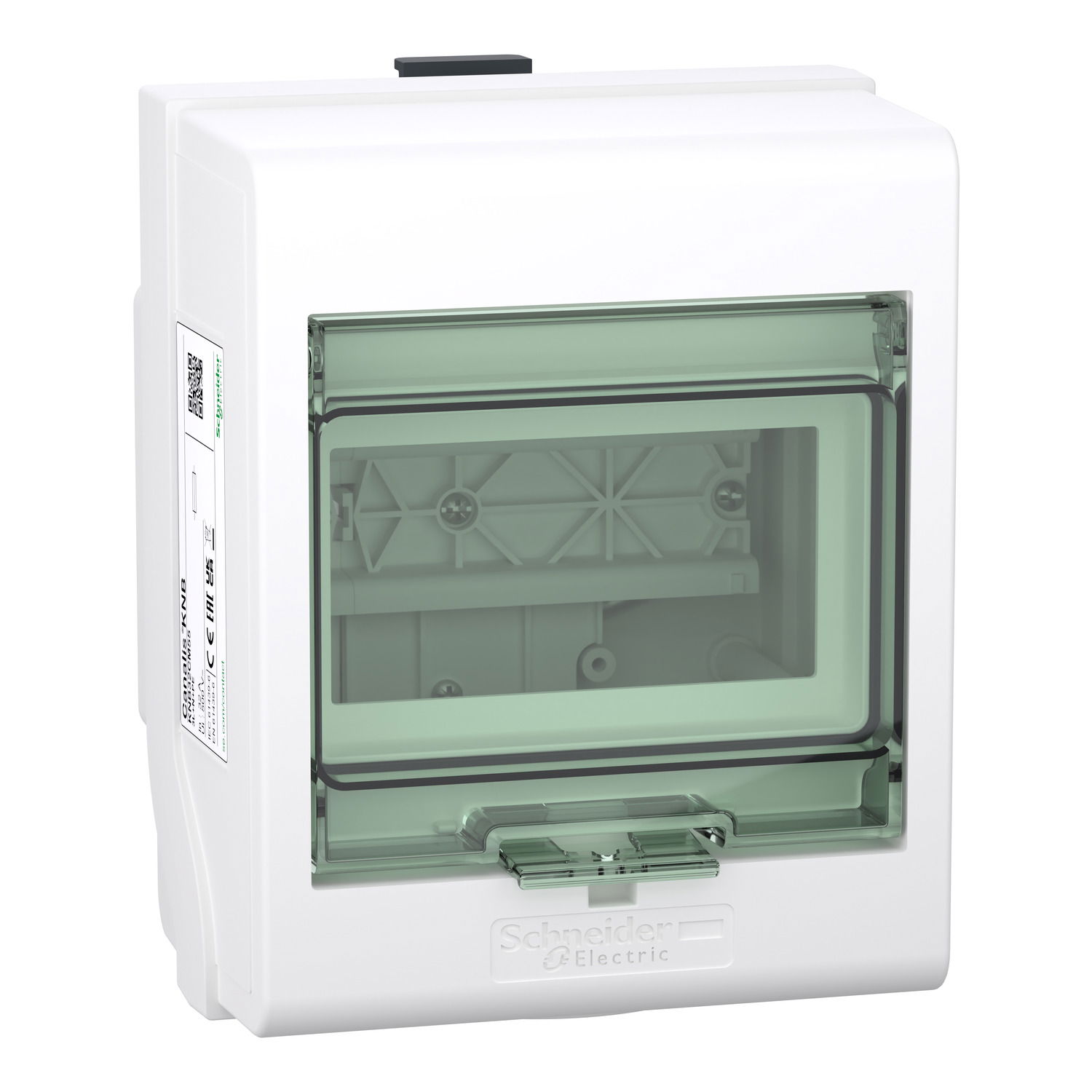

TAPOFF UNIT 32A FOR MODULAR EQUIPMENT

Link copied
SKU
EAN
GTIN
MPN

TAPOFF UNIT 32A FOR MODULAR EQUIPMENT by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £98.80 to £99.79 excl. VAT. Voltimum+ members earn 12 points per unit.

This is a 4 poles tap off unit for Canalis KN busbar trunking with plug-in outlets. It is used for rapid connection of loads or secondary lines in compliance with installation standards IEC 60364 and regulations concerning TT, IT and TNS earthing systems. This tap off unit for modular devices (not provided) accepts up to 5 devices of 18mm width. The rated operational current is 32A. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. Mounting by plug-in with fixed polarity. The tap-off unit polarity is 3L+N+PE, disconnection by drawing out. Door/cover could be open front side. Tap-off unit cover can be lead sealed to prevent circuit breaker switching by unauthorised persons. It is suitable for TT, IT, TN-S and TN-C earthing system. The colour is white RAL 9001. Blanking plate is provided, MCB circuit breaker have to be ordered separately. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).

Voltimum+ Loyalty Programme Loyalty points: 12

Price range: £ 98.80 - £ 99.79 Excl. VAT

Specifications

Width 95 mm
Colour White
Height 165 mm
Length 135 mm
Protection None
RAL-number 9001
With locking no
Branch off type Pipe in-lead
Phase selection no
Rated voltage AC 50 Hz
Degree of protection (IP) IP55
Number of NEMA socket outlets 0
Number of conductors (without earthing) 4

Documents

Declaration of Conformity (Sustainability)

KNB32CM55 REACh Regulation

Open

Instruction sheet

KNB32CM55 - TAP-OFF UNIT 32A FOR MODULAR EQUIPMENT - Instruction Sheet

Open

Product data sheet

Open

Catalog

Canalis KN 40 to 160A

Open

Catalog

Canalis KN 40 to 160A

Open

Declaration of Conformity (Sustainability)

KNB32CM55 EU RoHS Directive

Open

Declaration of conformity

Canalis KNB / UK Declaration of conformity / BS EN 61439-6

Open

Environmental Disclosure

PEP - Canalis KNA 40A to 160A

Open
