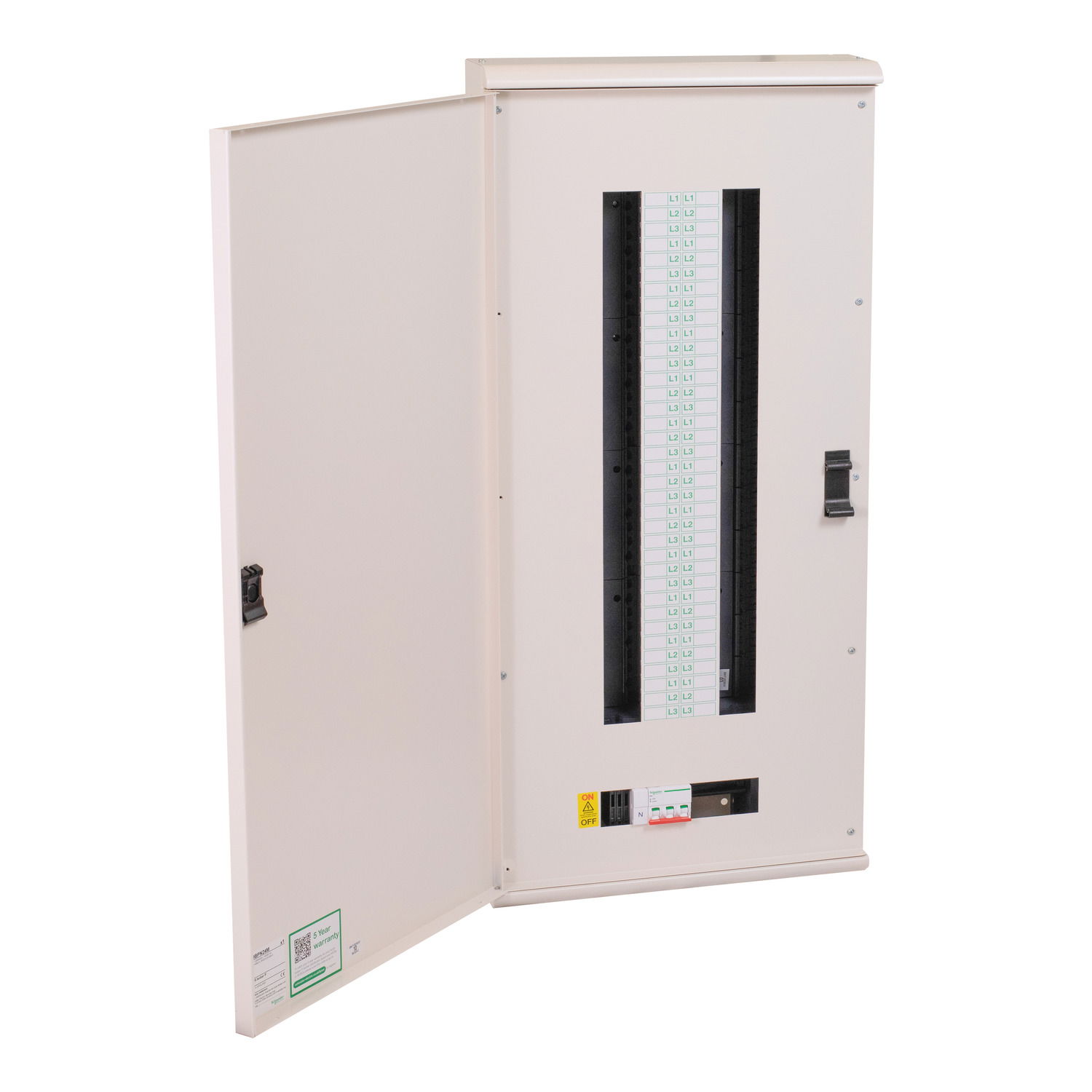

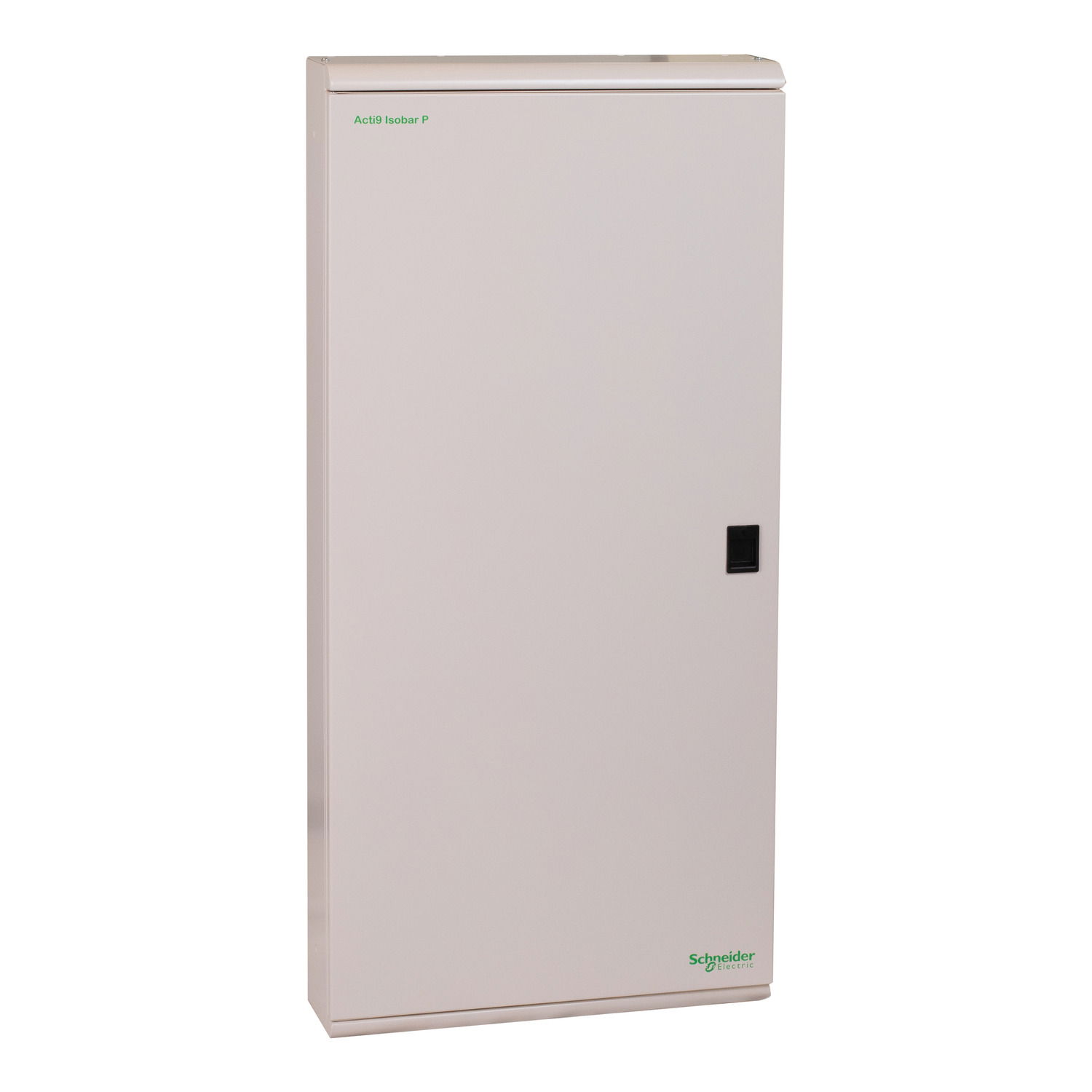

Acti9 Isobar B P - meter ready distribution board - 24 Ways TP+N

Link copied
SKU
EAN
GTIN
MPN

Acti9 Isobar B P - meter ready distribution board - 24 Ways TP+N by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £1,216.29 excl. VAT. Voltimum+ members earn 183 points per unit.

This Acti9 Isobar P B product is a meter ready distribution board, up to 125A. It is a 24 ways of 3P+N poles outgoer for lower pan assembly. This distribution board includes a 125A switch disconnector incomer and are enabled for an incoming meter connection. It is suitable for standard, commercial and industrial applications. The dimensions are (W) 470mm x (H) 1024mm x (D) 139mm. According to BS/EN 60529 standard, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL 9001). This distribution board is compliant with BS/EN 61439-3 standard.

Voltimum+ Loyalty Programme Loyalty points: 183

Price: £ 1,216.29 Excl. VAT

Specifications

Depth 139 mm
Width 470 mm
Colour Other
Height 1024 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block yes
Earthing terminal block yes
Width in number of modular spacings 24
