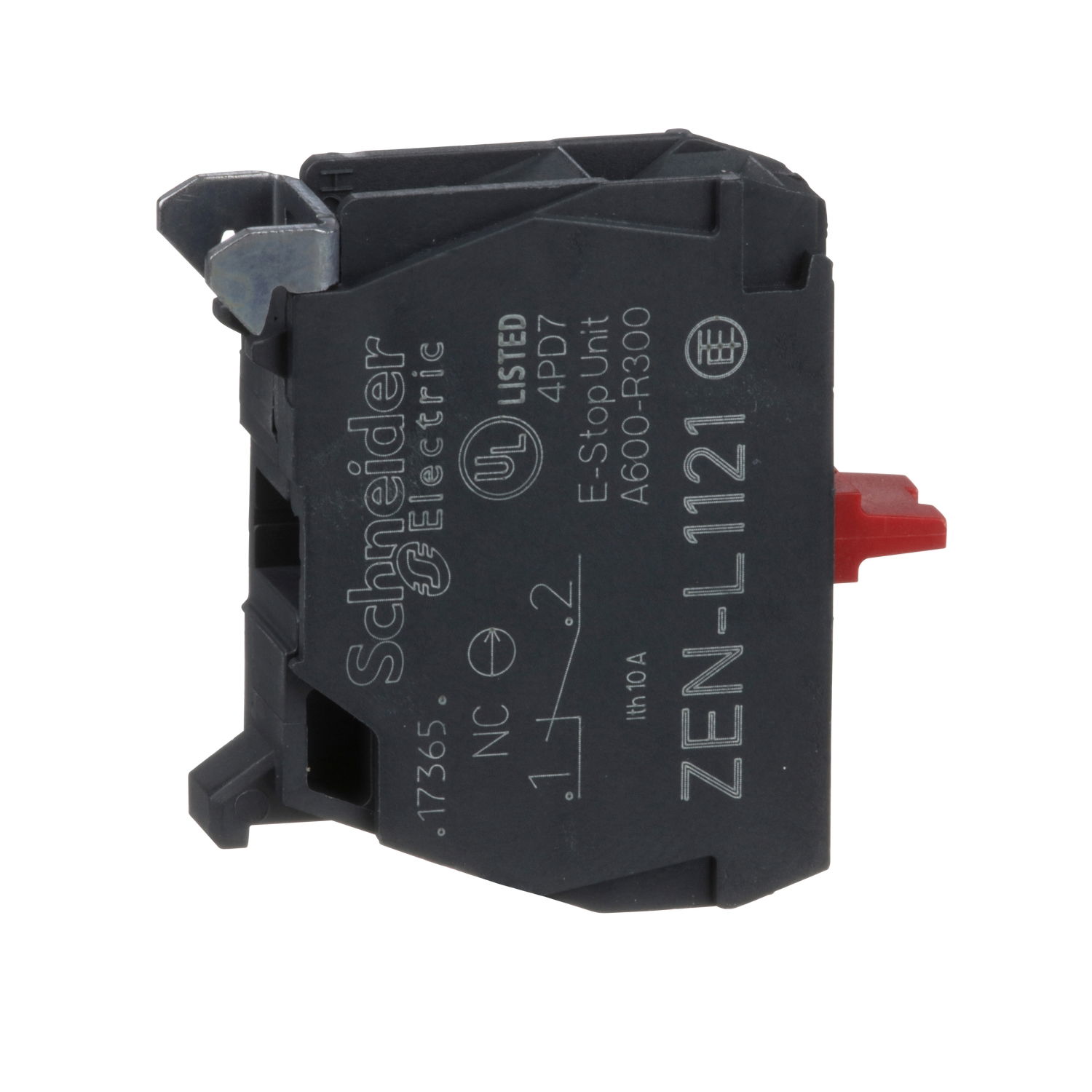

Single contact block for head Ø22 1NC screw clamp terminal

Link copied
SKU
EAN
GTIN
MPN

Single contact block for head Ø22 1NC screw clamp terminal by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £5.17 to £8.86 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony XAL, single contact block uses screw-clamp terminals and has 1 x NC contact. It is compatible with Harmony XB5 control and signaling units and XAPS control stations. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches and XAPS control station and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. 1 million cycle high endurance allows less maintenance and damage in your installation. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 5.17 - £ 8.86 Excl. VAT

Specifications

Model Integrable
Lamp holder None
Mounting method Floor fastening
Type of electric connection Screw connection
Number of fault-signal switches 0
Number of contacts as change-over contact 0
Rated operation current Ie at AC-15, 230 V 3 A
Number of contacts as normally open contact 0
