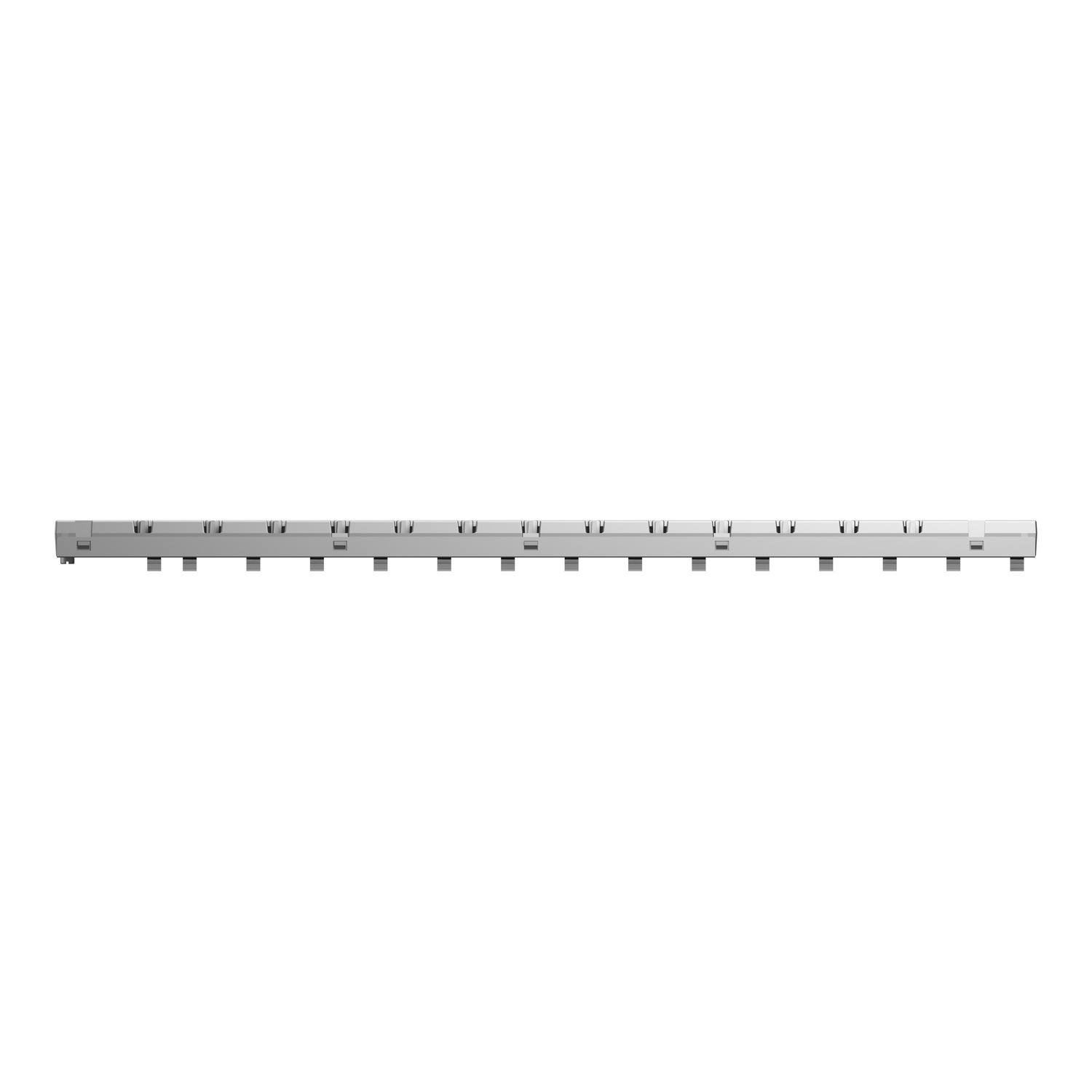

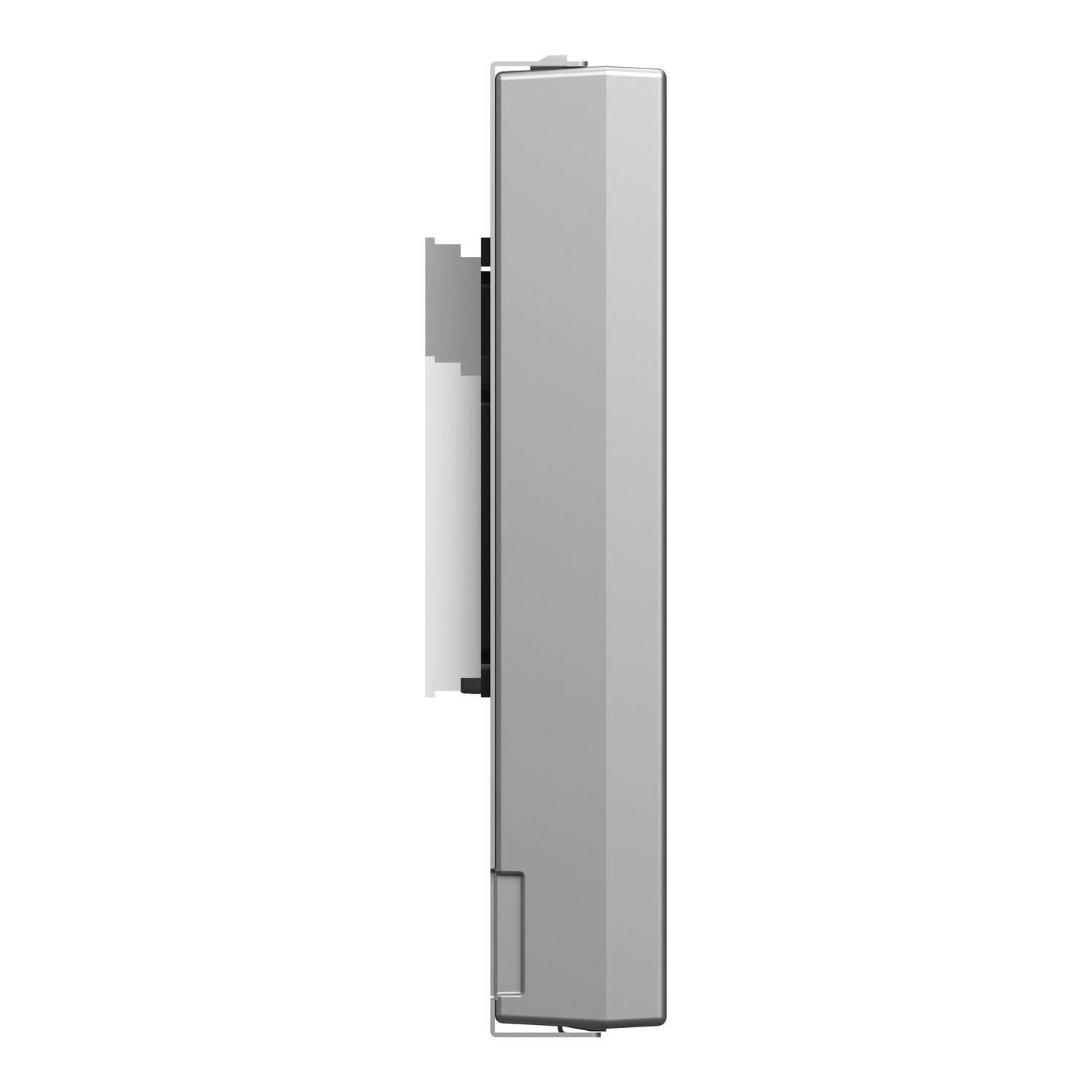

Ruggedized rack X80 - 12 slots - Ethernet backplane

Link copied
SKU
EAN
GTIN
MPN

Ruggedized rack X80 - 12 slots - Ethernet backplane by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £516.11 excl. VAT. Voltimum+ members earn 61 points per unit.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 12-slot dual Ethernet and X-bus backplane provides 12 slots with 8 Ethernet and X-bus connectors for mixed modules and 4 X-bus connectors for X-bus modules. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 86mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1500000 hours of MTBF. It is an IP20 rated product. It weighs 1.377kg. It is suitable for severe environments, medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Voltimum+ Loyalty Programme Loyalty points: 61

Price: £ 516.11 Excl. VAT

Specifications

Depth 19 mm
Width 503.2 mm
Height 105.11 mm
Redundancy no
Number of slots 12
Input voltage DC
Output voltage DC
Max. input current DC 164 A
Input voltage AC 60 Hz
Rack-assembly possible yes
Front built-in possible yes
Output voltage AC 60 Hz
Suitable for rail mounting yes
Max. input current AC 60 Hz -
Max. output current AC 60 Hz -
Suitable for safety functions no
Type of voltage (input voltage) AC/DC
Appendant operation agent (Ex ib) no
Explosion safety category for dust None
