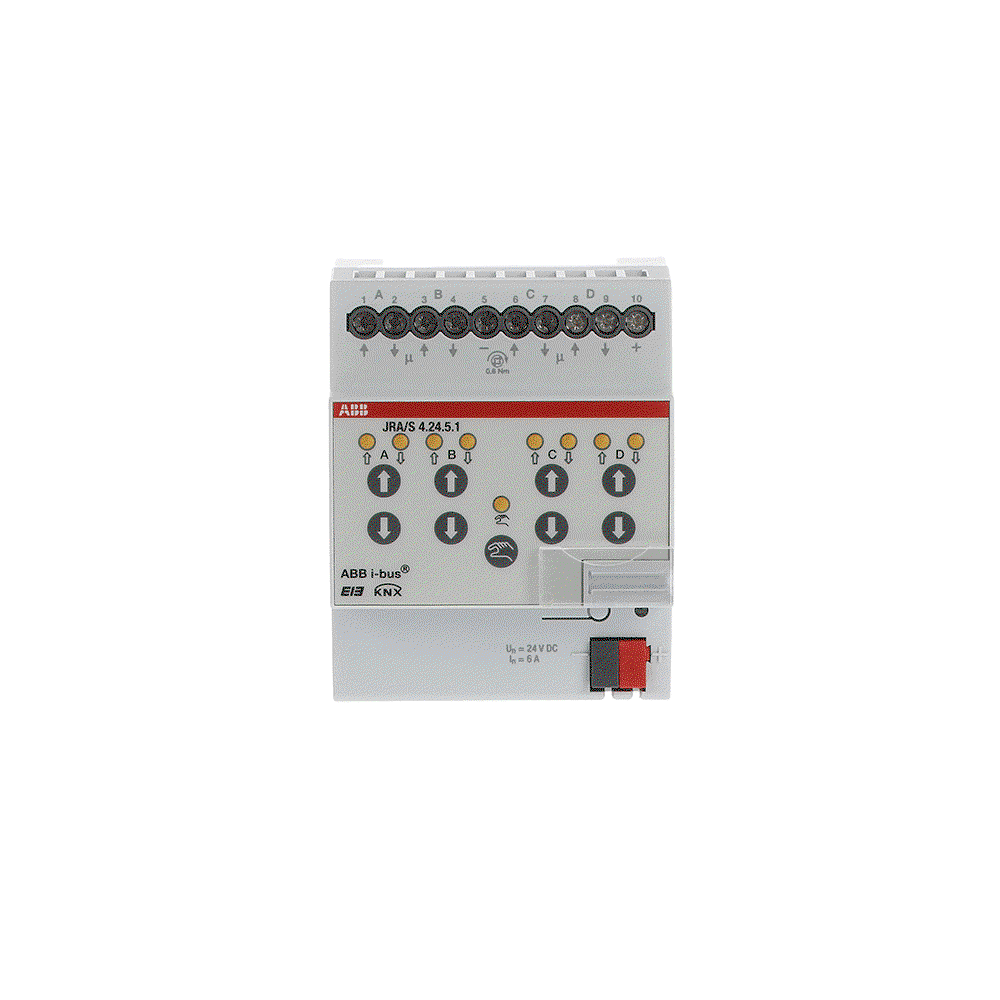

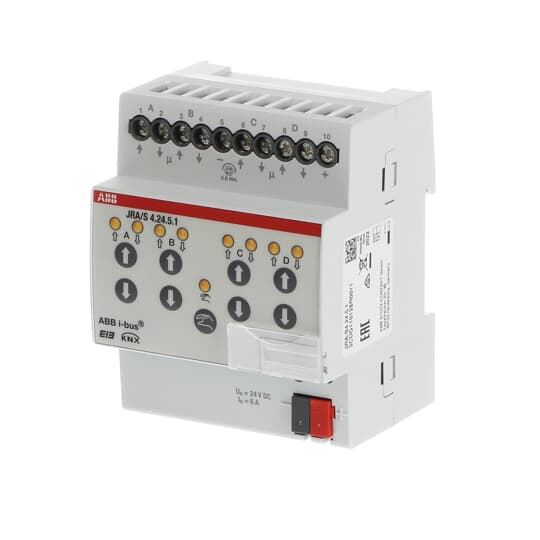

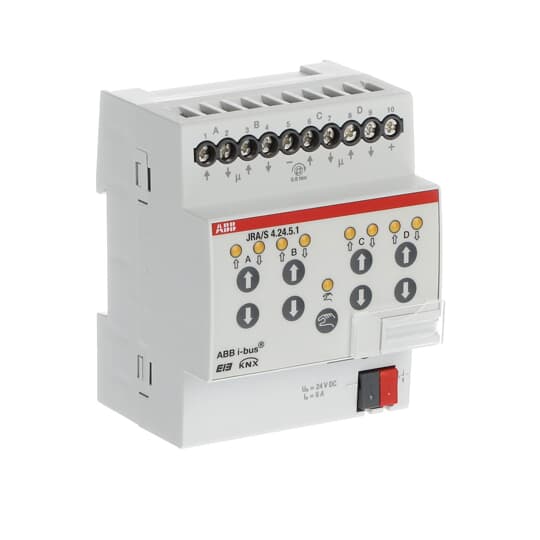

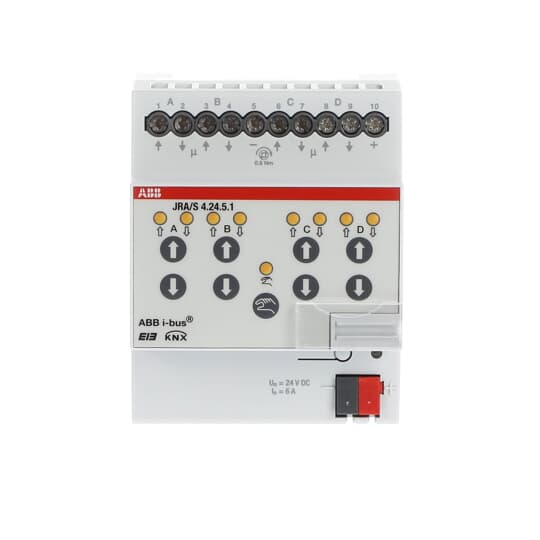

JRA/S4.24.5.1 Blind/Roller Shutter Act, Travel Det, 4-f, 24 V DC, Man Op, MDRC

Link copied
SKU
EAN
GTIN
MPN

JRA/S4.24.5.1 Blind/Roller Shutter Act, Travel Det, 4-f, 24 V DC, Man Op, MDRC by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £358.34 excl. VAT. Voltimum+ members earn 215 points per unit.

For the control of up to 4 independent 24 V DC drives via ABB i-bus® KNX. The device is designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. The travel times of the drive are detected automatically via current detection. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs.

Voltimum+ Loyalty Programme Loyalty points: 215

Price: £ 358.34 Excl. VAT

Specifications

Bus system KNX yes
Bus system LON no
Mounting method DRA (DIN-rail adapter)
Type of current DC
Number of inputs -
Other bus systems None
Power consumption -
Bus system Powernet no
With bus connection yes
With switch function yes
Degree of protection (IP) IP20
Radio frequency bidirectional no
Local operation/hand operation yes
Width in number of modular spacings 4
Min. depth of built-in installation box 64.5

Documents

Deeplink product page

Open

Deeplink REACH

9AKK107492A1906_en_K_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

4_TE_MB_XX_V1-0_2CDC072033F0015_Rev_A.eps

Open

Instructions for use

JRAS_42451_MBA_7S_V1-2_2CDG941079P0005.pdf

Open

Product data sheet

Open

Declaration RoHS

JRAS_42451_ROHS_XX_V1-0_2CDG510125-0100.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

JRAS_42451_CE_XX_V1-3_2CDK506043D2701.pdf

Open
