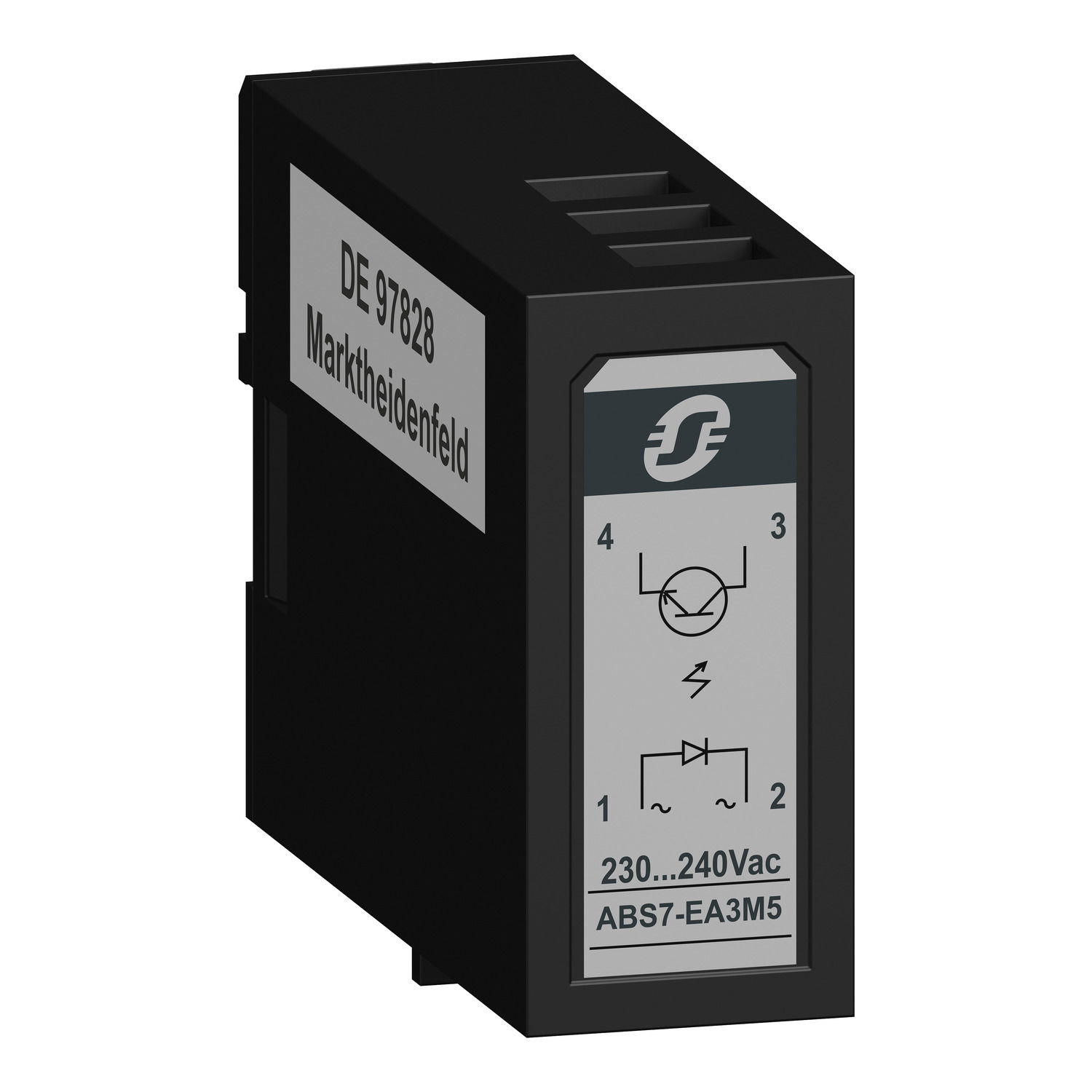

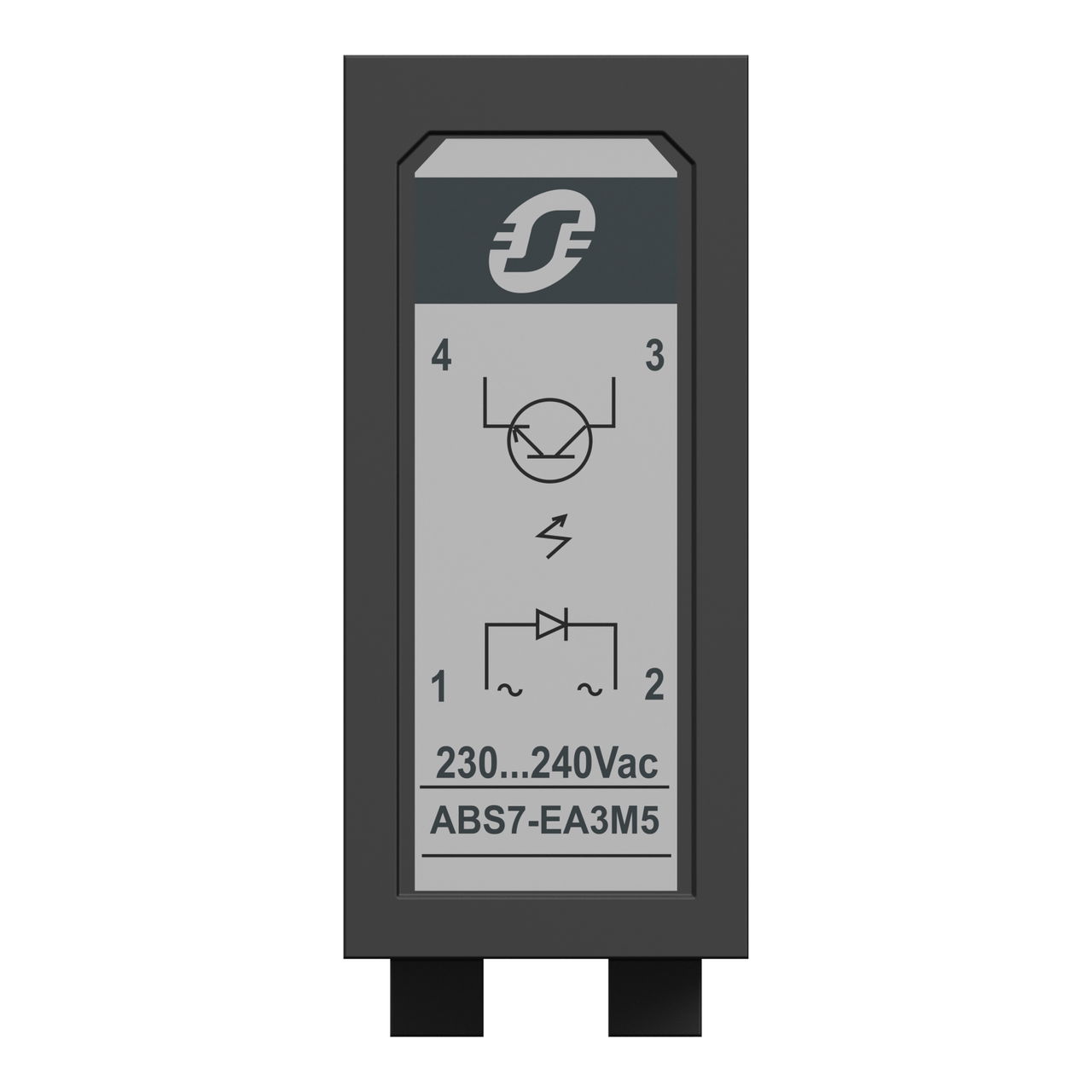

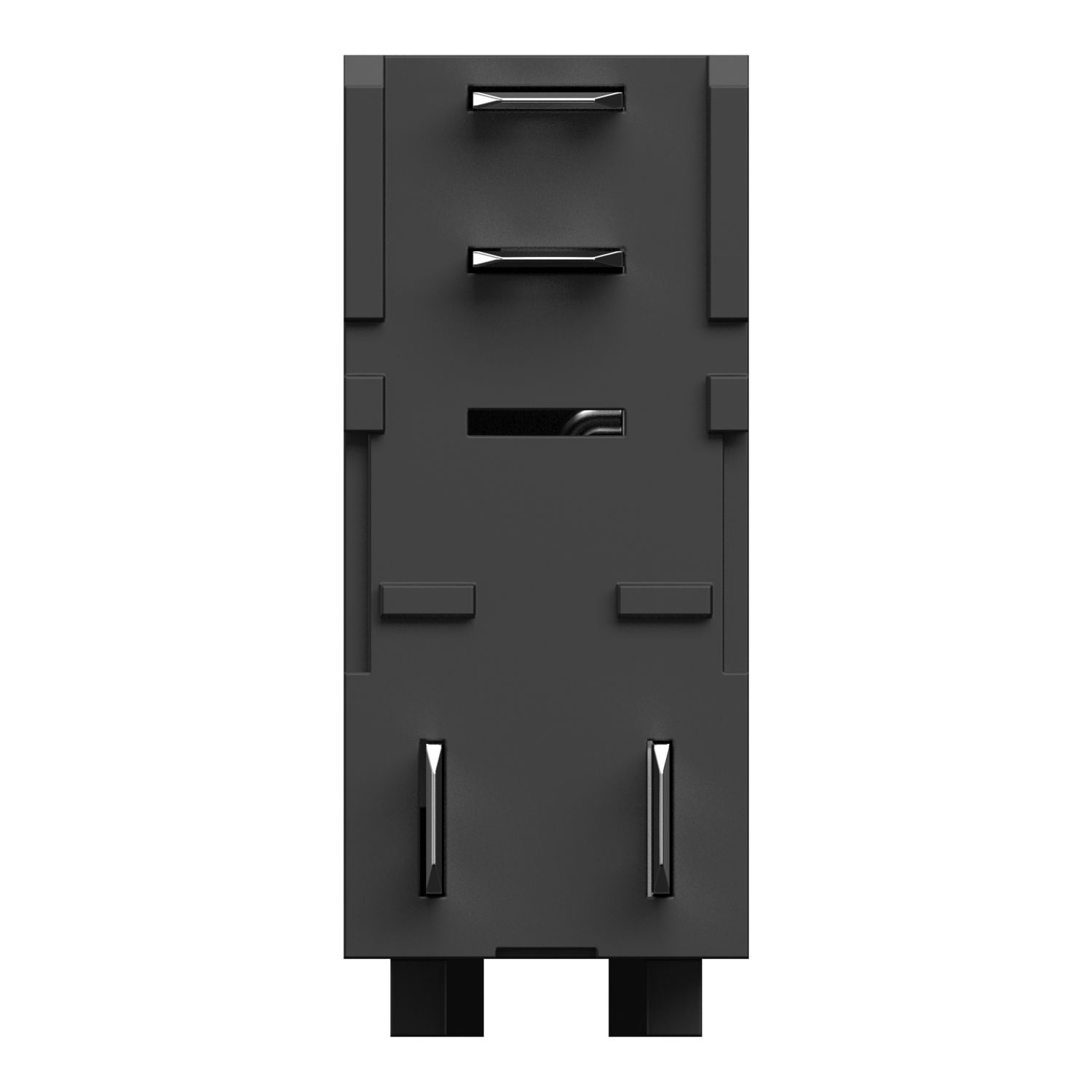

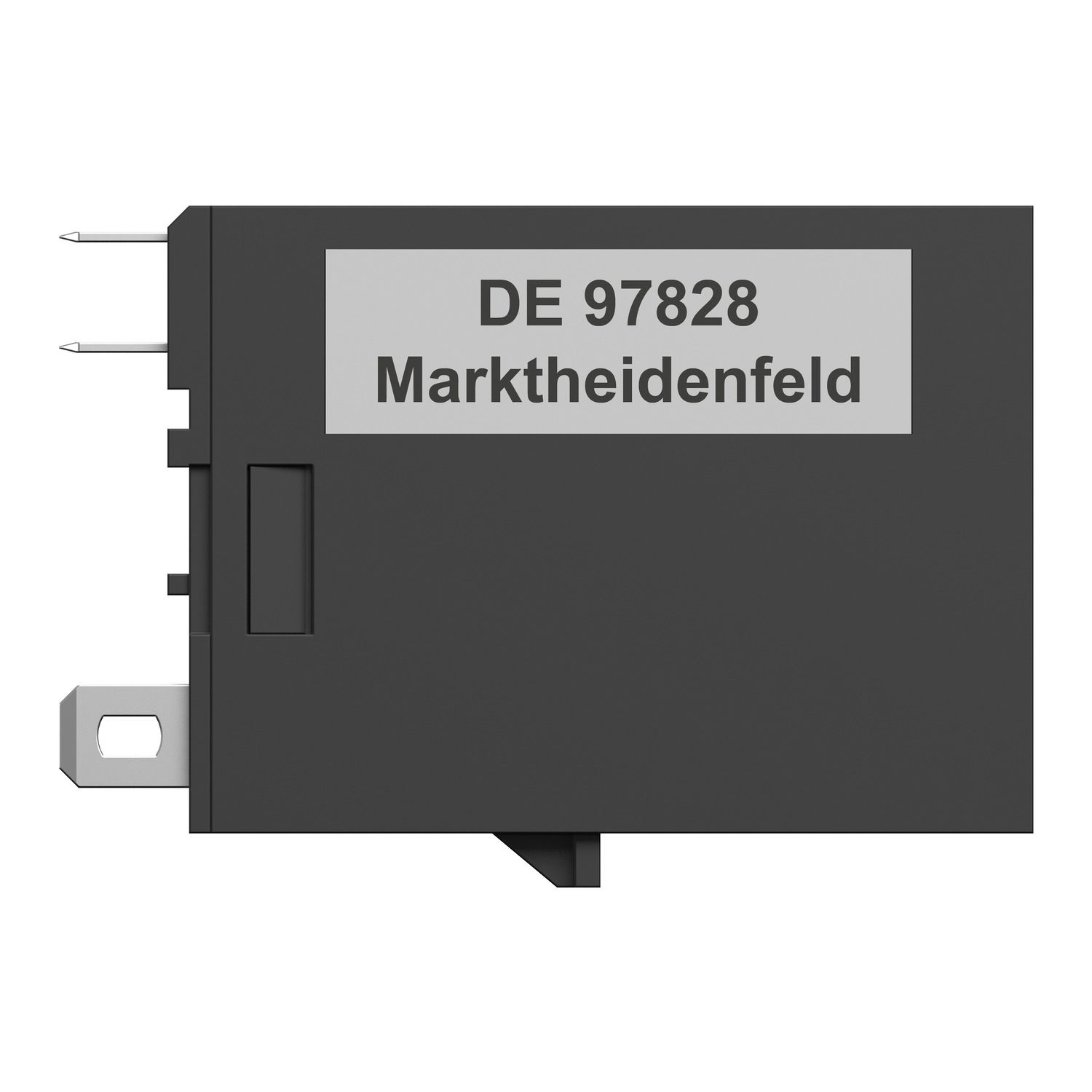

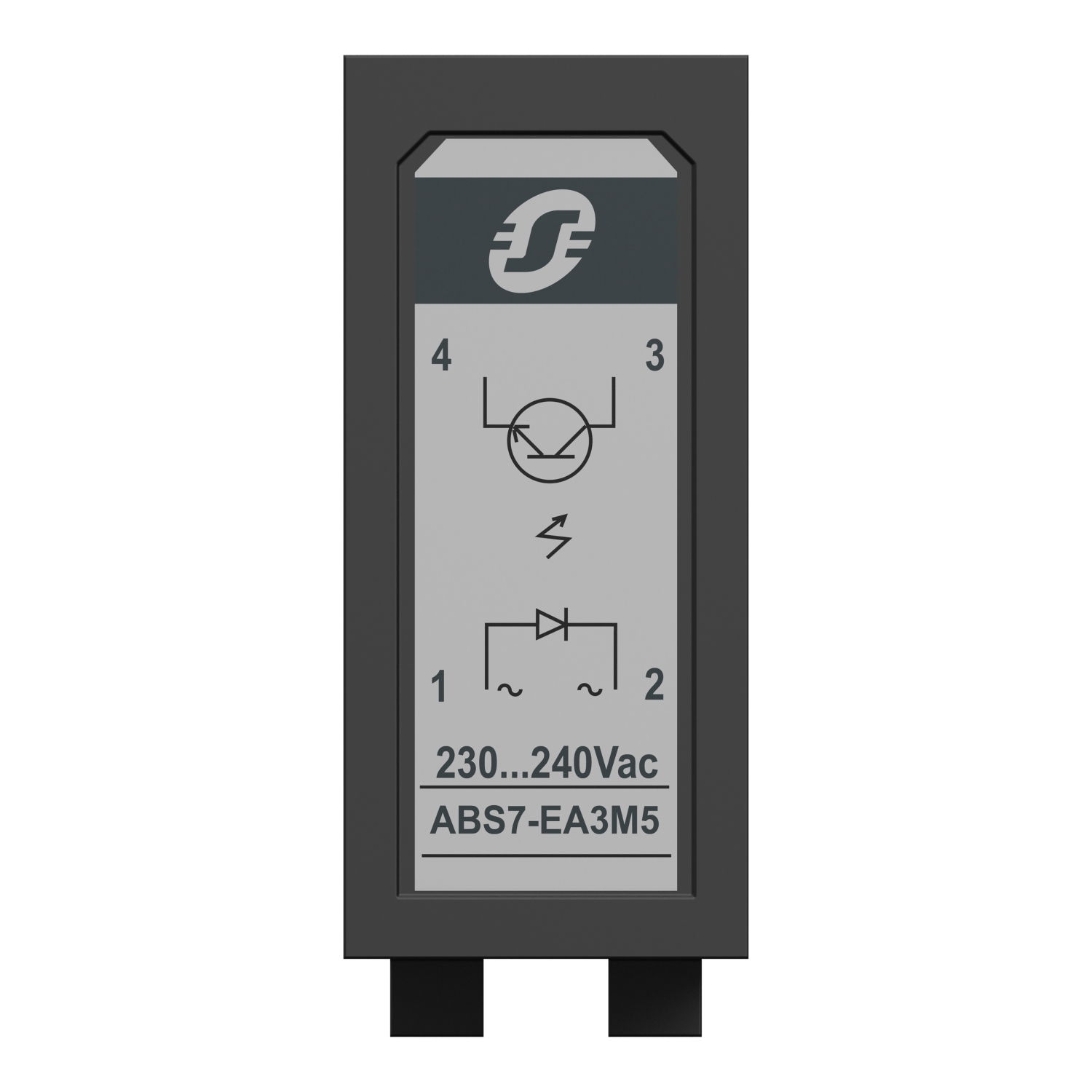

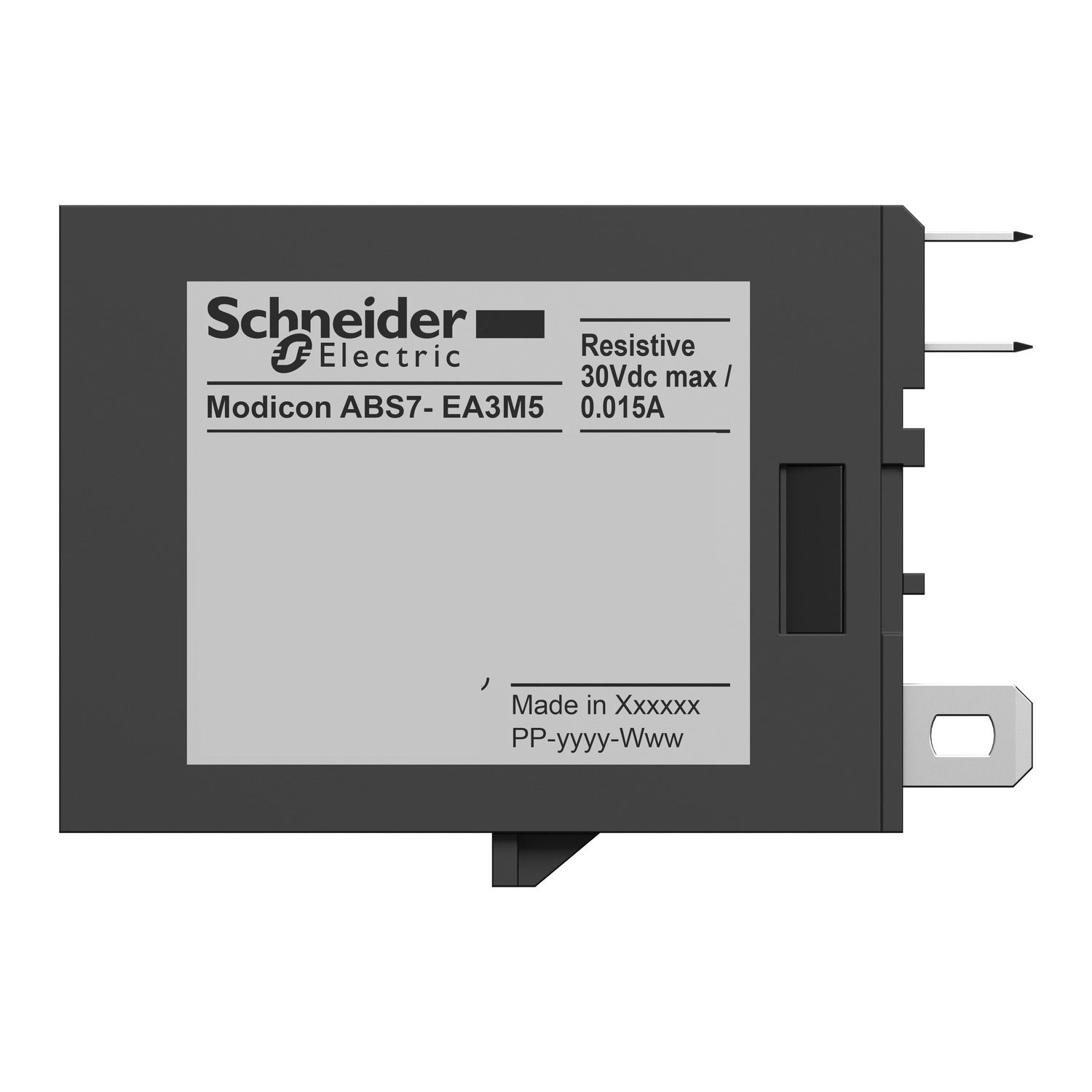

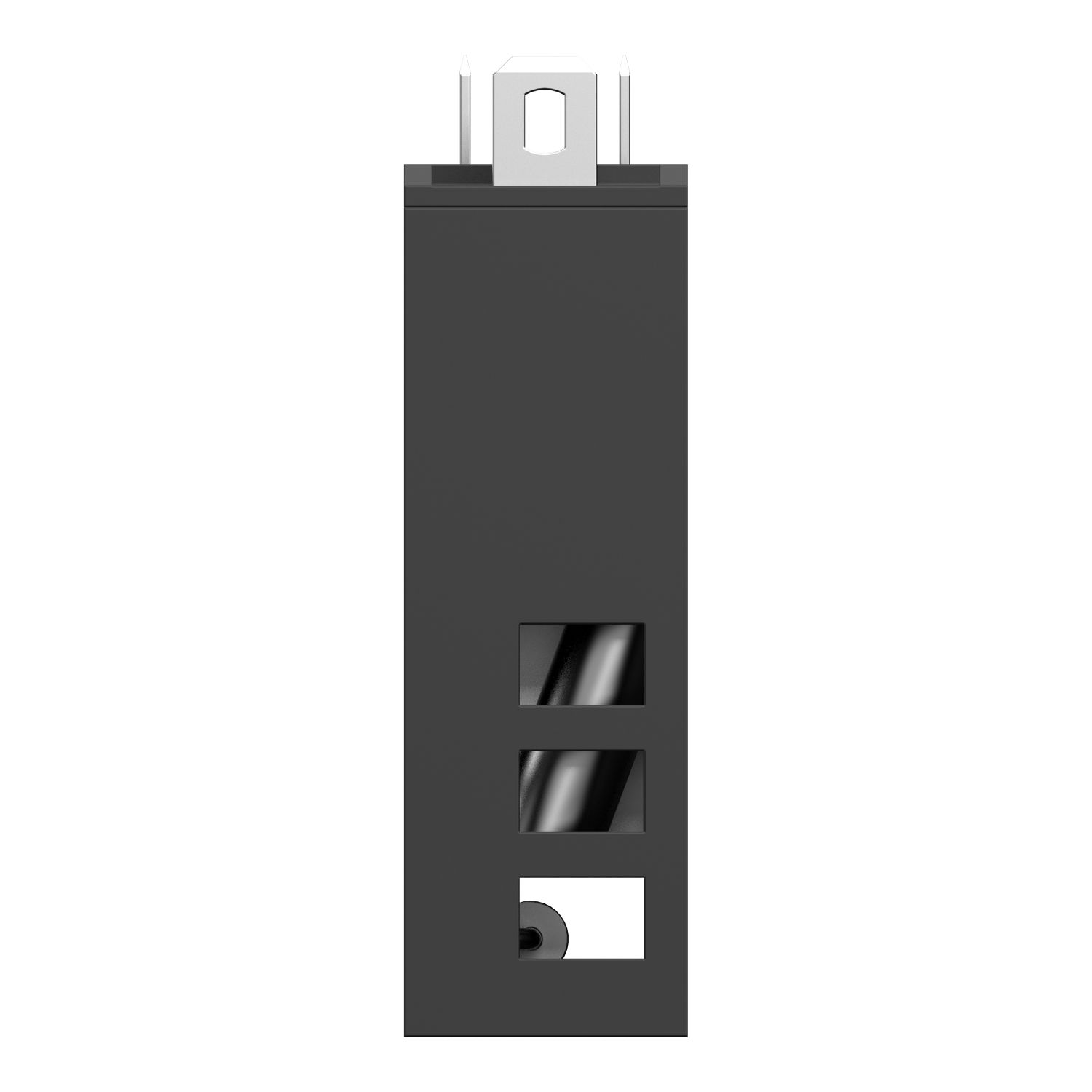

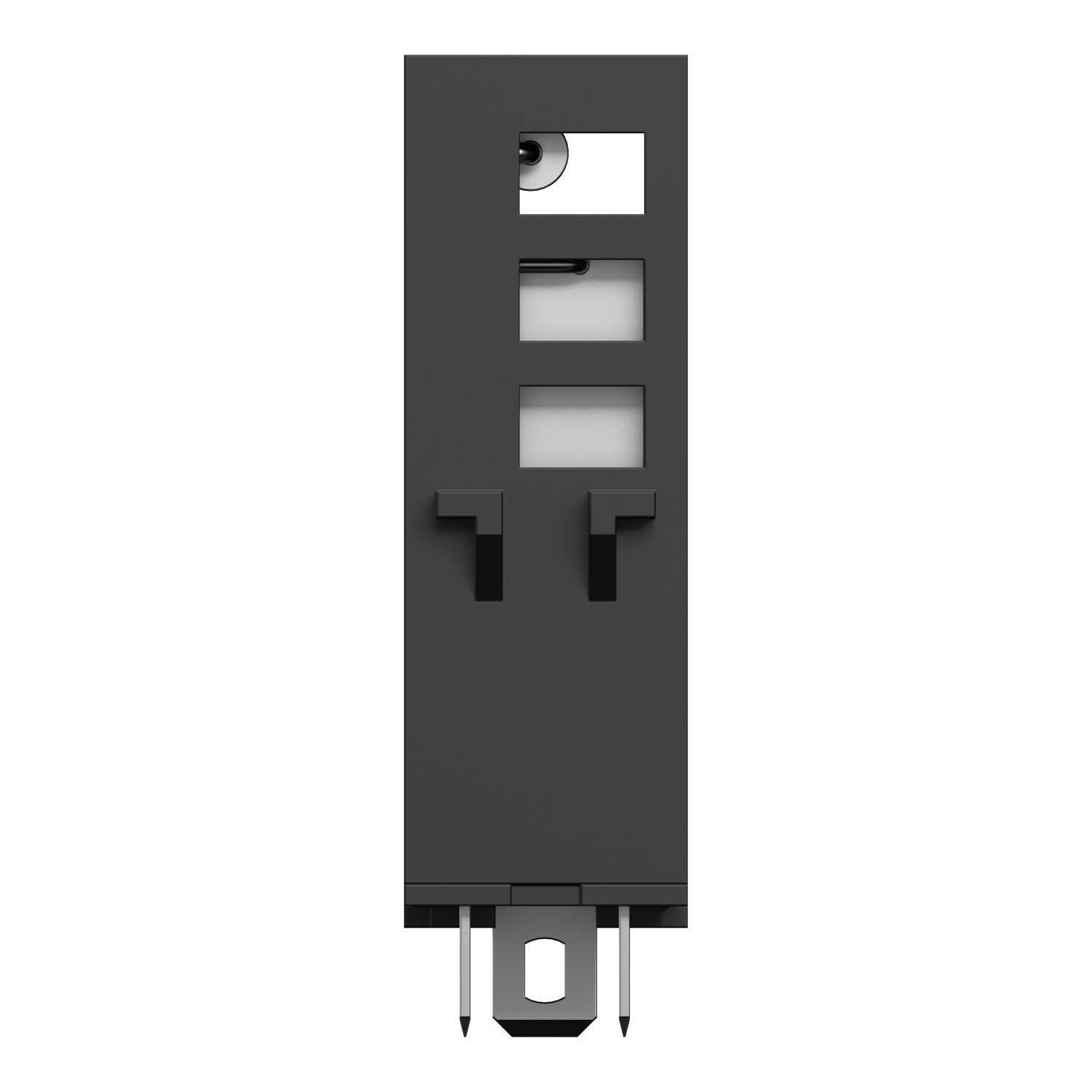

Plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ
This product is part of the Advantys Telefast ABE7, an offer of connection sub-bases for Telefast pre-wired system. This plug in solid state relay offers input relay with ≤20ms from state 0 to 1 and ≤20ms from state 1 to 0 response time. It is a sub-base with discrete input voltage ranges from 230V AC to 240V AC and discrete output voltage ranges from 5V DC to 24V DC. The width of this product is 12mm. It weighs 0.014kg. It is suitable for all types of industrial applications. It is compatible with Modicon ABE7P16F310, ABE7P16F310E and ABE7P16F312 sub-base. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Product identifiers
SKU: ABS7EA3M5
EAN: 3389110720853
GTIN: 3389110720853
MPN: ABS7EA3M5
Loyalty points:
6
Price: £ 18.13 Excl. VAT
Features
|
Function
|
Completely electronic
|
|
Rated current
|
0.5 A
|
|
Built-in depth
|
55 mm
|
|
Supply voltage
|
|
|
Mounting method
|
DIN rail
|
|
Control voltage 1
|
|
|
Control voltage 2
|
|
|
Type of control voltage 1
|
AC/DC
|
|
Type of control voltage 2
|
-
|
|
Max. load fluorescent lamp
|
-
|
|
Frequency control voltage 1
|
|
|
Frequency control voltage 2
|
|
|
Max. incandescent lamp load
|
-
|
|
Voltage type (supply voltage)
|
AC/DC
|
|
Width in number of modular spacings
|
0
|
|
Max. switching current (cos phi = 0.6)
|
-
|
|
Max. load fluorescent lamp (Duo circuit)
|
-
|
|
Number of contacts as change-over contact
|
0
|
|
Number of contacts as normally open contact
|
0
|
|
Number of contacts as normally closed contact
|
0
|
|
Max. load fluorescent lamp (parallel compensated)
|
-
|
