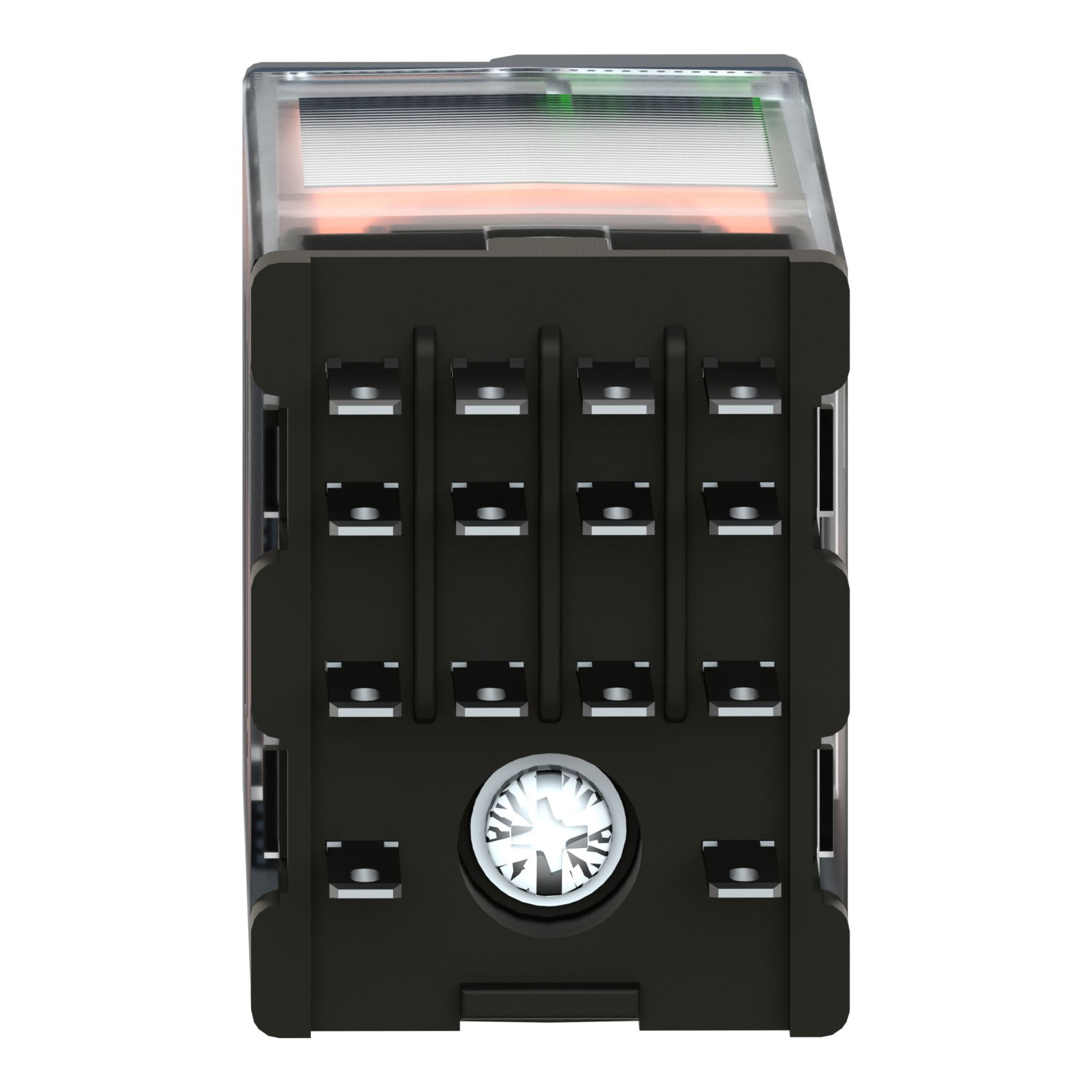

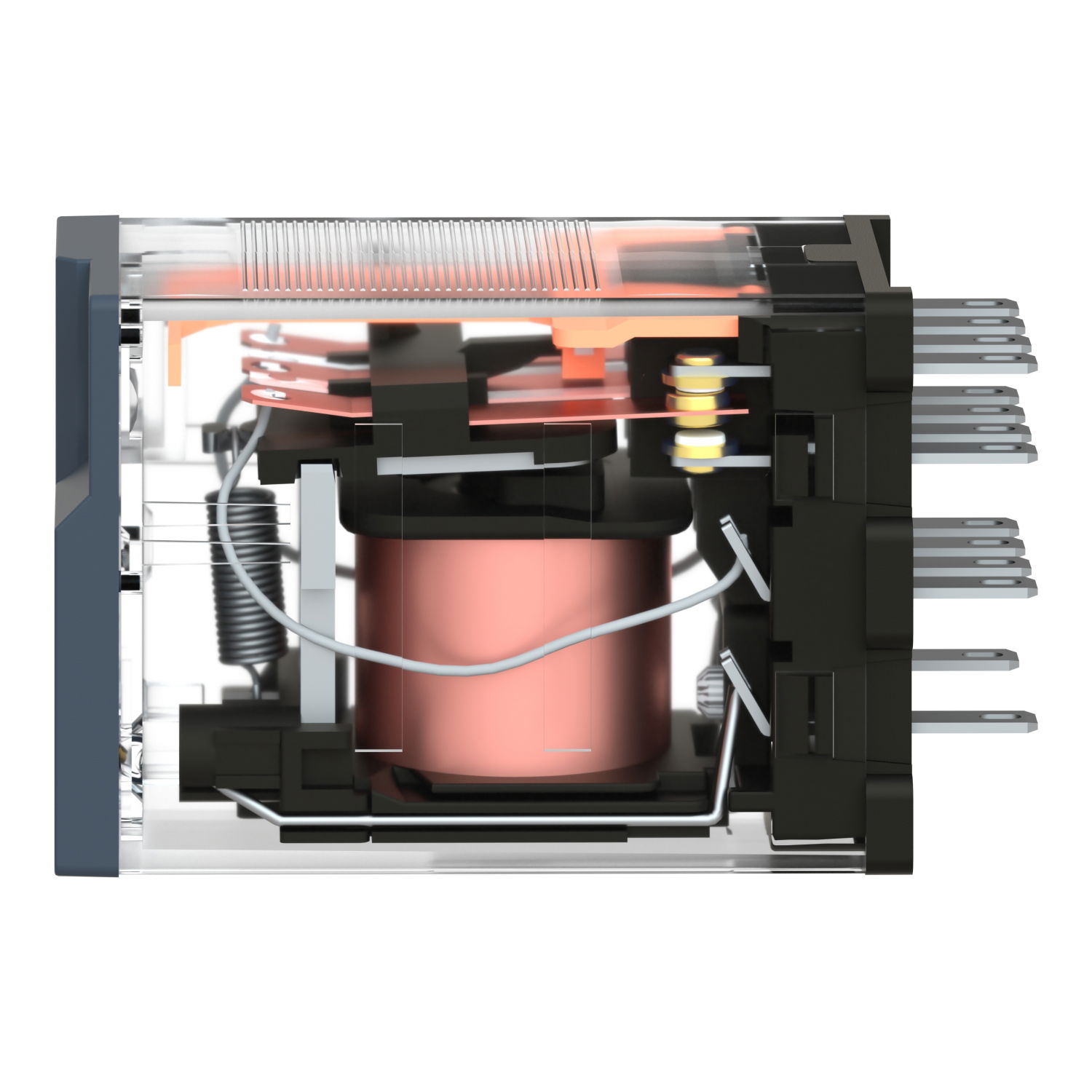

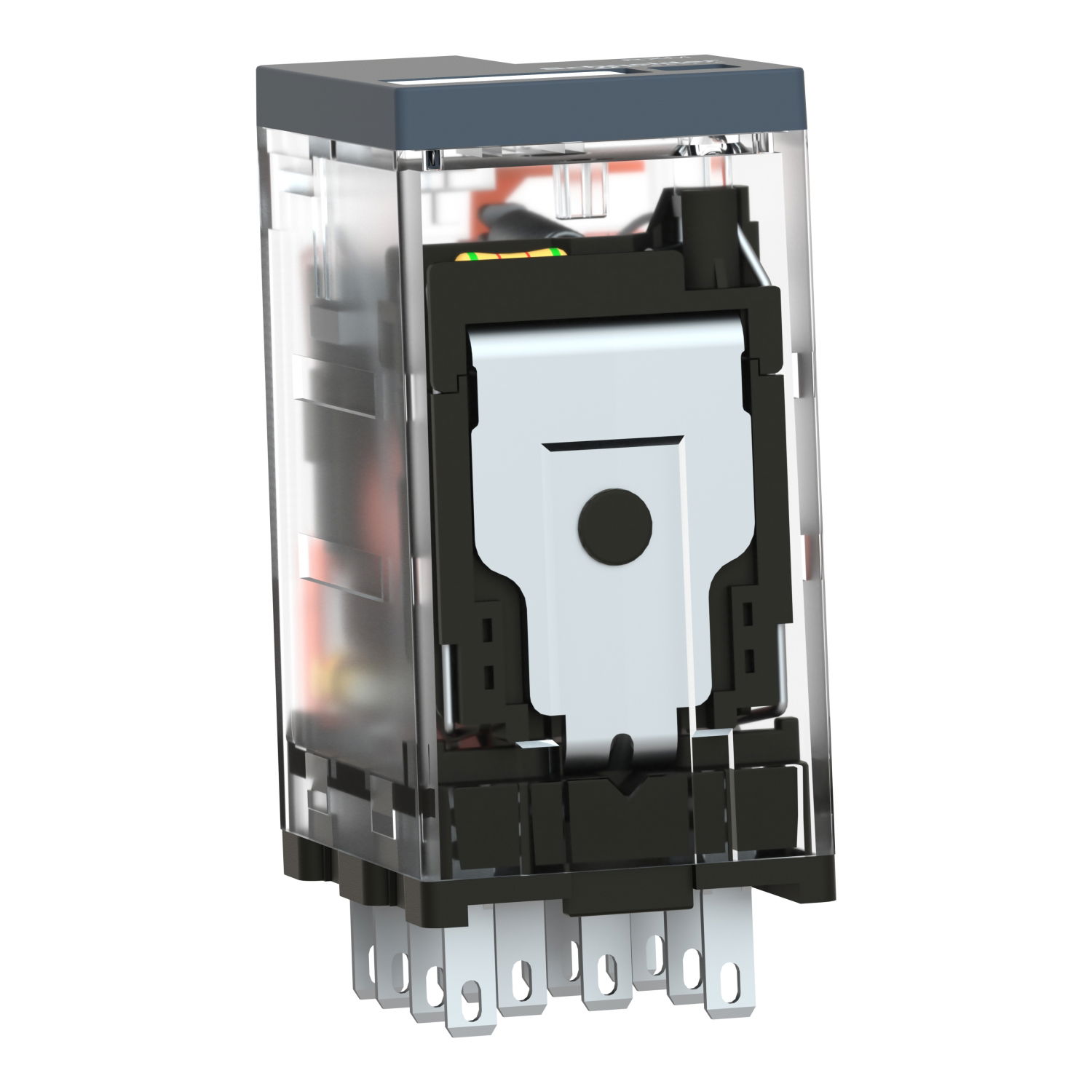

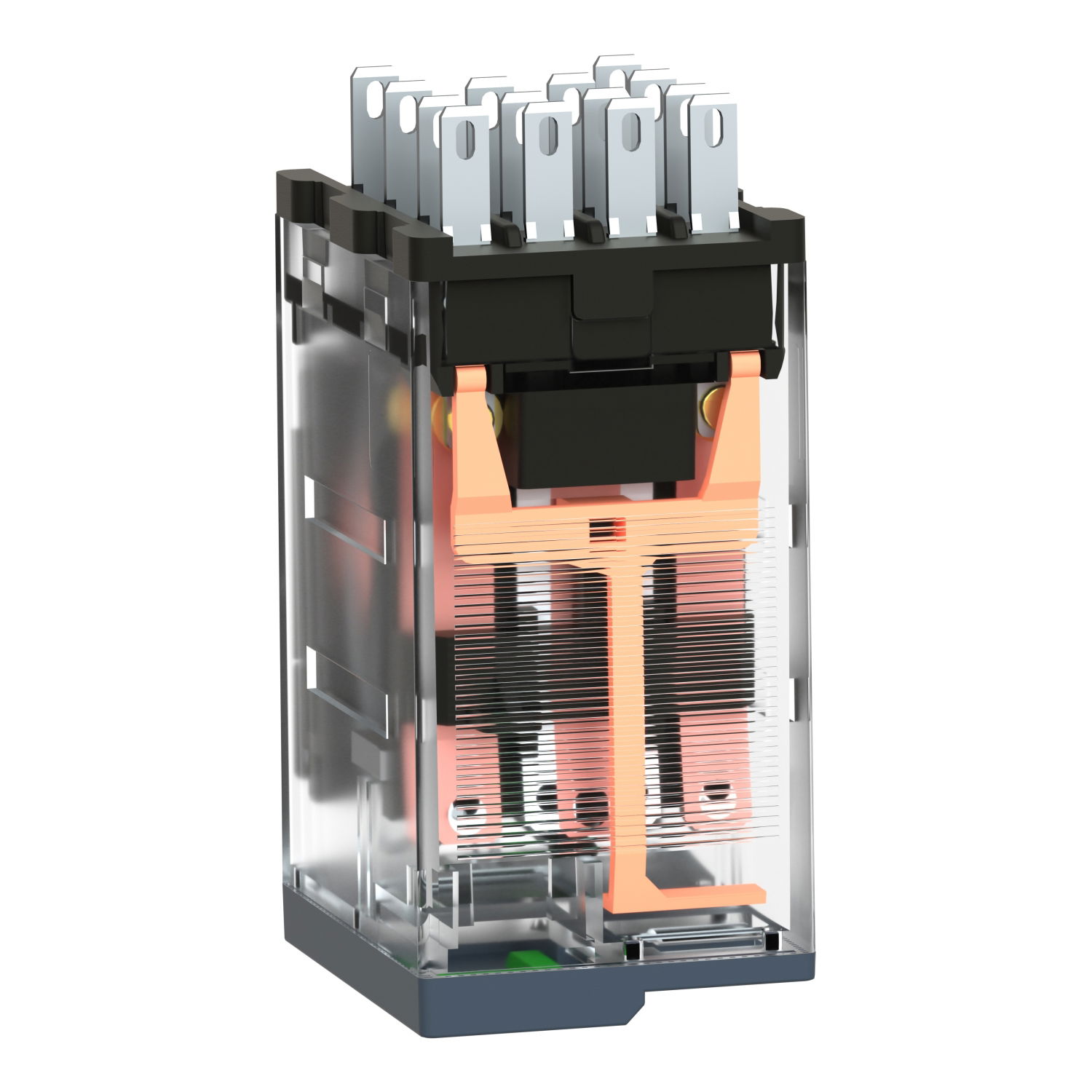

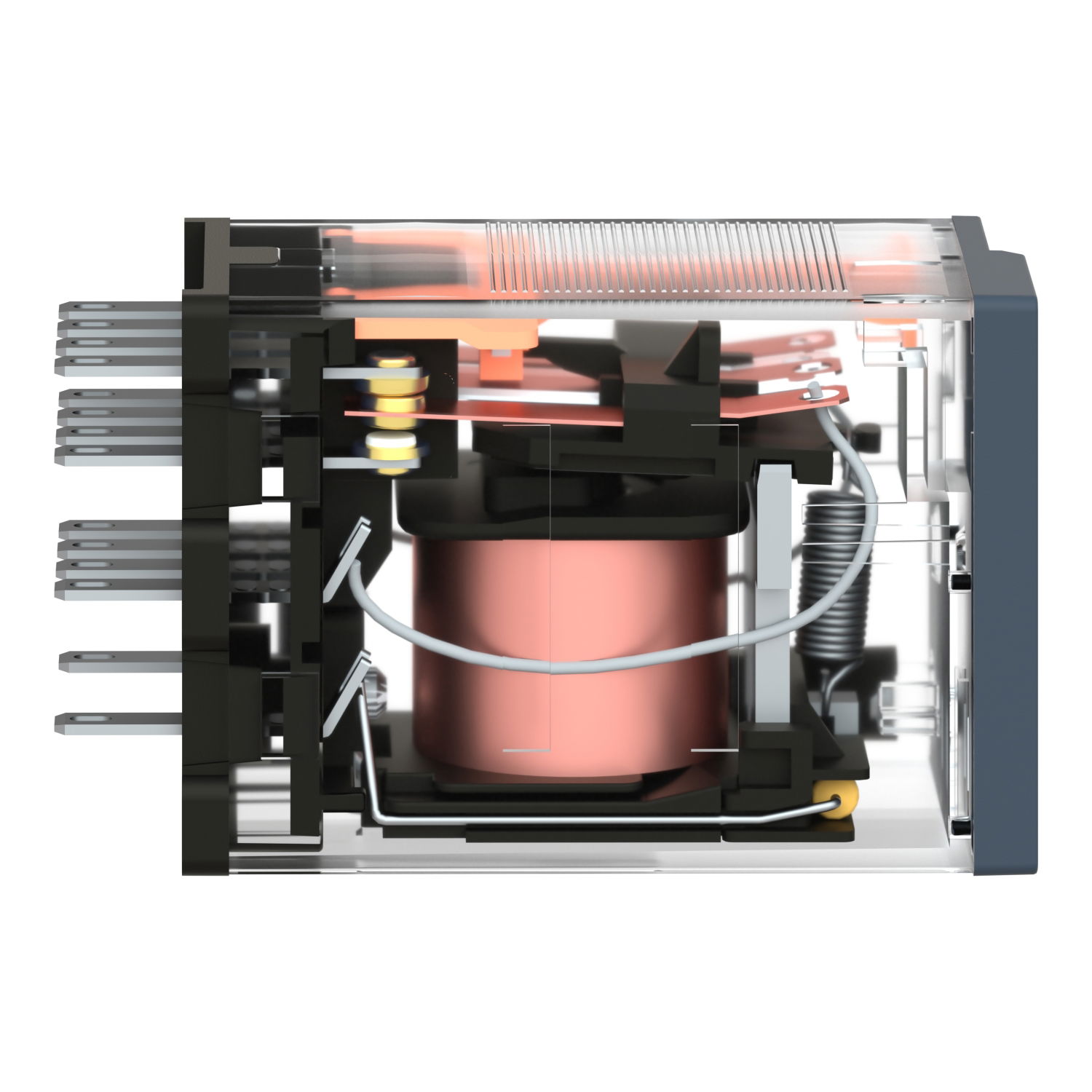

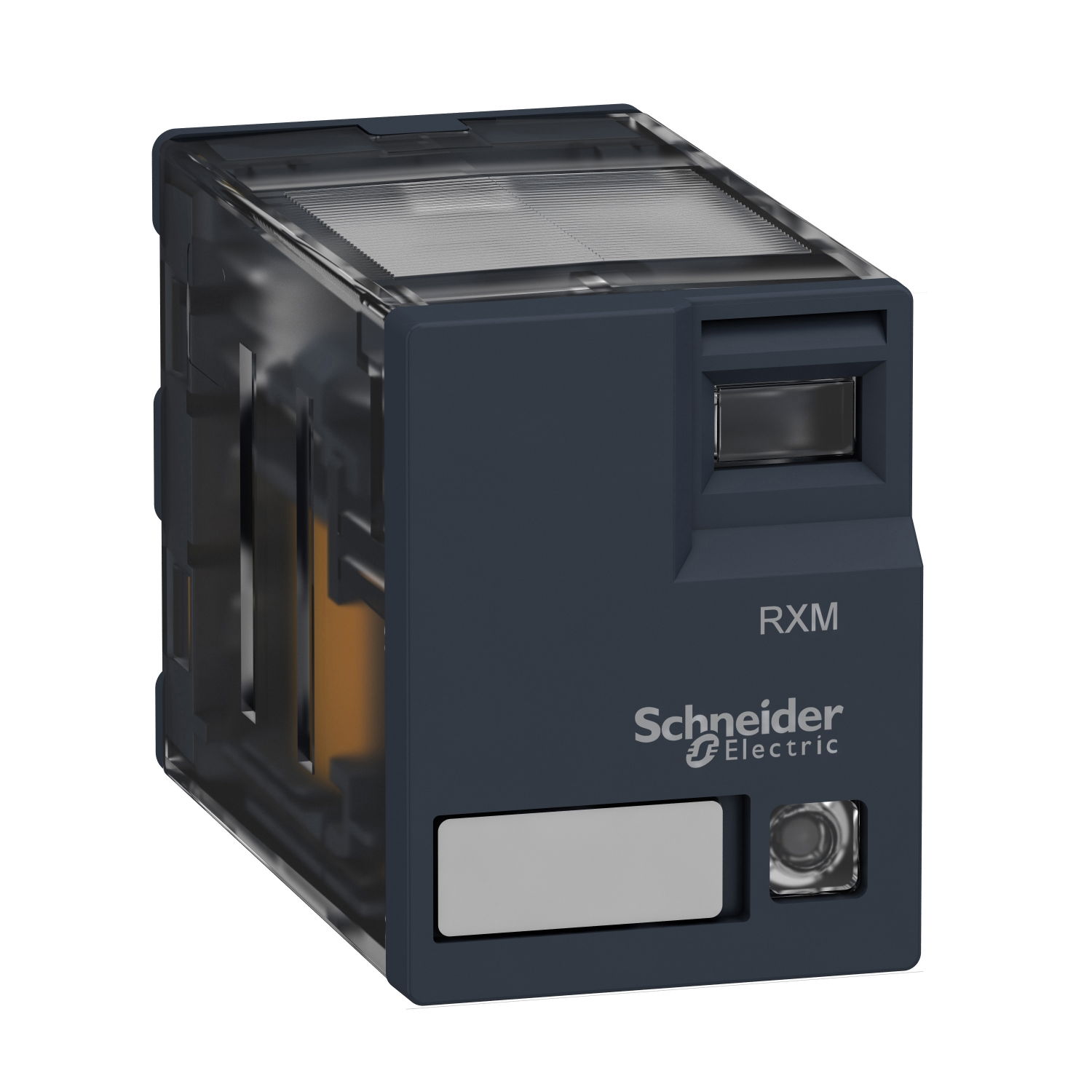

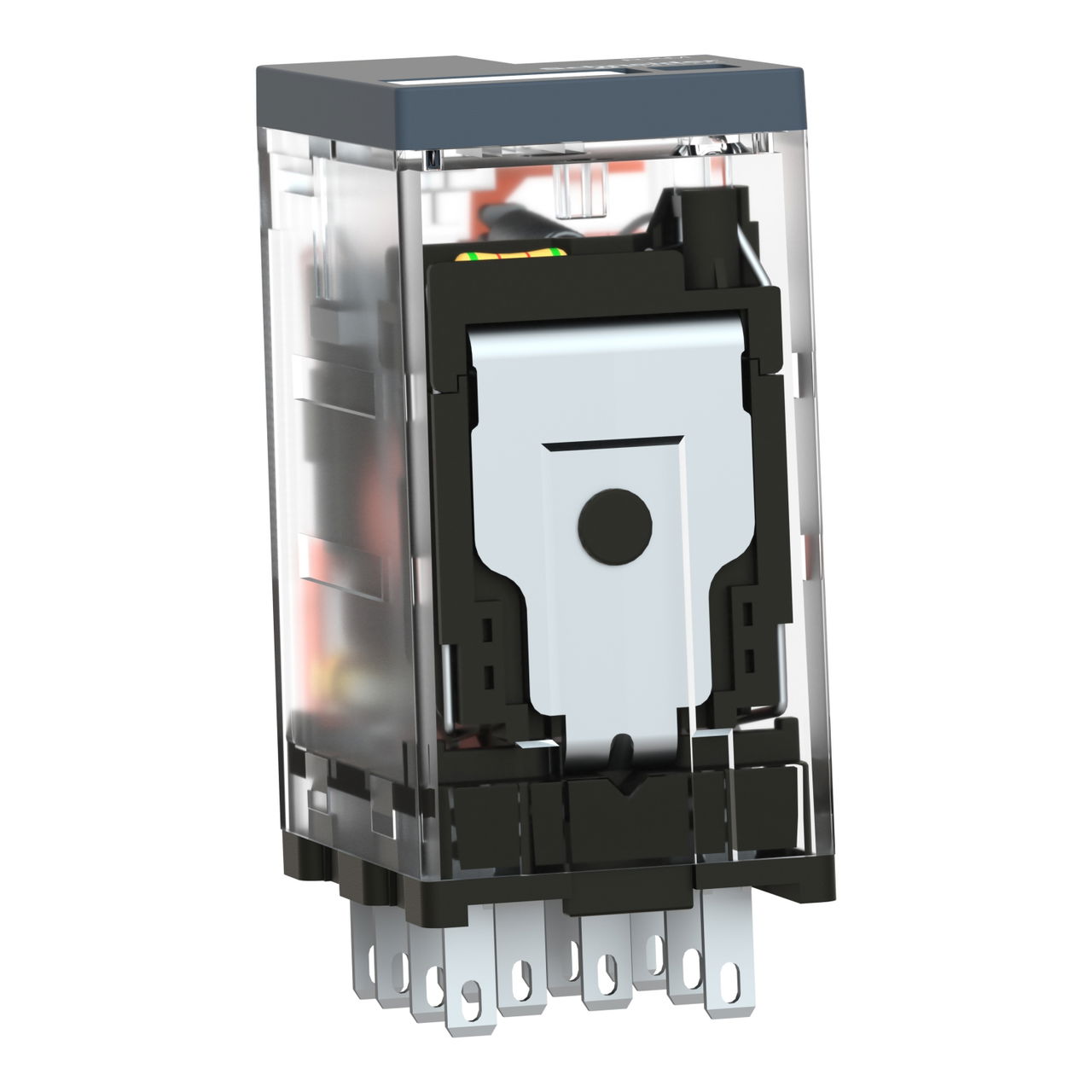

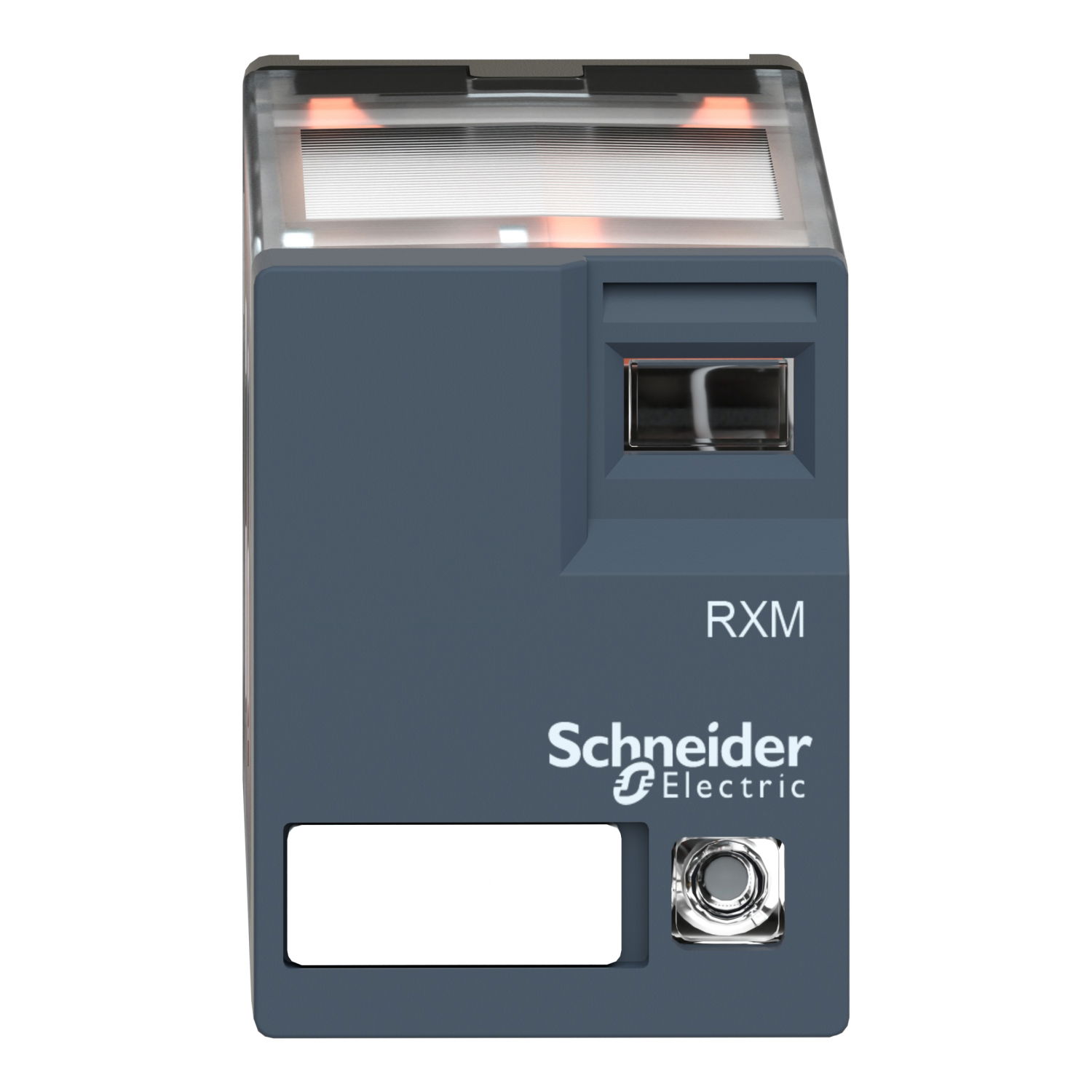

Miniature Plug-in relay - Harmony RXM 4 C/O 24 V DC 6 A with LED

Link copied
SKU
EAN
GTIN
MPN

Miniature Plug-in relay - Harmony RXM 4 C/O 24 V DC 6 A with LED by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 3 of them. Trade prices range from £4.97 to £9.10 excl. VAT. Voltimum+ members earn 1 point per unit.

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V DC. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 4.97 - £ 9.10 Excl. VAT

Specifications

Depth 55 mm
Width 21 mm
Height 27 mm
Nominal current 6 A
Material contact Other
Drive, polarization Polarity free
With LED indication yes
Complete with socket no
Max. starting current -
With detachable clamps yes
Drive, switching attitude Mono stable
Operating voltage AC 50 Hz
Voltage type for actuating DC
Type of electric connection Plug-in connection
Rated control supply voltage DC
Rated control supply voltage AC 50 Hz
Number of contacts as change-over contact 4
Number of contacts as normally closed contact 0
