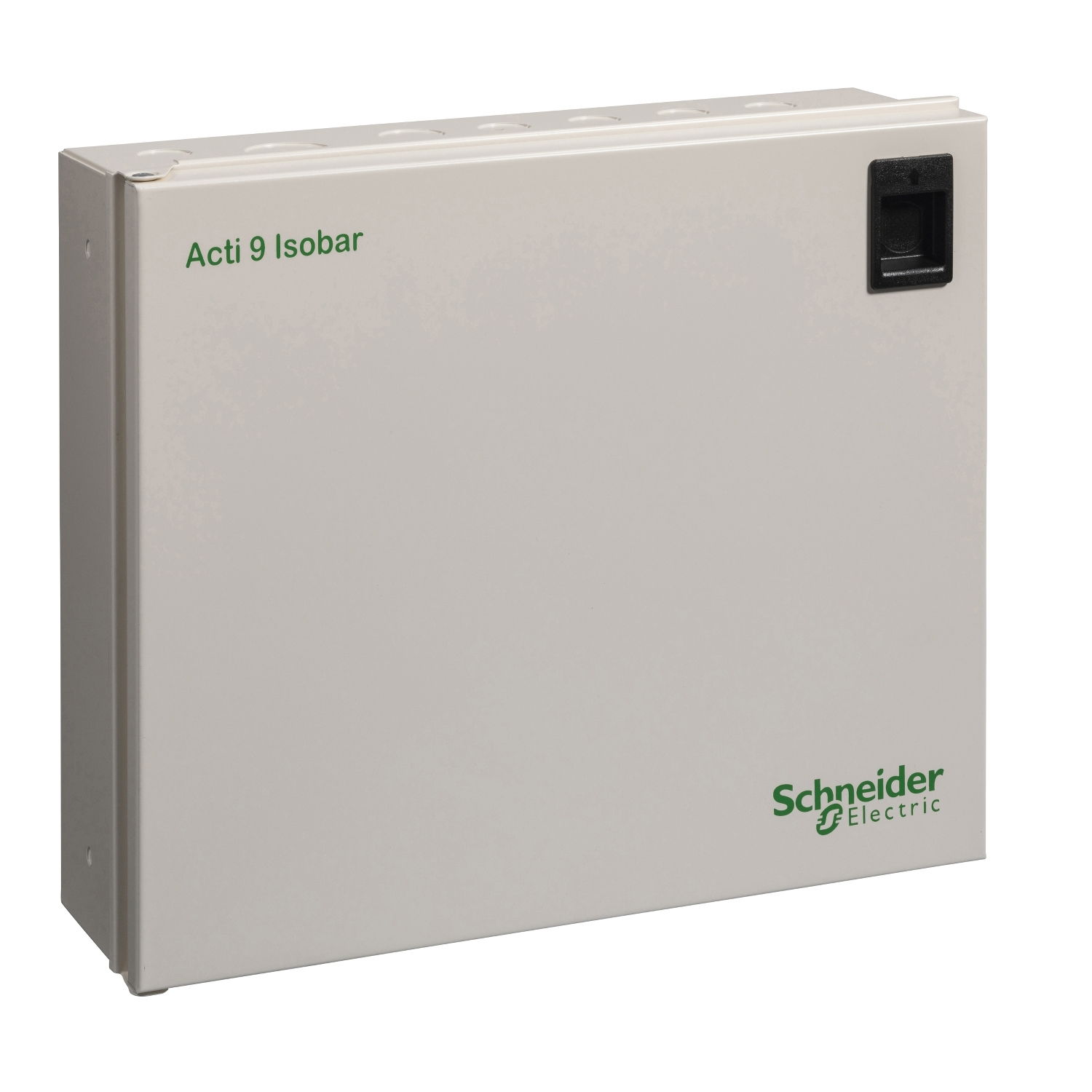

Acti9 Isobar A - din rail enclosure - 12 ways - steel

Acti9 Isobar A - din rail enclosure - 12 ways - steel

This Acti9 Isobar A product is a 1 horizontal row and 12 ways enclosure. It is suitable for standard, commercial and industrial applications. The dimensions are (W) 345mm x (H) 300mm x (D) 117mm. According to BS/EN 60529, the IP degree of protection is IP3x. The color of this distribution board is white (RAL9001).

Product identifiers

SKU: SEA9DE24
EAN: 5018934963280
GTIN: 5018934963280
MPN: SEA9DE24

V+ Loyalty points:

46

Price range: £ 91.71 - £ 128.65 Excl. VAT

Videos

Promotional video

Specifications

Depth 117 mm
Width 345 mm
Colour Other
Height 300 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block no
Earthing terminal block yes
Width in number of modular spacings 24
