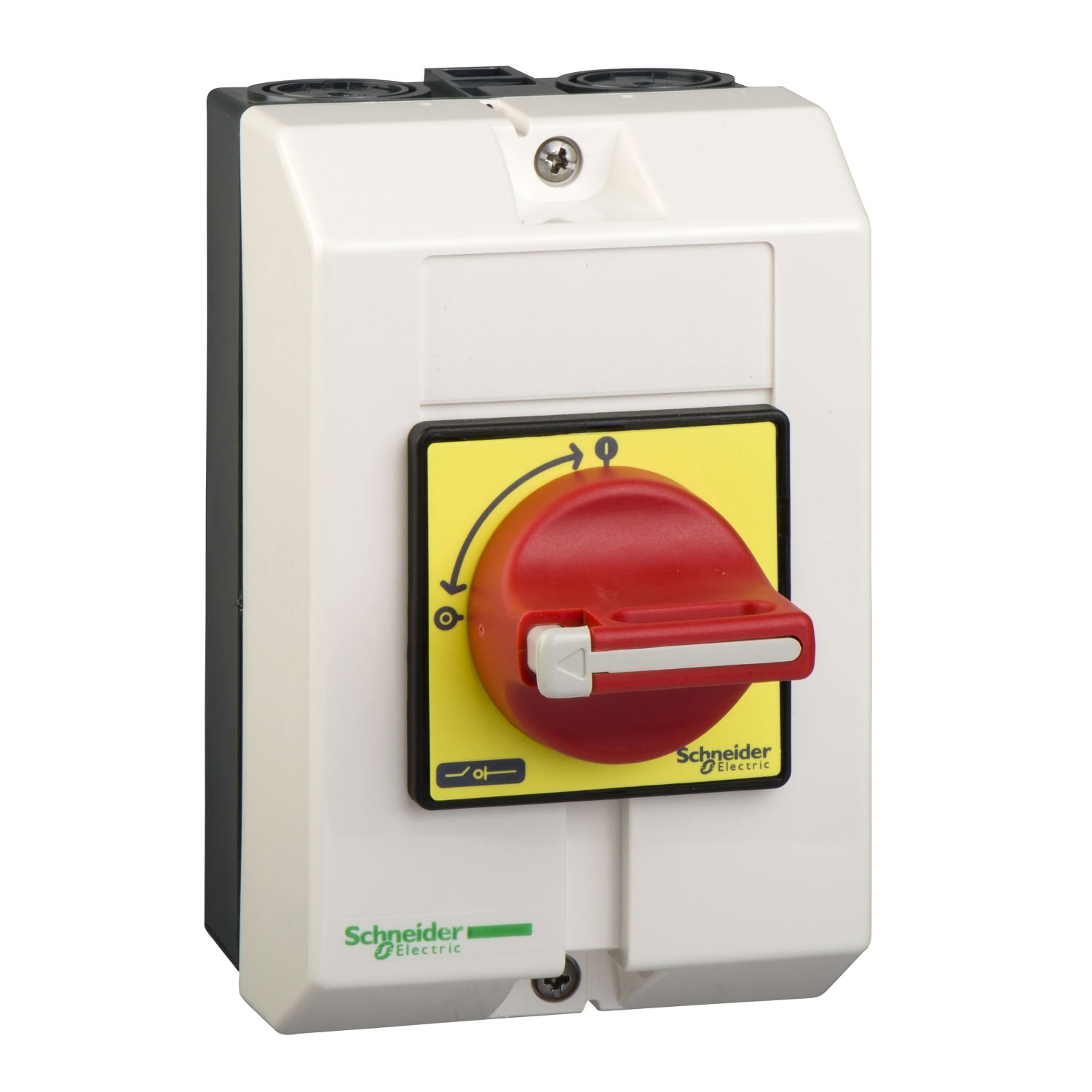

TeSys Vario enclosed, emergency switch disconnector, 20A, IP65
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 20A 690V, for main and emergency stop switching in motor applications AC-23 up to 7.5kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V0 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1,
Product identifiers
SKU: VCF0GE
EAN: 3389110194081
GTIN: 3389110194081
MPN: VCF0GE
Loyalty points:
21
Price range: £ 35.94 - £ 56.28 Excl. VAT
Categories
Features
|
Depth
|
131 mm
|
|
Width
|
90 mm
|
|
Height
|
146 mm
|
|
Interlockable
|
TRUE
|
|
Number of poles
|
3
|
|
Number of switches
|
1
|
|
Device construction
|
Complete device in housing
|
|
Motor drive optional
|
FALSE
|
|
Colour control element
|
Red
|
|
Motor drive integrated
|
FALSE
|
|
Version as main switch
|
TRUE
|
|
Rated operating voltage
|
|
|
Type of control element
|
Turn button
|
|
Switching power at 400 V
|
11 kW
|
|
Version as safety switch
|
FALSE
|
|
Voltage release optional
|
FALSE
|
|
Rated permanent current Iu
|
20 A
|
|
With pre-assembled cabling
|
FALSE
|
|
Degree of protection (NEMA)
|
-
|
|
Suitable for floor mounting
|
FALSE
|
|
Version as reversing switch
|
FALSE
|
|
Max. rated operation voltage Ue AC
|
690 V
|
|
Suitable for front mounting 4-hole
|
TRUE
|
|
Suitable for front mounting centre
|
FALSE
|
|
Suitable for intermediate mounting
|
FALSE
|
|
Width in number of modular spacings
|
-
|
|
Rated operation power at AC-3, 400 V
|
5.5 kW
|
|
Degree of protection (IP), front side
|
IP65
|
|
Rated operation power at AC-23, 400 V
|
7.5 kW
|
|
Rated short-time withstand current lcw
|
0.3 kA
|
|
Version as emergency stop installation
|
TRUE
|
|
Version as maintenance-/service switch
|
FALSE
|
|
Rated permanent current at AC-21, 400 V
|
20 A
|
|
Rated permanent current at AC-23, 400 V
|
57 A
|
|
Conditioned rated short-circuit current Iq
|
10 kA
|
|
Suitable for distribution board installation
|
FALSE
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Number of auxiliary contacts as change-over contact
|
0
|
|
Number of auxiliary contacts as normally open contact
|
0
|
|
Number of auxiliary contacts as normally closed contact
|
0
|
