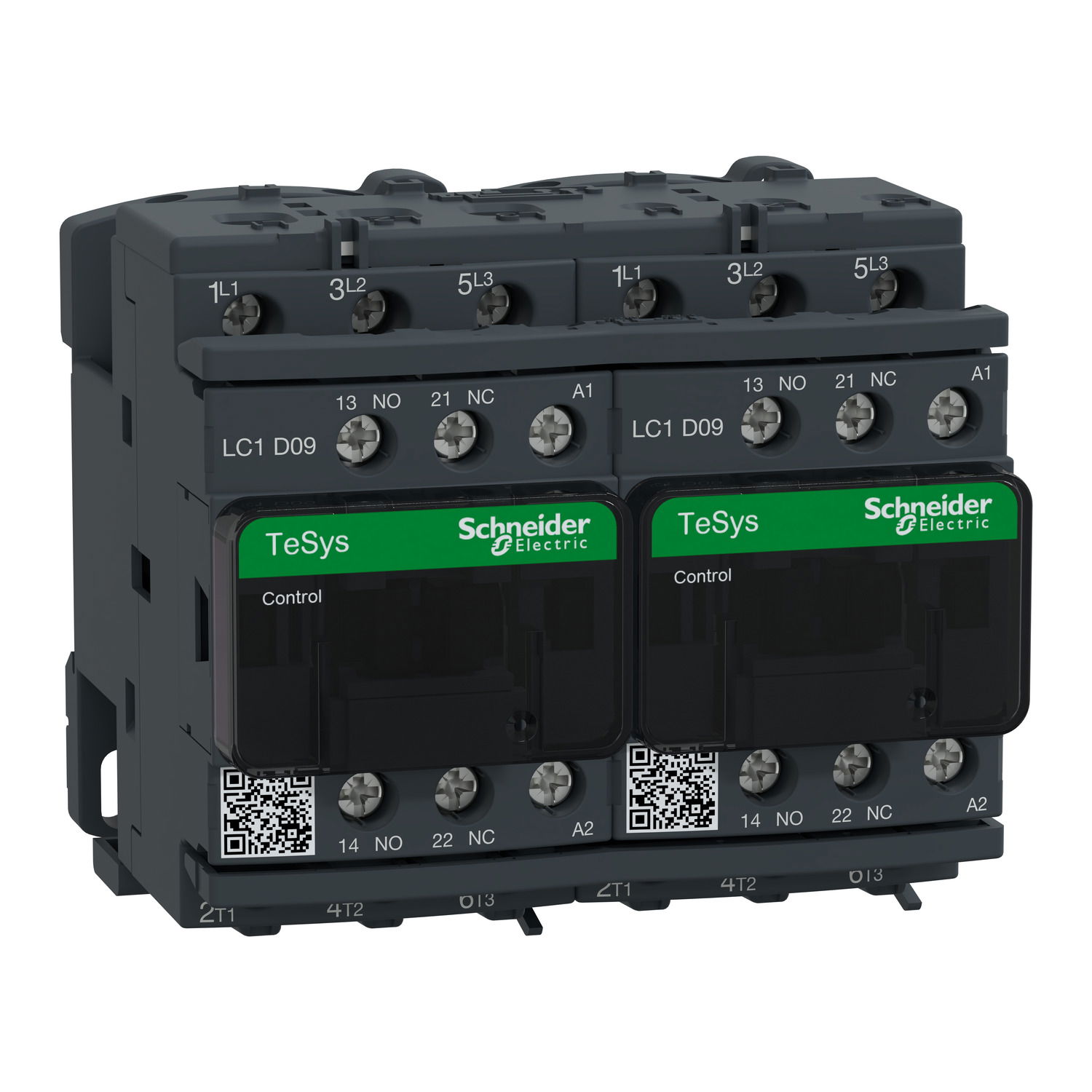

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 240 V AC coil
1 / 2
TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 240 V AC coil
TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 240 V AC coil by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £128.63 excl. VAT. Voltimum+ members earn 17 points per unit.
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/440V AC-3/3e (4kW@400V). It is provided with 240V 50/60Hz AC coils with integral transient suppressor modules, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. It is suitable for operating rates until 3600 cycles/hour and environment temperature until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC2D09U7V
EAN: 3389110408928
GTIN: 3389110408928
MPN: LC2D09U7V
Loyalty points:
17
Price: £ 128.63 Excl. VAT
ETIM group
Specifications
| Depth | 86 mm |
| Width | 90 mm |
| Height | 77 mm |
| Function | Reversing contactor |
| Operating voltage DC | |
| Degree of protection (IP) | IP20 |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz |
